Metal Roofing Cladding IBR Sheets Roll Forming Machine

Model:customized
Brand:Believe Industry
Origin:Made In China
Category:Industrial Supplies / Construction Machine
Label:IBR sheets machine , roof roll forming , metal roof machine
Price: US $18000 / set
Min. Order:1 set
Inquire Now Add to Basket

Member Information

Detail

Shanghai Believe Industry Co., Ltd

Free MemberShang Hai - China
Live Chat:
点击这里给我发消息Last Online:23 Nov, 2017

Product Description

Description:

IBR Sheets Roll Forming machine is widely used in South Africa. IBR is a square fluted profile with an effective covering width of 686mm designed for use as side cladding or roofing material in commercial, industrial and residential buildings. The name IBR is abbreviated from "Inverted Box Rib" and has became a household name in the South African Industry. The deep broad flute design offers excellent drainage characteristics combined with optimum weight versus load/span capabilities.

Application:

IBR roof sheets are available in a wide range of materials displaying various structural properties. It should be noted that the load span characteristics are only to be used as a broad guideline as purlin spacing is also dependant on other factors such as the prevailing winds in a certain area, snow during winter periods, the presence of dust and other particles in industrial areas, the type of structure that is being erected etc.. We therefore recommend that an engineer is consulted to determine the purlin spacing for a specific application.

Operation and Points That Need Attention:
The roof panel forming machine is totally controlled by PLC. Therefore, only by inputting related production data, such as number of products, length and punching dimension, users can start this machine to do manufacturing. If users want to adjust this machine or something else, they have to stop the machine first before carrying out relevant operation.

Maintenance and Lubrication:
Users have to regularly do lubrication for chains of chainwheel, bearings and speed reducer, etc. And the forming rollers should be kept clean.

Transportation and Packaging:
This kind of machine should adopt sea shipping by container and nude packing.

Parameters of the Machine:
1. Suitable material: coating rolled steel, galvanized sheet, etc.
2. Suitable thickness: 0.3-0.8mm
3. Forming specifications: depending on specific requirements of customers
4. Forming speed: 12-15m/min
5. Main motor power: 5.5Kw (depending on specific requirements of users)
6. Cutting mode: hydraulic cutting
7. Hydraulic station power: 3Kw (depending on specific requirements of users)
8. Control system: PLC systems from Mitsubishi and Panasonic products, electrical appliances of famous brands
9. Optional accessories: hydraulic uncoiler

As a professional manufacturer and supplier of roof panel forming machine, based in China. Believe industry mainly offers cold rolling mill, roll forming machine (guardrail forming machine, stud & track forming machine, etc), sandwich panel forming machine (EPS panel forming machine, PU panel forming machine), slitting line, cut to length line, radiator production line, curving machine, and hydraulic decoiler, etc. Located in Jiangsu Province, an hour drive from Shanghai City in China, we enjoy quite convenient transportation and can provide excellent service. We offer installation and deb ing services of our devices and staff training for factories abroad and OEM service. For more guides of roof panel forming machine, please contact us.


Payment Terms:TT 30% as deposit, 70% before shipment

Product Image

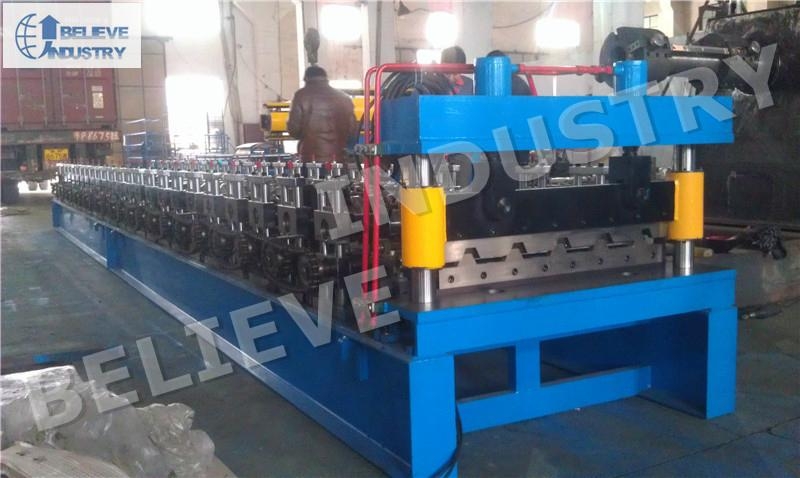

Metal Roofing Cladding IBR Sheets Roll Forming Machine 1
Img 1

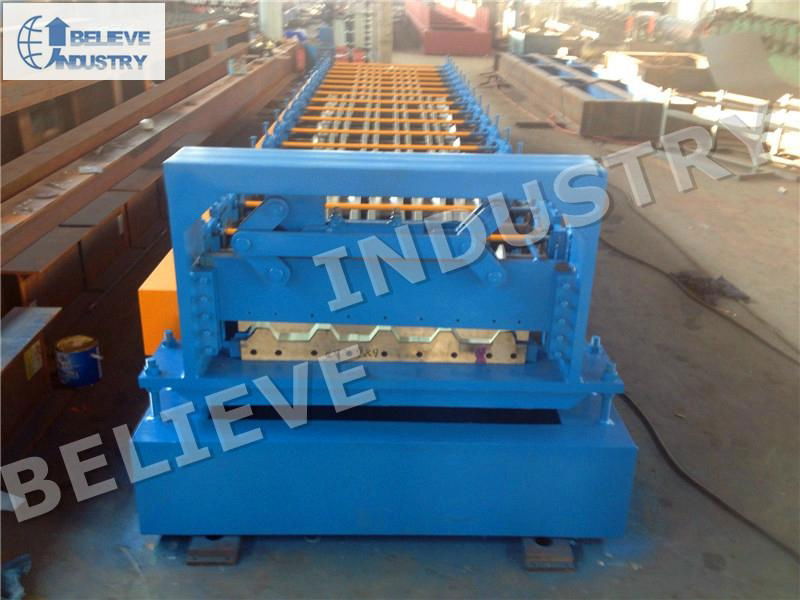

Metal Roofing Cladding IBR Sheets Roll Forming Machine 2
Img 2
