10W VHF or UHF Professional Fm Transceiver TC-WP10W

Model:TC-WP10W
Brand:HYS
Origin:Made In China
Category:Consumer Electronics & Lighting / Interphone & Pager
Label:10W 2WAY RADIO , 10W WALKIETALKIE , FM TRANSCEIVER
Price: US $50 / pc
Min. Order:2 pc
Inquire Now Add to Basket

Member Information

Detail

QUANZHOU TRUEST COMMUNICATION CO.,LIMITED

Biz MemberFu Jian - China
Live Chat:点击这里给我发消息Last Online:09 Sep, 2021

Product Description

◊16channels

◊ 10W/5W/2W Power Switch with Side-key operation

◊ Chinese/English Voice Announcement

◊ Wide/Narrow Bandwidth Selection 12.5KHz/25KHz

◊ CTCSS&DCS non-standard code

◊ Battery Saver

◊ Low Battery Alert

◊ Check battery capacity by handheld operation and will annouce the capacity in current status

◊ VOX on/off, VOX level setting, VOX delay time setting

◊ DTMF/PTT ID

◊ Busy Channel Lockout

◊ Scan, Auto scan, Priority Channel Scan, Scan Add, Scan Delete

◊ TX Power Level Adjustment by hand operation

◊ Monitor / Monitor Momentary

◊ Squelch level report, Squelch level adjustment

◊ TOT function

◊ Emergency Alarm

◊ 2 Tone/5 Tone

◊ Remote Kill,Stun,Activate&Revive

◊ Tail Tone Eliminate

◊ Auto Power Off

◊ Wire Clone

◊ PC Software Program




Technical Specifications:



General

Frequency Range

136-174MHZ/400-480MHZ/450-520MHZ

Channel Capacity

16 group

Frequency Spacing

25/12.5KHz

Working Voltage

7.4V

battery capacity

2800mAh Polumer Lithium battery

Frequency Stability

±2.5ppm

Operating Temperature Range

-25 °C to + 55°C

Antenna Impedance

50Ω

Dimension (L×W×H)

122 x 60 × 38mm

Weight (including Antenna and Battery)

232g

Transmitter(ETSI EN 300 086 standard testing)

Output power

10W

Modulation Mode

16KΦF3E / 8KΦF3E

Modulation Limited

±5KHz/±2.5KHz

Audio Distortion

≤5%

Residual frequency modulation

-45dB/-40dB

Adjacent Channel Power

-70dB/-60dB





Product Image

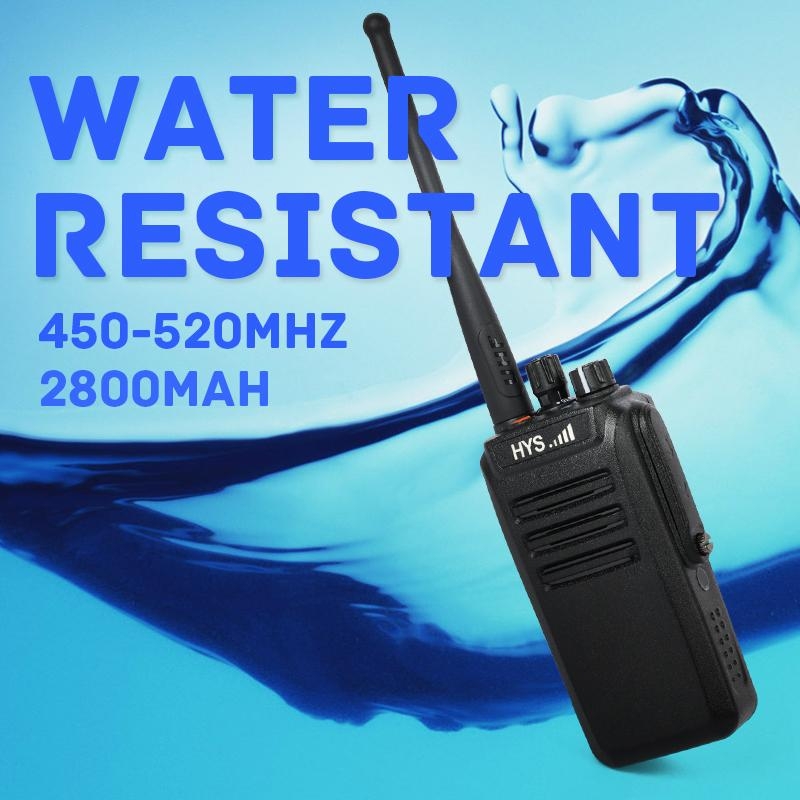

10W VHF or UHF Professional Fm Transceiver TC-WP10W 1
Img 1

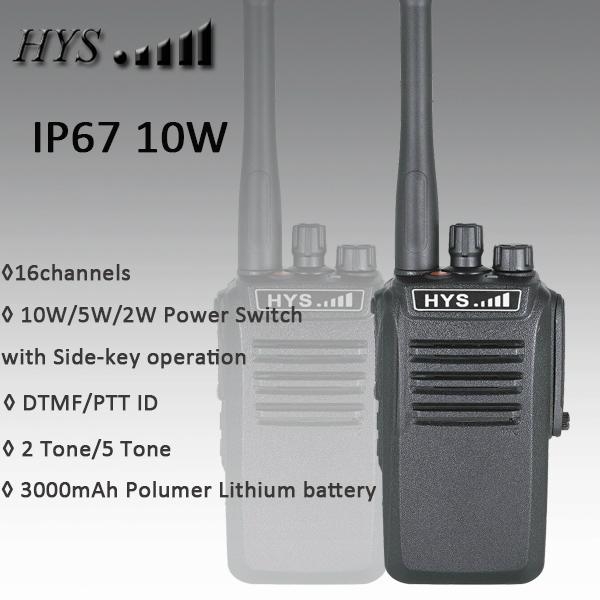

10W VHF or UHF Professional Fm Transceiver TC-WP10W 2
Img 2

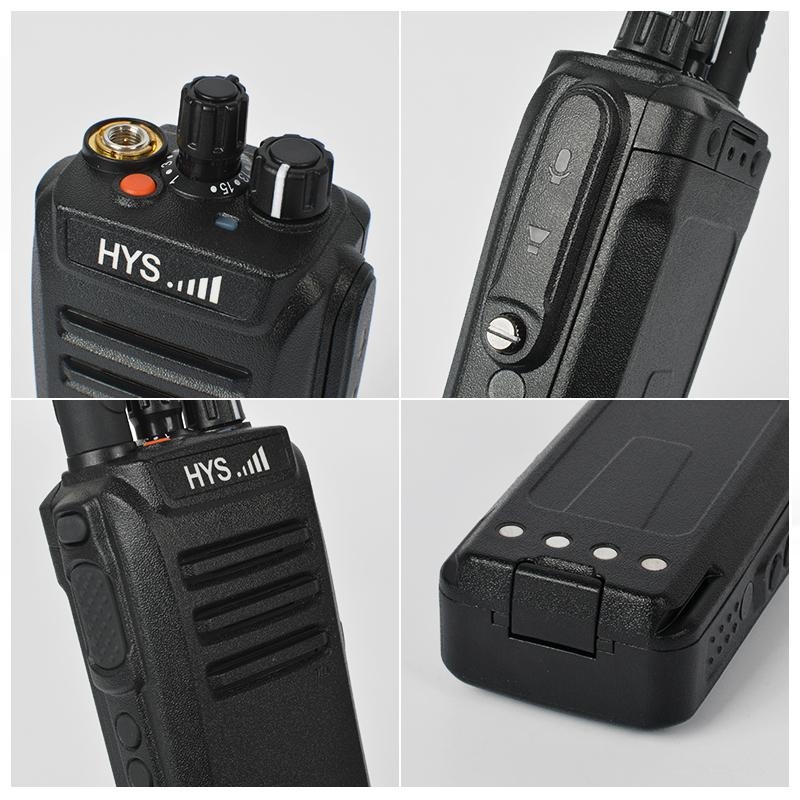

10W VHF or UHF Professional Fm Transceiver TC-WP10W 3
