60W VHF,UHF Mobile Radio TM-8600

Model:TM-8600
Brand:HYS
Origin:Made In China
Category:Consumer Electronics & Lighting / Interphone & Pager
Label:MOBILE RADIO , TAX TWO WAY RADIO , UHF MOBILE RADIO
Price: US $135 / pc
Min. Order:1 pc
Inquire Now Add to Basket

Member Information

Detail

QUANZHOU TRUEST COMMUNICATION CO.,LIMITED

Biz MemberFu Jian - China
Live Chat:点击这里给我发消息Last Online:09 Sep, 2021

Product Description

Frequency Range: VHF:136-174MHz 245-245.9875MHz (220-260MHz)

UHF: 400-490MHz

Output Power: VHF: 10W/25W/60W

UHF: 45W/25W/10W

1750Hz Tone

CTCSS/DCS setting & scanning

0-9 SQL grade setting

Frequency/Channel scanning

High/Mid/Low power selectable

Voice compander

Repeater offset shift

Keypad lock function

Contact book

Battery voltage display

DTMF/2 tone/5 tone

ANI ID

Remote kill/ stun/ activate/ revive

Emergenvy alarm

Wide/Narrow band setting

TX inhibit

Busy Channel Lock-Out

Channel name editing

Reverse frequency

Talk around

Scrambler(Optional)

Voice prompt

Time-out Timer

Auto Power off

VFO step setting:5/6.25/10/12.5/20/25/50kHz



Specification:



Model

TM-8600

General

Frequenvy Range

136-174/245-246/400-490MHz

Channel Capacity

200

Channel Spacing

5/6.25/8.33/10/12.5/15/20/25/30/50KHz

Freruency Stability

2.5ppm

Operating Temperature

-20°C ~ + 60°C

Operating Voltage

13.8V DC ± 15%

Dimension(HxWxD)

145mm x190mm x47mm

Weight(with bracket)

1200g

Receiver

Reference Sensitivity

0.25V / 0.35V

Operating Bandwidth

60dB 12.5KHz /70dB 25KHz

Adjacent Channel Selectivity

60dB 12.5KHz 70dB 25KHz

Inter-modulation Rejection

≥60dB/ ≥65dB

Spurious Response Rejection

≥70dB

Rated Audio Response

+1-+3dB

Rated Audio Distortion

<5%

FM Hum&Noise

≥40dB 25KHz /≥45KHz 12.5KHz

Transmitter

RF Power

45W/25W/10W(UHF)/60W/25W/10W(VHF)

Frequency Modulation

11kΦF3E / 16kΦF3E

Modulation Distortion

<5%

FM Noise

≥36dB 25KHz /≥40KHz 12.5KHz

Adjacent Channel Power

≥60dB 12.5KHz /≥70KHz 25KHz

Audio Response

+1-+3dB

Audio Distortion

<5%


Payment Terms:WESTERN UNION,T/T ,PAYPAL

Product Image

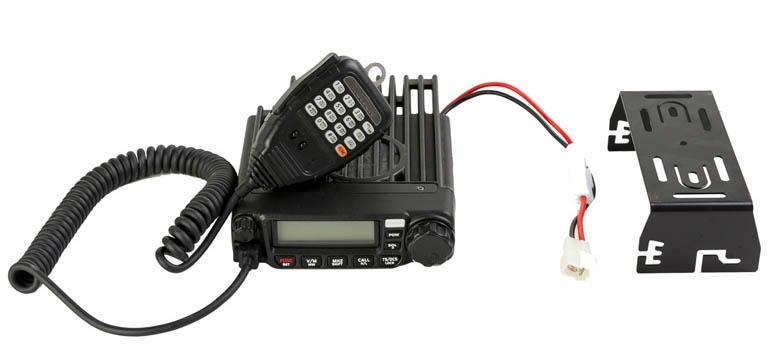

60W VHF,UHF Mobile Radio  TM-8600 1
