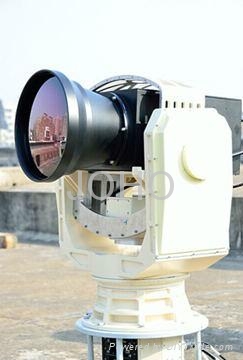

                      Long Range Surveillance IR Thermal Imaging Camera JH1100-640/JH1100-320

JH1100-series super long range thermal camera is equipped with a top-end mid-wave cooled HgCdTe thermal camera with super-long continuous zoom lens which offers extremely long range detection in all weather conditions. It is able to be used separately for observation, surveillance and monitoring combat situation, as well as able to be integrated into EO (electro-optical)/IR tracking system for super-long observation, surveillance and tracking target.

FEATURES AND BENEFITS

• 1100mm lens ensure extremely long-range detection
• Continuous zoom satisfies multi-mission
• Multi-algorithm-mode ensures high quality image under different application environment
• Hermetically sealed housing and filled in nitrogen gas ensure
• Easy to be integrated into EO/IR tracking system

TECHNICAL SPECIFICATION
DETECTOR PARAMETERS
Detector type Cooled HgCdTe FPA
Spectral band 3~5um
Pixel 640X512 320X256
Pitch 15umX15um; 30umX30um
NETD < =25mK; < =15mK
Cool down time < =8min at 20C
OPTICS PARAMETERS
Focus length 110~1100mm continuous zoom (F# 4)
Lens diameter 310mm
FOV 0.5deg(H)× 0.4deg(V)~5deg(H)× 4deg(V) (continuous zoom)
Output signal standard CCIR and digital 12 bit bus (RS422)
ENVIRONMENTAL PARAMETERS
Operating temperature -20C~60C
Storage temperature -40C~65C
ELECTRIC PARAMETERS
Video interface 1-way PAL
Communication interface RS422 or RS232
Power supply DC24V
Power consumption < =35W < =28W
PHYSICAL PARAMETERS
Weight 610 mm (L) X400 mm (W) X310 mm (H)
Dimension < =15kg
