Gyro Stabilized EO IR Thermal Imaging Tracking Camera System

Model:IRS3000
Brand:Wuhan JOHO
Origin:Made In China
Category:Security & Protection / Surveillance Equipment
Label:thermal imaging , Gyro stabilied , EO IR tracking camer
Price: US $1 / pc
Min. Order:1 pc
Inquire Now Add to Basket

Member Information

Detail

Wuhan JOHO Technology Co., Ltd

Free MemberHu Bei - China
Live Chat:Last Online:13 Sep, 2022

Product Description

Navigation Assistant EO/IR Thermal Imaging Search and Tracking System IRS3000

Applications

  • Patrols vessels
  • Coast Guard
  • Long-range surveillance
  • Early detection of potential security threats

Features

  • Long-range Cooled Thermal Camera
  • High-definition day camera
  • Gyro stabilization system to track target in marine environment
  • Long-range laser range finder up to 12km
  • Military sealed protection for long term operation



Technical specification

  • Thermal Camera
  • Detector: Cooled MWIR HgCdTe FPA
  • Pixel: 320x256 , 30µm
  • FOV: WFOV: 16.5 º×0.88 º/MFOV: 5 ºx4º
  • NFOV: 1.1 ºx0.88º
  • Video: CCIR, external synchronization
  • HD-CCD camera
  • Type: 1/3’’ color analog HD-CCD
  • Focal length: 23~500mm continuous
  • Laser Range Finder (optional)
  • Ranging: 160m~12km (5mx5m target)
  • Accuracy rate: ±5m
  • Tracking servo mechanism
  • Pan Searching Scope: ±170° (optional 360°continuous)
  • Tilt Searching Scope: -15°~ +150°
  • Stabilization Precision: 0.2mrad (0ptional: 0.1mrad)
  • Environmental parameters
  • Operating temperature: -40°C to +60°C
  • Storage temperature: -45°C to +75°C
  • Environmental resistant: GJB150 (Humidity, sand/dust, ice/freezing rain, shock and vibration) Weatherized pan & tilt unit sealed for the Marine Environment
  • Power system
  • Power supply: DC18V-36V (Typical: 24V)
  • Power consumption: ≤200W,  Peak value≤800W

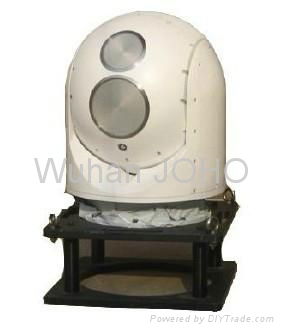

Product Image

Gyro Stabilized EO IR Thermal Imaging Tracking Camera System  1
Img 1
