| Model: | LC-MI1501ET-5R |
|---|---|
| Brand: | Anrecson |
| Origin: | Made In China |
| Category: | Electronics & Electricity / Other Electrical & Electronic |
| Label: | industrial monitor , touchscreen LCD , embedded mount |
| Price: |
-
|
| Min. Order: | 1 pc |
| Live Chat: | Last Online:20 Jun, 2016 |
|
Specification |
|
|
15"Touch Industrial Monitor |
|
|
Mode Name |
LC-MI1501ET-5R |
|
Screen Size |
15" |
|
Active Display Area (mm) |
304.128mm(W)×228.096mm(H) |
|
Display Mode |
4:3 |
|
LCD Type |
TFT-LCD |
|
Resolution |
1024×768 |
|
Display Color |
16.7M |
|
Pixel Pitch(mm) |
0.297(H)×0.297(V) |
|
Brightness(nits) |
350cd/m² |
|
Contrast Ratio |
700:1 |
|
Viewing Angle |
140(H) /125(V) |
|
Response Time |
4ms |
|
Backlight |
LED |
|

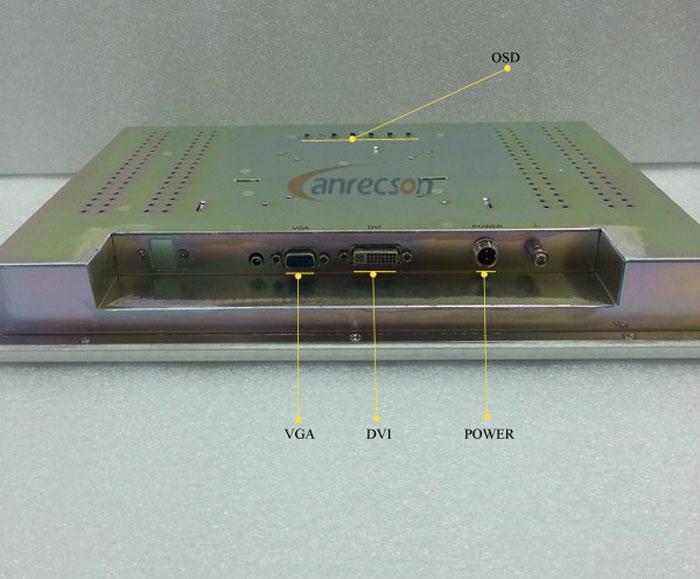

Interface |
D-Sub15 pin(VGA),DVI,HDMI |
|
Power |
DC12V 4A 50HZ/60HZ/70HZ |
|
Power Consumption |
≤35W (Max) |
|
Plug & Play |
DDC 1/2B |
|
OSD Control |
Auto adjust, Brightness, Contrast, Hori. / Vert. Position, Clock, phase, Color, Language.. |
|
MENU |
Chinese/English(other languages supported) |
|
Mount Method |
|
|
Mounting |
Embedded Mount |
|
Optional Mounting Way |
VESA 75mm/100mm |
|
Touch Type |
|
|
TouchScreen Type |
Resistive(5-wire) |
|
Optional TouchScreen Type |
SAW, IR ,Capacitive |
|
TouchScreen interface |
Serial (RS232) or USB(B) |
|
Certificate Approval |
CE,RoHS,CCC,FCC,ISO9001 |
|
Warranty |
1.5 years |
|
Application |
|
|
ATM/ Kiosk/Transportation/ Industrial Automation/Medical Treatment |
|
