| Model: | WF30 16mm |
|---|---|
| Brand: | Graigar or OEM |
| Origin: | Made In China |
| Category: | Electronics & Electricity / Electronic Instrument / Analysis Instrument |
| Label: | Color analyzer , Portable Colorimeter , WF30 16mm |
| Price: |
US $1700
/ pc
|
| Min. Order: | 1 pc |
| Live Chat: | Chat Now | Last Online:19 Sep, 2022 |

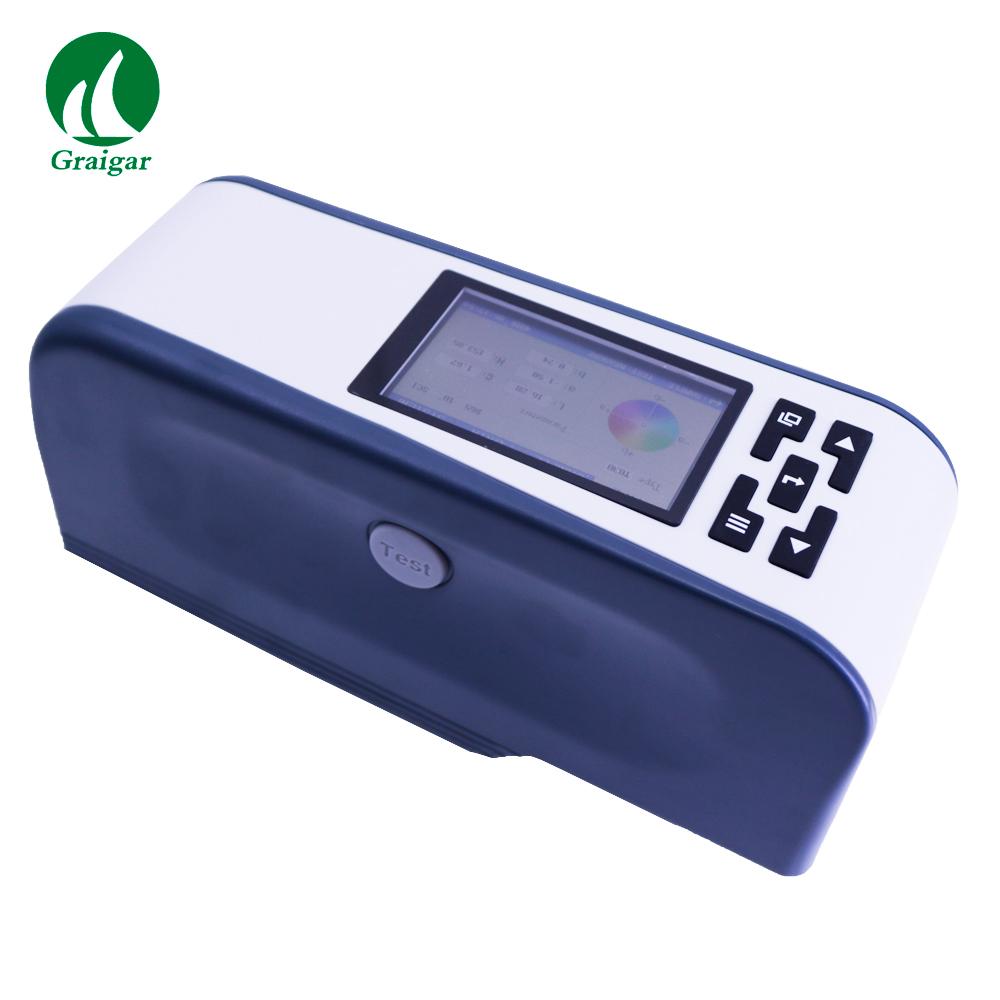

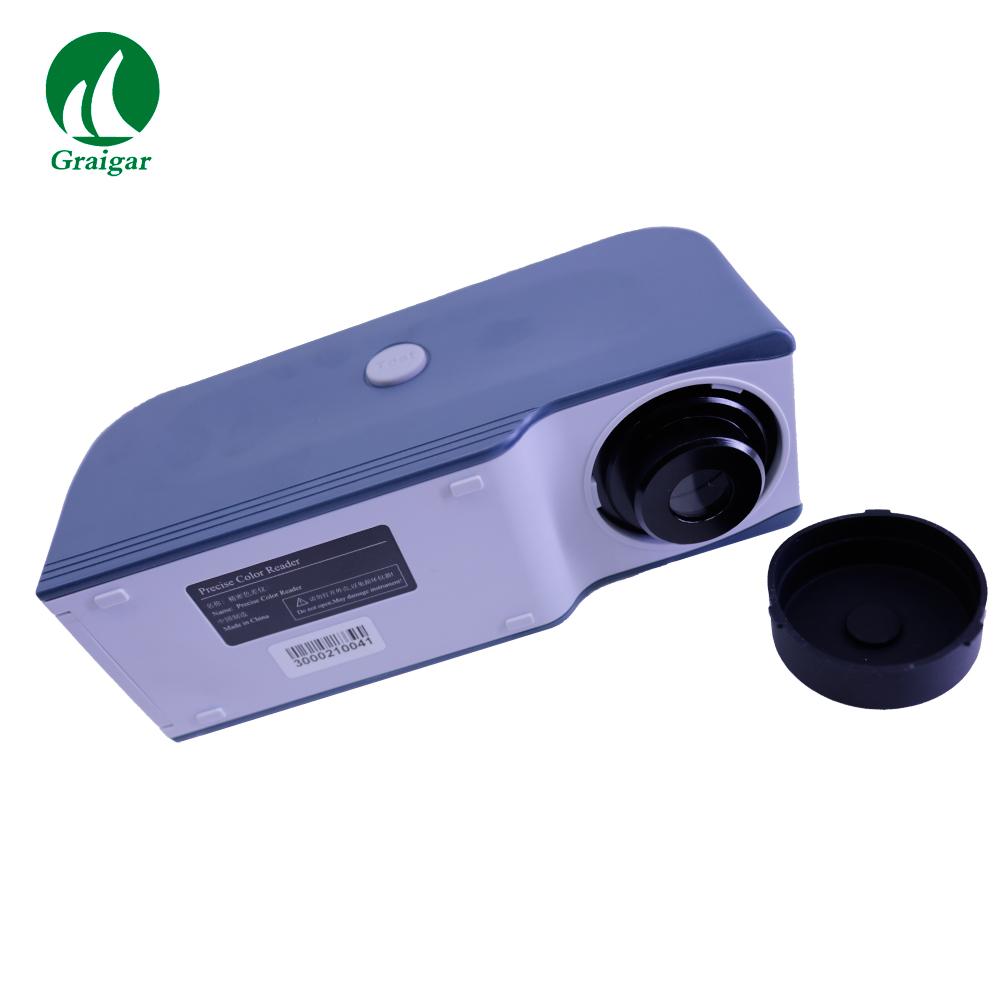

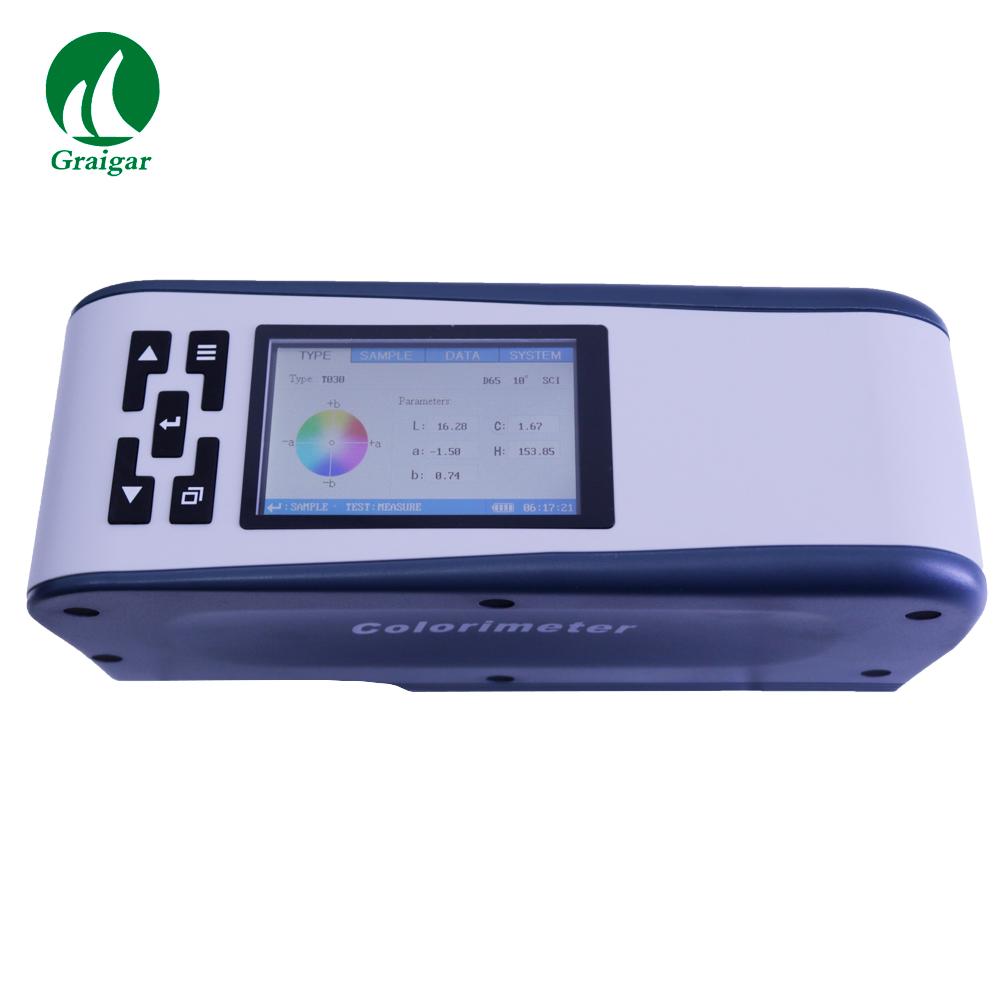

Precision colorimeter WF30 is a professional R & D and production of national standards based on the relevant standards of the International Commission on Illumination CIE colorimeter. The chromatic meter adopts the brand-new imported key components, through elaborate design, stable precision, simple operation and easy to understand, economical and practical characteristics.
|
WF30 Precise Colormeter |
|
|
Model Number |
WF30 |
|
Display mode |
CIE L*a*b* |
|
Color difference formula |
ΔE *ab |
|
Illumination Condition |
CIE 8/d |
|
Light Source |
The LED blue light stimulate |
|
Sensor |
Photodiode array |
|
Measuring Aperture |
Φ8mm/ Φ4mm |
|
Measuring Condition |
CIE 10°standard observer CIE D65 light source |
|
Measuring Range |
L:0-100 |
|
Repeatability |
ΔE <0.5 (Test the whiteboard 30 times take its deviationaverage) |
|
Instrument platform difference |
ΔE <0.2 |
|
Measurement Time |
0.5 second |
|
Storage Capacity |
100 standard samples and 20000 test sample |
|
Battery Power supply |
5000 times |
|
LamP life |
5 years more than 160 million measuring |
|
Display screen |
TFT True color 2.8 inch@(16:9) |
|
Interface |
B shape USB RS-232 Baud rate 115200bps |
|
Operate Temperature |
0°C-40°C (32°F-104°F) |
|
Storage Temperature |
-20°C-50°C (-4°F-122°F) |
|
Humidity Range |
Below 85% humidity no moisture condensation |
|
Net Weight |
700g |
|
Demension |
199x68x90mm |
|
Demension after package |
390x220x340mm |
|
Standard Accessory |
Power Adapter, lithium battery, instruction book |
|
Optional Accessory |
Miniprinter Powder checkerboard |
1.Through the SCM test
2.Simple, accurate, easy-to-use, convenient
3.Analysis the best assistant of the color, the simplest operation chromatic meter
4.Chromaticity diagram, color difference bias Figure directly imply larger font display, be clear at a glance
5.The design of human engineering mechanics
6.High repeat accuracy: ΔE <0.07 7.Through National Metrology (SCM)
8.Advanced Power Management
