TUF-2000H Ultrasonic Flow Meter Flowmeter With TM-1 TS-2 Sensors transducer

Model:TUF2000H
Brand:Male BSPP Thread
Origin:Made In China
Category:Electronics & Electricity / Electronic Instrument / Analysis Instrument
Label:Ultrasonic Flowmeter , TUF-2000H , Flow Meter
Price: US $500 / pc
Min. Order:1 pc
Inquire Now Add to Basket

Member Information

Detail

Shenzhen Graigar Technology Co., Limited

Biz MemberGuang Dong - China
Live Chat: Chat Now
点击这里给我发消息Last Online:23 Nov, 2022

Product Description

TUF-2000H Ultrasonic Flow Meter Flowmeter With TM-1 TS-2 Sensors transducer

Advantages:

High accuracy measuring: Accuracy: ±1%, linearity: 0.5%, repeatability: 0.2%

Wide measuring range: DN15~DN6000

Large capacity battery: Ni-MH battery, operate over 12 hours

Non-intrusive measuring: clamp on transducer, no pressure drop

Support multiple language menu: Chinese, English, Italian and other language can be customized.

Large LCD display: show varieties of results like accumulated flow rate, velocity, working status etc.

Built-in data logger: store over 2000 lines measuring data



Standard Packing:

1. TUF-2000H Ultrasonic Flowmeter

2. HS Mounting Bracket Transducer

3. Signal cable

4. Data cable

5. Fixed bandage

6. Charger

7. Carring box



Specification

Ultrasonic Flow Meter/ultrasonic flowmeter/flowmeter
Hand Hold Ultrasonic Flow Meter
Nonwetted measurement, small in size.

Linearity

0.5%

Repeatability

0.2%

Accuracy

±1% of reading at rates>0.6 ft/s. ±0.5% with onsite calibration

Response Time

0999 seconds, userconfigurable

Velocity

±0.03  ±105 ft/s (±0.01  ±30 m/s), bidirectional

Pipe Size

15mm  6,000mm

Rate Units

Meter, Feet, Cubic Meter, Liter, Cubic Feet, USA Gallon, Imperial Gallon, Oil Barrel, USA Liquid Barrel, Imperial Liquid Barrel, Million USA Gallons. User configurable.

Totaliser

7digit totals for net, positive and negative flow

Liquid Types

Virtually all liquids

Security

Setup lockout. Access code needed for unlocking

Display

4x16 English letters

Communication Interface

RS232C, baudrate: from 75 to 115,200 bps. Protocol made by the manufacturer. User protocols can be made on enquiry.

Transducers

Model M1 for standard, other 3 models for optional

Transducer Cable

Standard 10m, optional 2x1,500 (500m)

Power Supply

3 AAA NiH builtin batteries. When fully charged it will last over 10 hours of operation.100V240VAC for the charger

Data Logger

Builtin data logger can store over 2,000 lines of data

Manual Totalizer

7digit presskeytogo totalizer for calibration

Housing Material

ABS. Aluminum alloy protective case

Case Size

3.9x2.6x0.8 (100mmx66mmx20mm)

Handset Weight

1.2 lbs (514g) with batteries

Non-contact ultrasonic measurement of the magnetic flowmeter in the pipeline wall adsorption, complete flow measurement measurement range

Use different types of sensors can be realized diameter DN20 ~ DN1500 pipeline flow measurement, if you need a larger diameter measurement, please use the series of large-diameter ultrasonic flow meter

Built-in data logger: data logger, the space for the 24k bytes, 2000 lines can be stored measurement data.

more discount welcome to consult us! more flowmeter welcome to consult us


Product Image

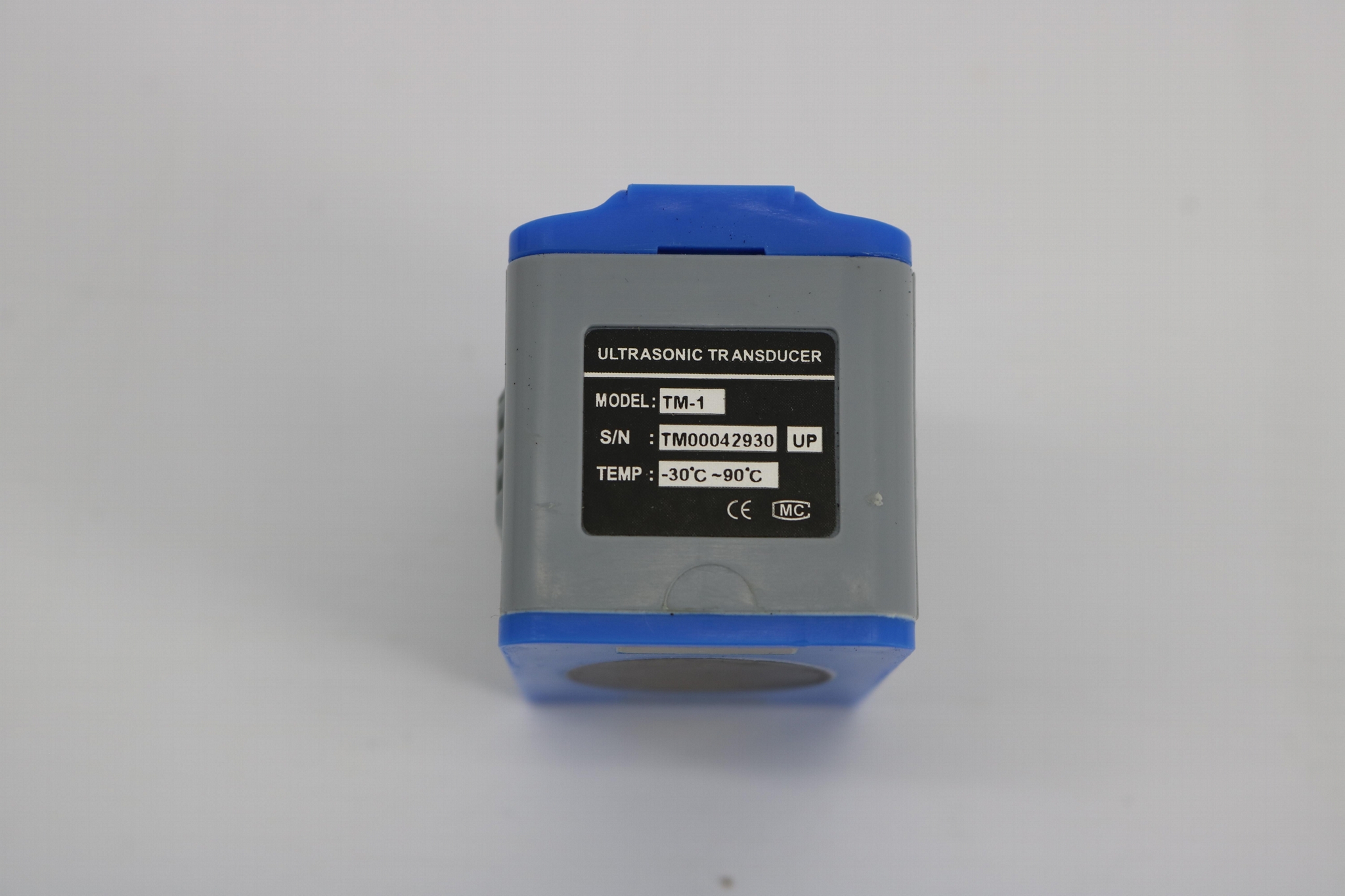

TUF-2000H Ultrasonic Flow Meter Flowmeter With TM-1 TS-2 Sensors transducer 1
