OWON VDS1022i USB Oszilloskop 2x 25 MHz 100MS / s

Scope Oszi virtual oscilloscope

Overview

OWON witnesses the new-born USB oscilloscope working on PC - OWON VDS series oscilloscope in the new era. In contrast with bench type digital storage oscilloscope, the PC oscilloscopes in the current market equipped with either incomplete function, or lower performance, very inconvenient for users, especially for engineers. OWON VDS PC oscilloscope accommodates users with 100MHz bandwidth, 1GSa/s real-time sample rate, and multiple trigger modes - edge, video, slope, pulse, and alternate. OWON VDS PC oscilloscope attracts more eyesight from the market upon with its ultra-thin body design - only 18mm of body depth, which is much portable, and its USB powering facilitates mobile tests under powerless conditions to the largest degree.

Model No. Bandwidth Sample Rate Record Length Channel
VDS1022 25MHz 100MS/s 5K 2+1 (multi)
VDS1022I 25MHz 100MS/s 5K

2+1 (multi),
w/ USB isolation

VDS2062 60MHz 500MS/s

10M

2+1 (multi)

VDS3102 100MHz 1GS/s
VDS3104 100MHz 1GS/s 4+1 (multi)



Main Features

- Up to 100MHz bandwidth, and max 1GS/s real-time sample rate
- 10M record length
- Friendly UI : FFT, or X-Y, and waveform 2 views displayed
 on the same screen
- Multi-trigger option : edge, video, slope, pulse, and alternate
- USB isolation - less signal inference, more PC protection
- USB bus powering, and LAN remote control (optional)
- Ultra-thin body design, easy portability



Application

1 design and debug

2 circuit function test
3 education and training



Packing List

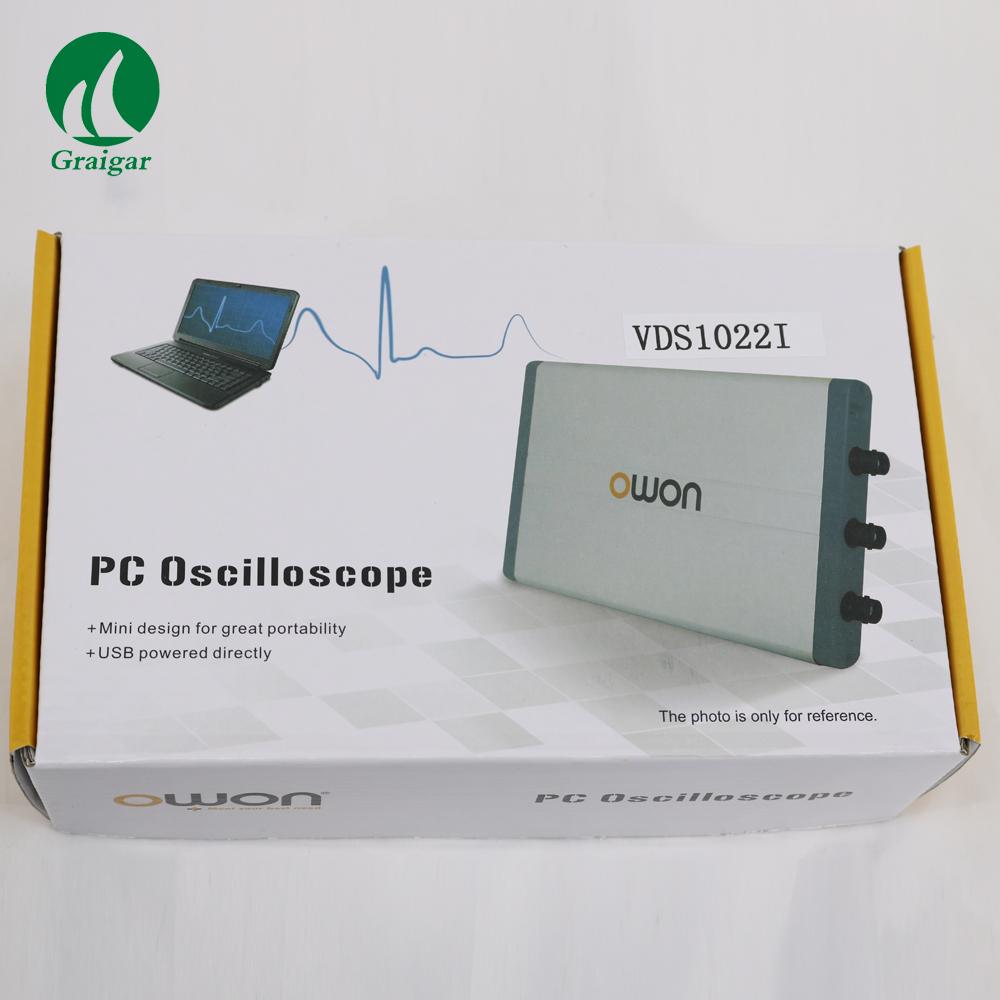

- 1 x VSD1022i PC-based USB Oscilloscope
- 1 x Power Cord
- 1 x CD Rom
- 1 x Munual
- 2 x Probe
- 1 x Probe Adjust
- 1 x USB Cable
- 1 x Adapter
- 1 x Silicon Gel Case





Specifications

Model VDS1022I VDS1022 VDS2062 VDS3102 VDS3104
Bandwidth 25MHz 60MHZ 100MHZ
Channel 2+1 (multi) 4+1 (multi)
Sample Rate 100MS/s 500MSa/s 1GSa/s
Horizontal Scale (s/div) 5ns/div~100s/div, step by 1~2~5 2ns/div~100s/div, step by 1~2~5
Rise Time ≤14ns ≤5.8 ns ≤3.5 ns
Record Length 5K 10M
Input Coupling DC AC GND
Input Impedance 1MΩ±2%,in parallel with10pF±5pF
Channels Isolation 50Hz : 100 : 1, 10MHz : 40 : 1
Max Input Voltage 400V (PK - PK) (DC+AC, PK - PK) 40V (PK - PK) (DC+AC, PK - PK)
DC Gain Accuracy ±3%
DC Accuracy Average≥16: ±(3% reading + 0.05div) for △T
Probe Attenuation Factor 1X, 10X, 100X, 1000X
LF Respond (AC, -3dB) ≥5Hz (at input, AC coupling, -3dB)
Sampling Rate / Relay Time Accuracy 150ps
Interpolation sin(x) / x
Interval (△T) Accuracy (full bandwidth) Single: ± (1 interval time + 100ppm × reading + 0.6ns),
Average >16: ±(1 interval time + 100ppm × reading + 0.4ns)
Vertical Resolution (A/D) 8 bits resolution (2 channels simultaneously)
Vertical Sensitivity 5mV/div~5V/div
Trigger Type Edge, Pulse, Video, Slope, Alternate
Trigger Mode   Auto, Normal, Single
Trigger Level   ±5 divisions from screen center
Acquisition Mode Sample, Peak Detect, and Average
Line / Field Frequency (video) NTSC, PAL, and SECAM standard
Cursor Measurement △V, and △T between cursors
Automatic Measurement Vpp, Vavg, Vrms, Freq, Period, Vmax, Vmin, Vtop, Vbase, Overshoot, Preshoot,
Rise Time, Fall Time, Delay A→B↑, Delay  A→B↓, +Width, -Width, +Duty, -Duty
Waveform Math +, -, ×, ÷,  FFT
Lissajou's  Figure Bandwidth full bandwidth
Phase Difference ±3 degrees
Communication Interface USB 1.1 USB 2.0, LAN (optional)
Multi-function Interface Signal Type synchronized input / output, Pass / Fail , external trigger input
Level Standard TTL
Power Supply 5.0V/1A
Power Consumption ≤1.5W ≤5W
Dimensions (W × H × D) 170 × 120 × 18 (mm) 190 × 120 × 18 (mm)
Weight (without package) About 0.26 kg About 0.30 kg
