WSB-1 handheld whiteness meter Leucometer whiteness degree measuring instrument

Model:WSB-1
Brand:Graigar
Origin:Made In China
Category:Electronics & Electricity / Electronic Instrument / Other Electronic Instrument
Label:whiteness meter , whiteness degree , Leucometer
Price: US $265 / pc
Min. Order:1 pc
Inquire Now Add to Basket

Member Information

Detail

Shenzhen Graigar Technology Co., Limited

Biz Member  3rd-Party BizVerifyGuang Dong - China
Live Chat:
点击这里给我发消息Last Online:15 Apr, 2019

Product Description

Summary of functions

The WSB series whiteness degree instrument with the digital display is mainly applicable for the measurement of the whiteness degree on the surface of the object or the powder in the white color and the color close to white. The whiteness degree can be accurately educed that is consistent with the visual degree. The opacity degree of the paper can also be accurately measured.

This instrument can be widely applied for the measurement of the whiteness degree of the objects like textile & printing & dying, oil paint & dope, chemical construction material, paper & paper plate, plastic product, white cement, ceramics, porcelain enamel, porcelain clay, French chalk, starch, flour, salt, wash, and cosmetics, etc.

Product  Characteristics

 1. AC & DC power supply, low power consumption, cabinet and handsome contour design, facilitating field and lab use;

 2.  Configured with auto power-off function ad low power dissipation circuit, able to effectively prolong service life of battery;

 3.  Adopting big-screen highly transparent LCD display, with comfortable reading, and free of ill influence from sunlight;

 4.The simple operation, and can accurately measure the opacity degree of the paper

 5.  Adopt the standard white plate rated by the central government to convey the standard value, and the measurement is accurate and reliable

   Configured with output port of measured values, possible to connect with recording meter

Specifications

Measuring Range

0-199

Measuring Condition

45/0

WhitenessMean

Whiteness degree of blue light Wb=R457

Minimum Readout

0.1

Calibrate

15

Zero Draft

0.1

Basic Error

1

Repeatability

0.2

External Dimension

235*75*65 mm

Power Supply

DC 1.5V, 5 AA alkaline dry cells AC 220V/50Hz DC7.5V 0.2A power supply adapter

 Edited by ZACK


Product Image

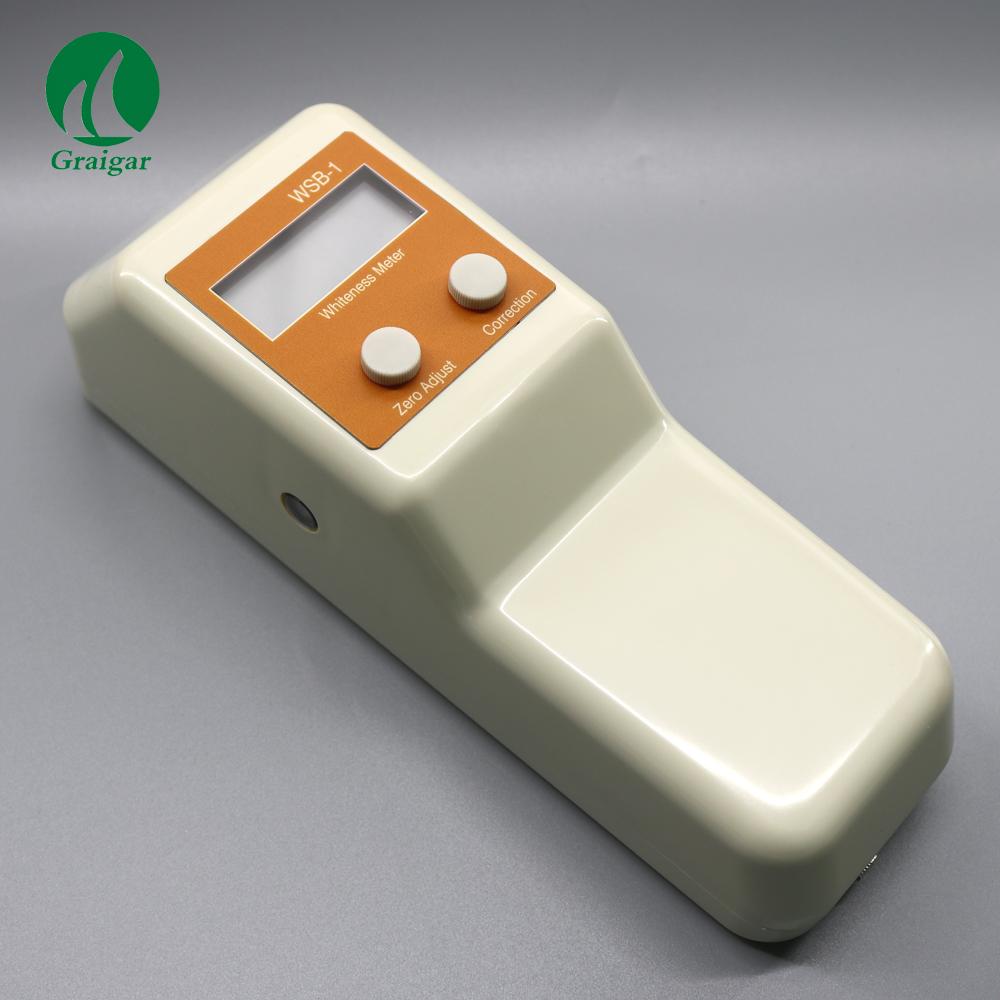

WSB-1 handheld whiteness meter Leucometer whiteness degree measuring instrument  1
Img 1

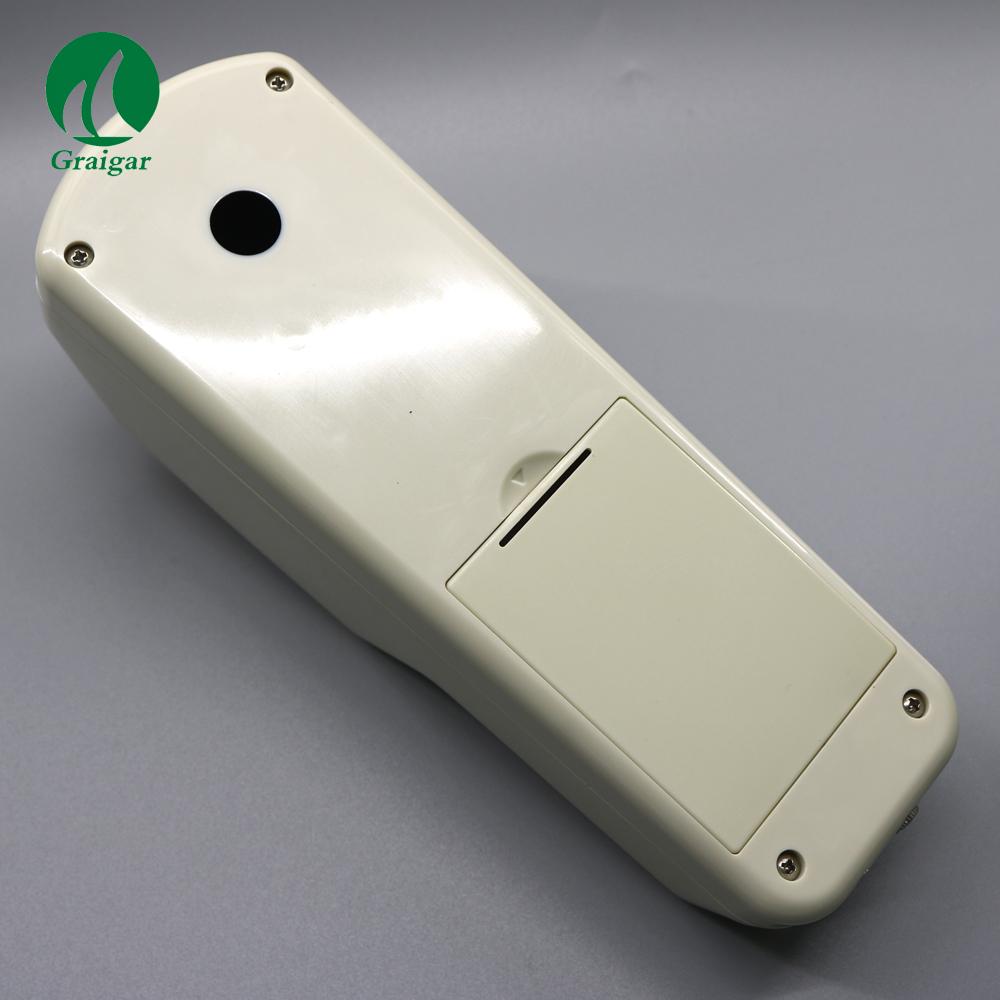

WSB-1 handheld whiteness meter Leucometer whiteness degree measuring instrument  2
Img 2
WSB-1 handheld whiteness meter Leucometer whiteness degree measuring instrument  3
Img 3
WSB-1 handheld whiteness meter Leucometer whiteness degree measuring instrument  4
Img 4
WSB-1 handheld whiteness meter Leucometer whiteness degree measuring instrument  5
Img 5
