Model: | ZBL-C310A |
---|---|
Brand: | GRAIGAR |
Origin: | Made In China |
Category: | Electronics & Electricity / Electronic Instrument / Other Electronic Instrument |
Label: | Corrosion Detector , Rebar Scanner , ZBL-C310A |
Price: |
US $1070
/ pc
|
Min. Order: | 1 pc |
The C310A provides the ability to examine the corrosion potential and to locate active corrosion in rebar in building structures. The procedure is virtually non-destructive and is performed by carrying out a grid based measurement.

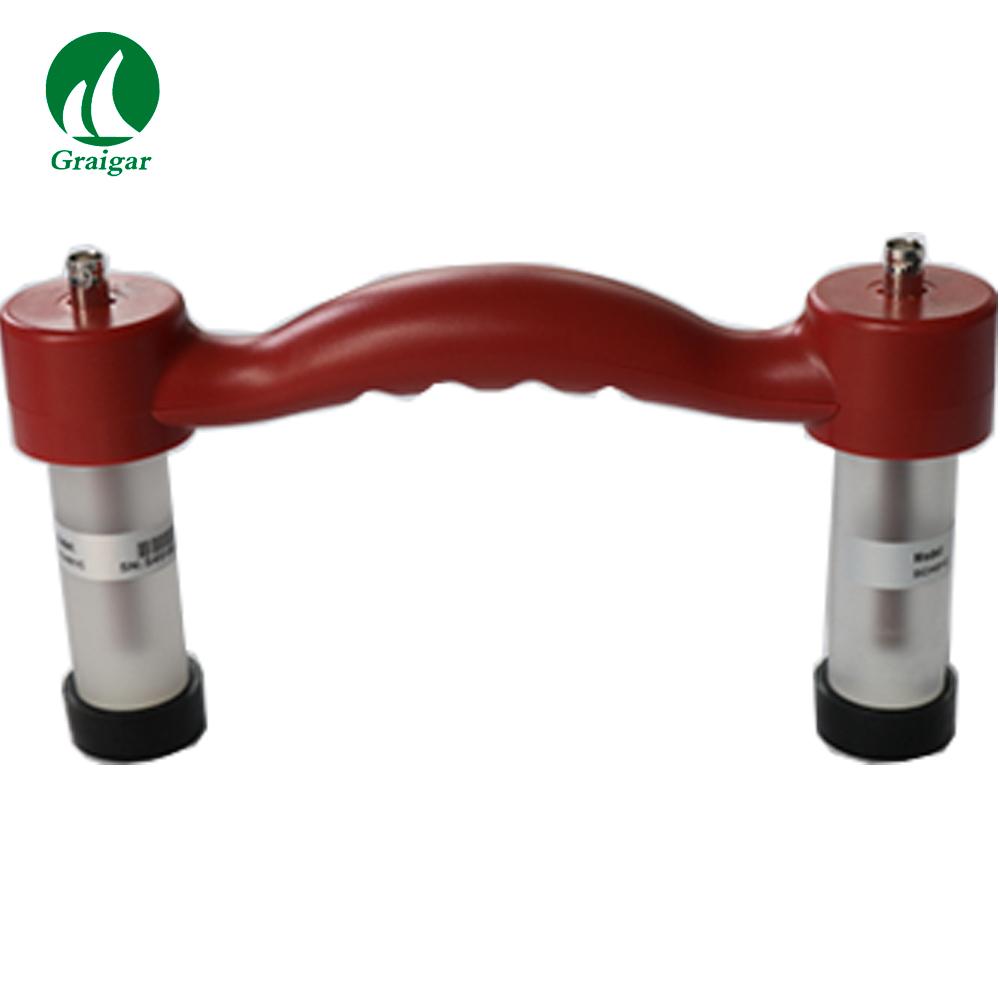

The C310A Rebar Corrosion Detector is a specialized apparatus designed according to the electrochemical testing method (natural potential method). C310A tests the potential of concrete surfaces by a Cu/CuSO4 reference electrode, and determines the level of rebar corrosion.
Features:
l Based on natural potential method and potential gradient method (two methods), ZBL-C310A can detect corrosion range and corrosion distribution of rebar in building structures, and foresee and prevent great accidents.
l Automatic storage option is available in instrument.
l Data transfer to USB-thumb drive is available.
l It can generate rebar corrosion potential contour graph.
l Software provided for data processing of corrosion potential data is very user-friendly.
l Generate final analysis report
l Operates on windows based computers
Technical Specifications:
Corrosion detection method |
Single electrode |
Double electrode |
Measuring range |
±1000mV |
0~1000 mV |
Accuracy |
±0.1mV |
±0.1mV |
Tested points Interval X |
0~100 adjustable |
20 fixed, |
Tested points interval Y |
0~100 adjustable |
0~100 adjustable |
Power |
Built-in rechargeable lithium battery |
|
Battery operating Time |
>40 hours |
|
Data transmission |
U thumb drive storage |
|
Size |
212mm´134mm´50m |
|
Weight |
0.9kg |
