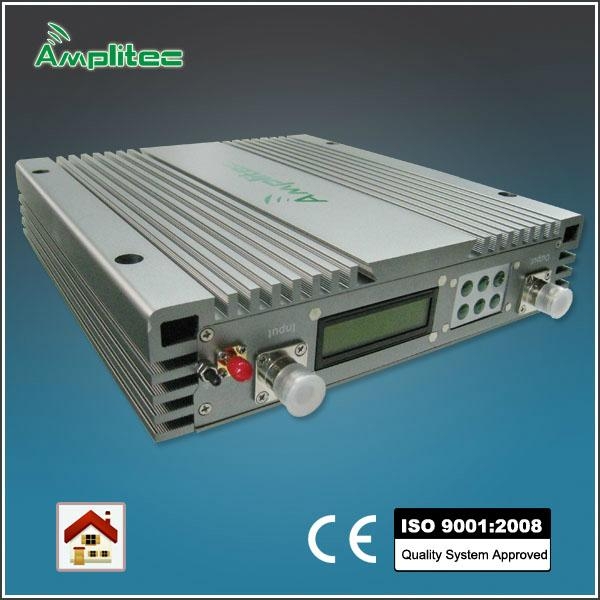

W20T Series GSM/AWS Cell Phone Band Selective Repeater & Booster
Product Description
- Provide quick coverage solution for weak & blind mobile signal zones, reduce drop/off calls.
- Compact size, micro, elegant design and easy installation.
- Use advanced high linear IF saw filter technology.
- Low consumption, low interference to BTS, high linear design.
- Reduce cellphone transmit pwoer and radiation, extend cellphone battery life.
- Use advanced high linear IF saw filter technology.
- ALC can limit output power to ensure stable cell phone signal coverage.
- MCG(Manual Gain Control) function, 1-25dB(1dB/step) )to ensure flexible network coverage.
- Can be controlled and monitored, via RS232 connects to PC for local control, via modem connects to PC for remote control.
- Apply to approximate 1500-16000 square meters coverage.
- Perfect Indoor Repeater solution of mobile signal extender.
| Model |
Frequency
MHz |
BandWidth
MHz |
Gain
dB |
Output Power dBm |
Power Consumption |
Power |
RF Connector |
Weight |
Size |
| W20T-GSM(01) |
UL |
890-915 |
25MHz |
70±2 |
15±2 |
<50W |
DC:12V/3A |
N-Female |
≤6kg |
285×268 × 58 mm |
| DL |
935-960 |
70±2 |
20±2 |
| W27T-ASW(01) |
UL |
1710-1725 |
25MHz |
70±2 |
10±2 |
- |
DC:12V/5A |
N-Female |
≤6kg |
285×268 × 58 mm |
| DL |
2110-2125 |
75±2 |
10±2 |
To get more information, please visit our offical website: www.amplitec.cn
