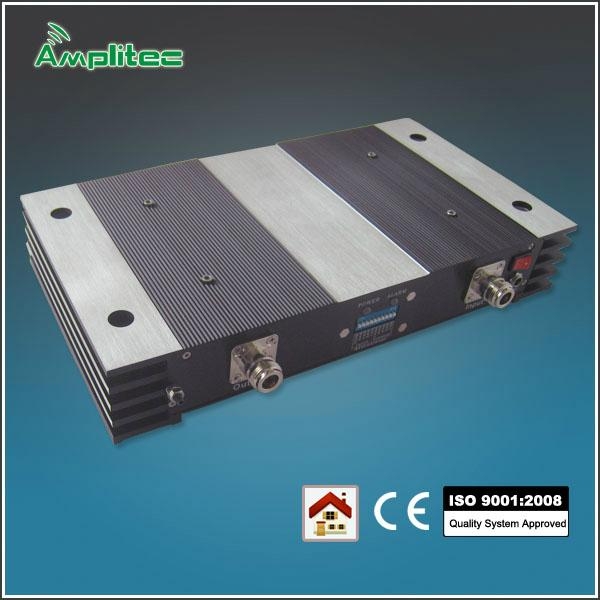

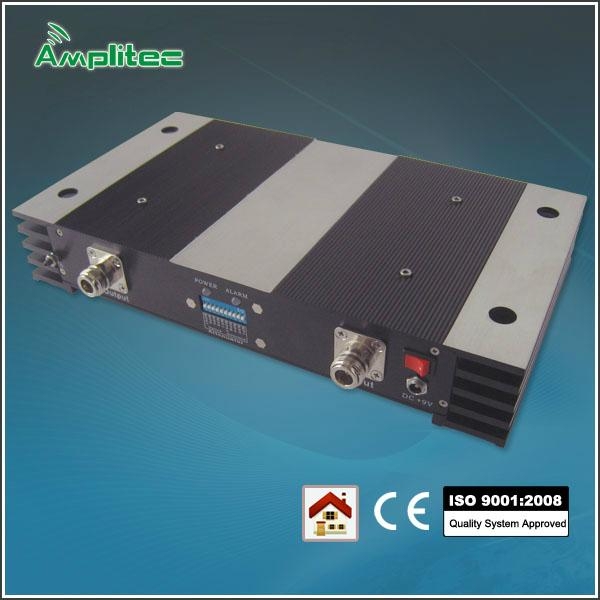

W10 Series GSM/CDMA/WCDMA Repeater & Booster

W10 Series GSM/CDMA/WCDMA Repeater & Booster 1

W10 Series GSM/CDMA/WCDMA Repeater & Booster 2

W10 Series GSM/CDMA/WCDMA Repeater & Booster 3

Model:	W10 Series
Brand:	Amplitec
Origin:	Made In China
Category:	Electronics & Electricity / Telecommunication & Broadcasting / Wireless Equipment
Label:	gsm repeater , signal booster , phone repeater
Price:	-
Min. Order:	1 pc

Inquire Now Add to Basket

Member Information

Foshan Amplitec Tech Development Co.,Ltd

Free MemberGuang Dong - China

Live Chat:

Last Online:14 Jul, 2015

Product Description

Provide quick coverage solution for weak & blind GSM 900 MHz mobile signal zones, reduce drop/off calls, improve communication quality.
Compact size, micro, elegant design, easy installation and operation.
High gain, Low consumption, low interference to BTS.
Lowers cell phone power emissions and extends phone battery life.
LED indicates power and working status.
Single band & wide band for mobile signal extender.
ALC can limit output power to ensure stable coverage.
Apply to approximate 200~16000 square metersmobile signal coverage.
Perfect Indoor Repeater solution of mobile signal extender.

Model		Frequency MHz	BandWidth MHz	Gain dB	Output Power dBm	Power Consumption	Power	RF Connector	Weight	Size
W20-CDMA	UL	824-849	Available upon request	65±3	15±2	<20W	DC:9V/3A	N-Female	≤2.5kg	295×160 × 50 mm
	DL	869-894		70±3	20±2
W20-GSM	UL	890-915		70±3	15±2	<25W	DC:12V/3A	N-Female	≤2.5kg	295×160 × 50 mm
	DL	935-960		70±3	15±2
W15-GSM(01)	UL	890-915		70±3	10±2		DC:9V/3A	N-Female	≤2.5kg	295×160 × 50 mm
	DL	935-960		70±3	15±2
W27-CDMA(01)	UL	824-849		70±3	20±2		DC:12V/3A	N-Female	≤2.5kg	295×160 × 50 mm
	DL	869-894		70±3	27±2

Model		Frequency MHz	Channel Number	Gain dB	Output Power dBm	Power Consumption	Power	RF Connector	Weight	Size
W10-WCDMA(01)	UL	1920-1980	3	60±3	10±2	<15W	DC:9V/2A	N-Female	≤2.5kg	295×160× 50 mm
W10-WCDMA(01)	DL	2110-2170	3	60±3	10±2	<15W	DC:9V/2A	N-Female	≤2.5kg	295×160× 50 mm

To get more information, please visit our offical website: www.amplitec.cn
