tungsten boat:
1.purity:99.95%
2.density:19.20g/cm3
3.melt point:3410 centigrade
4.Surface:< Ra3.2 shining furnace

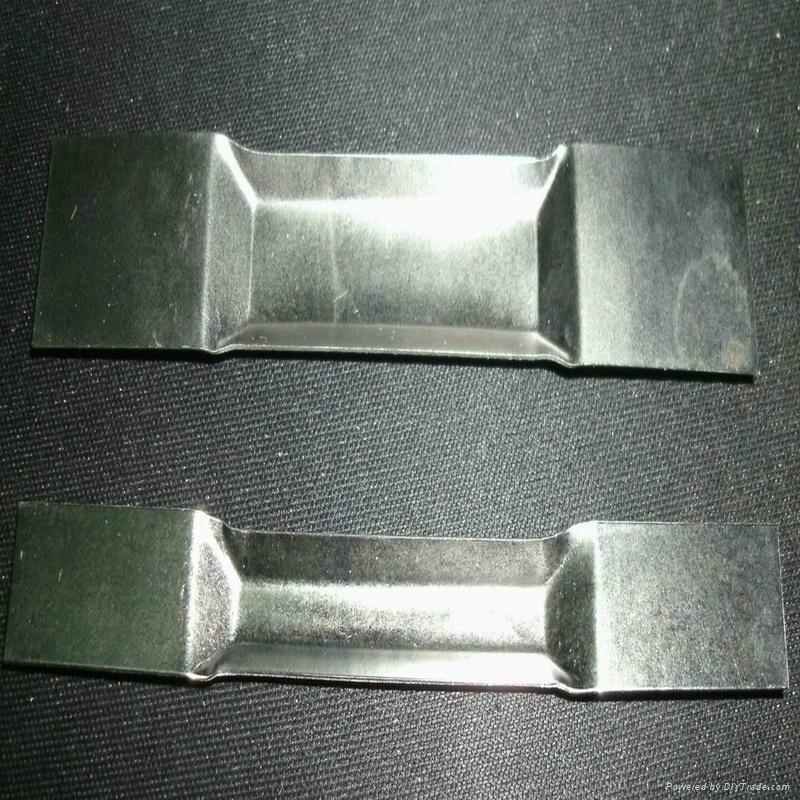

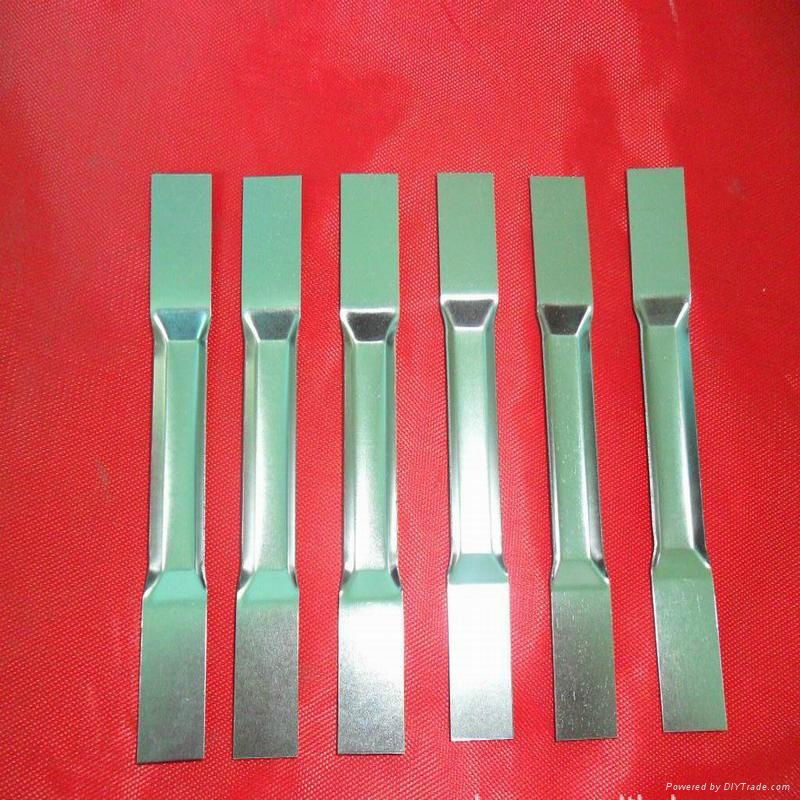

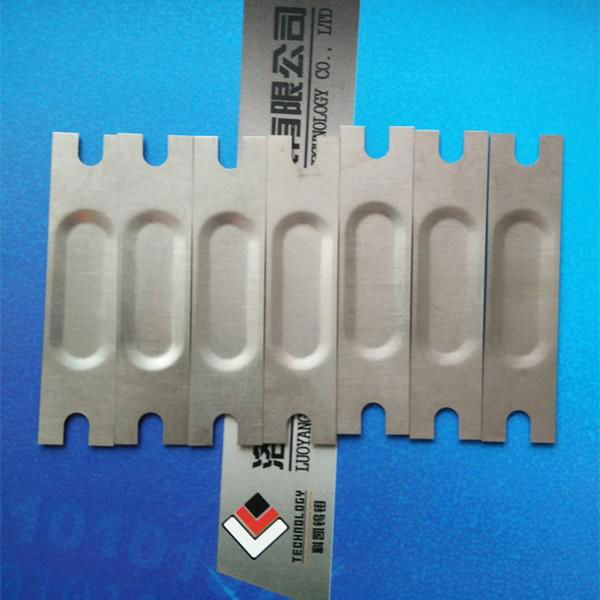

Tungsten boat is made from tungsten sheet through the technique of extruding, cutting, bending and riveting. Moreover, we threat the product surfaces through advanced techniques that there is no crack and delamination
Specification:
|
Type |
THK(MM) |
Width(MM) |
Length(mm) |
L1 |
Depth(mm) |
|
310 |
0.3 |
10 |
100 |
60 |
1.5-2.0 |
|
215 |
0.2 |
15 |
100 |
60 |
1.5-2.0 |
|
315 |
0.3 |
15 |
100 |
60 |
1.5-2.0 |
|
515 |
0.5 |
15 |
100 |
60 |
1.5-2.0 |
|
218 |
0.2 |
8 |
100 |
60 |
1.5-2.0 |
|
312 |
0.3 |
12 |
100 |
60 |
1.5-2.0 |
|
251 |
0.2 |
10 |
50 |
25 |
1.5-2.0 |
|
353 |
0.3 |
13 |
50 |
25 |
1.5-2.0 |
|
220 |
0.2 |
15 |
102 |
40 |
5.0 |
|
223 |
0.2 |
23 |
100 |
15 |
1.5-2.0 |
Product Feature:
1)Large size, high purity, high density, Smooth furnace , difficulty structure
2)Good electrical conductivity, thermal conductivity and heat resistance, anti wear and corrosion performance.
Tungsten boat applications:
Metallizing,Electron-beam Spraying as well as sinteting annealing in reducing atmosphere in electronics, military and light industries.
Tungsten boat is widely used in military industry, electronic industry and light industry. In addition,
it can be also applied in metalizing, electron beam spraying and vacuum coating
industry. We can offer tungsten boat according to your specific requirements.
