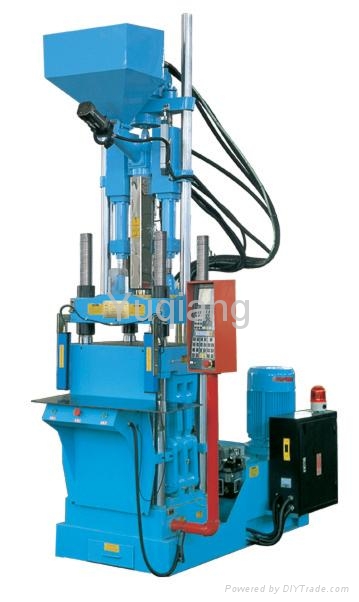

75g plastic vertical injection machine

Model:-
Brand:yuqiang
Origin:Made In China
Category:Industrial Supplies / Rubber & Plastics Machine
Label:shoe sole machine , plastic machine , injection machine
Price: -
Min. Order:1 pc
Inquire Now Add to Basket

Company Information

Detail

Jinan Magic Intelligent Technology Co.,LTD

Free MemberShan Dong - China
Live Chat:
Last Online:04 Nov, 2017

Product Description

  Machine Type Unit  YQ25
Injection System Screw Diameter  mm 28 32
Theoretical Injection Volume  cm3 65 84
Shot Weight  g/Oz 58/2.0 75/2.6
Injection Pressure  Kg/cm2 1446 1107
Injection Rate  cm3/s 40.3 52.7
Temperature Zone ZONE 3
Material Hopper Capacity  L 15
Clamping Unit  Clamping Force  T 25
Open Force  T 6.6
Min Mould Height  mm 100
Open Stroke  mm 180
Max Open Distance  mm 280
Space Between Tie-Bar  mm 360X230
The biggest Mould Space  mm 300X210
Nozzle Center Height  mm
Ejector Stroke mm 40
Ejector Force T 1.3
Hydraulic Unit Hydraulic Pressure  Kg/cm2 140
Pump Output  L 130
Pump Motor Power KW 4
Heating Power KW 2.7
Total Wattage  KW 6.7
other Machine Size  m 1.5X0.8X2.6
Machine Weight  T 0.96


Product Image

75g plastic vertical injection machine  1
Img 1
75g plastic vertical injection machine  2
Img 2
