45ton plastic injection machine
Product Description
| Item |
Unint |
MQ-450A |
| Screw Diameter |
mm |
30 |
| Screw Speed |
r/min |
0-200 |
| Injection Pressure |
kg/cm3 |
1580 |
| Theoretical Shot Volume |
g |
135 |
| Shot Weight |
|
100 |
| Clamping Force |
kn |
450 |
| Mould Plate Size |
mm |
580*450 |
| Space between Tie Bars |
mm |
365*245 |
| Min. Mold Height |
mm |
170(+50) |
| Slide Stroke |
mm |
200 |
| Ejector Force |
kn |
16 |
| Systematic Pressure |
Mpa |
14 |
| Motor Power |
kw |
5.5 |
| Heating Power |
kw |
3.2 |
| Ejector Ruler |
|
|
| Proportional Valves |
|
|
| Machine Weight |
T |
1.8 |
| Machine Size |
m |
1.5*1.0*2.5 |

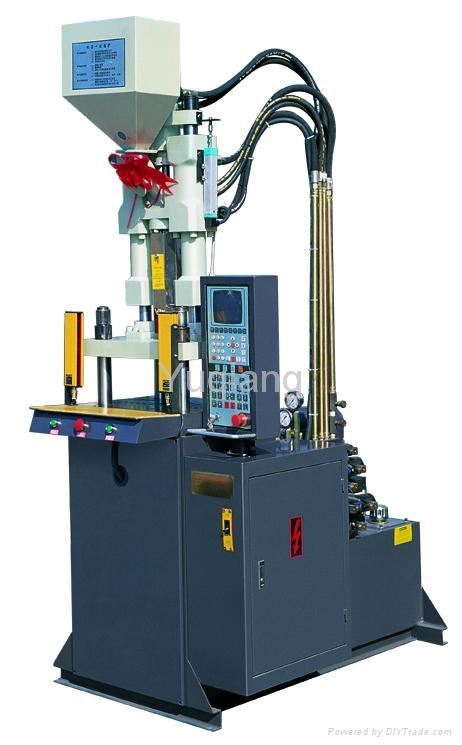

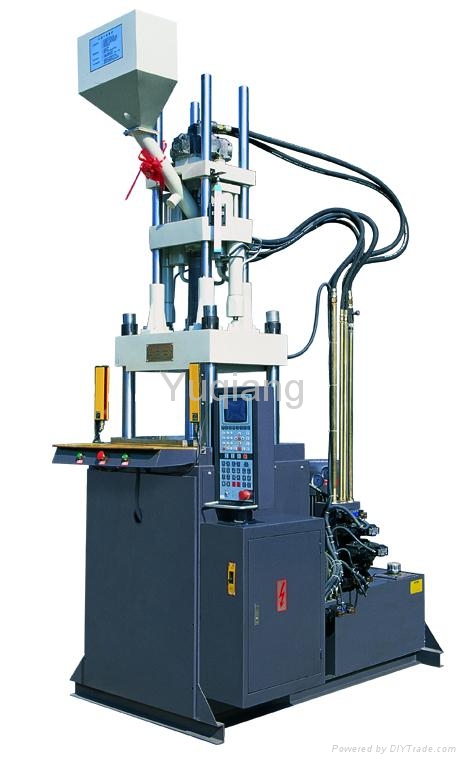

Product Image
