Full Servo pull up baby diapers machine

Model:JWC-LLK400-SV
Brand:JWC
Origin:Made In China
Category:Industrial Supplies / Paper Machinery
Label:BABY DIAPER MACHINE , BABY DIAPER LINE , pull up baby diapers
Price: US $68.3 / pc
Min. Order:1 pc
Inquire Now Add to Basket

Member Information

Detail

Jiangsu JWC Machinery co.Ltd

Biz MemberJiang Su - China
Live Chat:点击这里给我发消息Last Online:14 Oct, 2020

Product Description

Servo Motor  set 81 A.B&Siemens or Mitsubishi
Servo Motor  set 9 A.B&Siemens or Mitsubishi
Transducer  set 6 A.B&Siemens or Mitsubishi
Web Guide  set 16 FIFE or BST
PLC Control System  set 1 A.BSiemens or Mitsubishi
Sensor  set 35 Sunx Or Yamatake
Safety Protection-Phase Switch, stay wire Switch  set 75 Schmersal
Hot Melt Applicator  set 9 ITW or Nordson
(D2)Material of Cutter D2  set 2 A.finkl
Bearing (according to use)  set 1 BEM/NSK/SKF
Timing Belt  set 1 Optibelt/Gates
Low-voltage Electrical Equipment  set 1 Schneider
Electric connect terminal  set 1500 Phoenix Contact
Temp. control system  set 9 Omron
High speed rotation connection  set 14 SMC
relief valve  set 8 SMC
pneumatic component  set 1 SMC
solenoid valve  set 40 SMC
water content segregator  piece 1 SMC
precision potentiometer  piece 10 SAKAE
Failure automatic warning  piece 1  Mitsubishi
Mercury conducting ring  set 6 ASSIAN TOOL
Planet speed reducer  set 8 VGM
Ball bearing leading screw  set 2 ABBA
Beeline guide rail  set 6 HIWIN
Motor  set 13  Siemens
Cotton Core wheel forming unit  set 1 JWC
SAP Feeding unit, quantity can adjusted  set 1 JWC
Cotton Core press embossing  set 1 JWC
Bottom tissue feeding unit  set 1 JWC
Cotton Core cutting  set 1 JWC
fluff core 90 degree tranfer sytem  set 1 JWC
Bottom PE film feeding, automatic unwinding  set 1 JWC
Top layer, absorb cotton core, back sheet complex pressing  set 1 JWC
Urgent stop  set 6 JWC
Products length folding and pressing  piece 1 JWC
Frontal N.W laminated with elastic  set 1 JWC
Back N.W laminated with elastic  set 1 JWC
Products Heating laminated and final cutting  set 1 JWC
Products output  set 1 JWC
Pulp feeding unit with frequency controller  set 2 JWC
Main materials automatic run, auto connection unit  set 9 JWC
Tension control  set 9 JWC
Automatic rejection system  set 1 JWC
Safety protect system  set 1 JWC
Raw material loading and unloading davit arm  set 1 JWC
Raw material outer-fixed system  set 1 JWC
Forming drum(single/double)  set 1 JWC
Ultraviolet rays sterilizing system  set 1 JWC
Products output in a line  set 1 JWC
Stacker with 4 exits or 2 exits  set 1 JWC

Specifications:Technical Parameters

1: Model: JWC-LLK400-SV
2:Power Source: Three Phase:380V 50HZ
3: Installation Power: 320KW(excluding glue applicators, air compressor, the final power shall be confirmed after completion)
4: Product Sizes Medium and large sizes (only changing crotch size instead of changing waist size)
5: Production Speed: 350 pcs/min (Medium)
6:Qualification Rate≥96%(excluding glue applicators, wastes caused by splicing raw materials)
7:Overall Size(L×W×H):38m×12m×4.5m(for reference)
8:Machine Process Direction (raw material→ products)right to left(facing machine)

Advantages:Product Structure
1: Core layer structure: big cotton core adopts alien continuous stripping to shape and small cotton core adopts direct buckle the forming. Big cotton core and small cotton core are pressed solid after wrapping by tissues.
2. Acquisition layer slitting adopts scraping. (Scraping length is controlled by servo motors.)
3. Top sheets are composed of side nonwovens with elastic and middle materials, compressed by embossing units.
4. Nonwoven sectioning units adopts motor sectioning mode.
5. Tightness of elastic is adjusted by double roller linear velocity controlled by frequency conversion.
6. Roll material and tube material are compatible for elastic feeding.
7. Cotton core cutting and final product cutting adopt side blade scraping.
8. Color calibration of former icon straight cut adding unit.
9. Waist combination adopts heat seal.
10. Detailed shape, structure, sizes of products is confirmed according to the finalized products by both parties.

Product Image

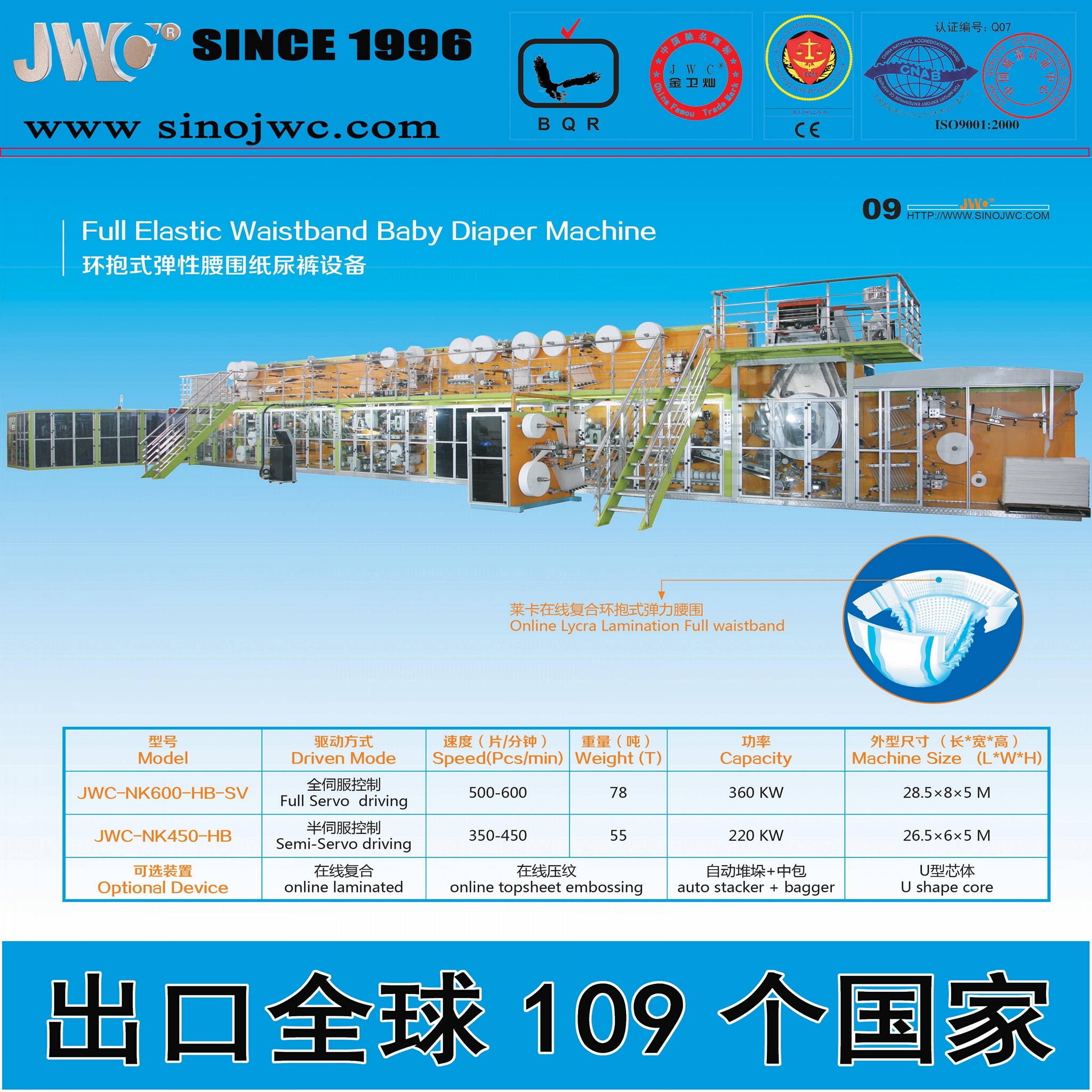

Full Servo pull up baby diapers machine 1
Img 1
Full Servo pull up baby diapers machine 2
Img 2
Full Servo pull up baby diapers machine 3
Img 3
Full Servo pull up baby diapers machine 4
Img 4
Full Servo pull up baby diapers machine 5
Img 5
