Under Pad Machine(Hospital Pad Making Machine)

Model:JWC-CFD
Brand:JWC
Origin:Made In China
Category:Industrial Supplies / Paper Machinery
Label:PET PADS , SANITARY NAPKIN , ADULT DIAPER
Price: -
Min. Order:-
Inquire Now Add to Basket

Member Information

Detail

Jiangsu JWC Machinery co.Ltd

Biz MemberJiang Su - China
Live Chat:点击这里给我发消息Last Online:14 Oct, 2020

Product Description


Specifications:Option Device
Back side release paper or tape can be chosen to use.
Main Technical Parameters
1 Model: JWC-CFD
2 Designed speed: 140 M/Min
3 Real production Speed: 100-120 M/Min (Width :600MM)
4 Product size: L: (350-1500 MM) x W(300-900 MM) (customer needs choosing to fix several sizes.)
5 Electricity: 380V 50HZ,
6 Cable: (3x50mm2+1x25mm2+1x10mm2)
7 Air compressor: ≥0.6mpa ,1.2m3/min
8 Installation Capacity: 100kw(including glue applicators)
9 Real running capacity: 80KW .Breaker: 250A
10 Machine size(without crusher): (20x4x3)M(LxWxH)
11 Machine operation area: (24x8x4)M(LxWxH)
12 Weight: 25T
13 Container: 2x40HQ


Advantages:Functions and Features
1 It is controlled in touchable screen. It is easier to operate and adjust.
2 During the process of operation, the quantity of velvet laid for the core can be under non-step adjustment and the combine roller can be used to ensure appropriate thickness of the core. Besides, wastes of fluff pulp can also be recycled and re-feeding.
3 Gram weight of fluff core and SAP is adjustable and ultrathin products can be made.
4 Folding types are versified for option.
5 Fluff core can be wrapped by tissues or demoulded directly.

Payment Details:L/C T/T
Min Order:ONE
Ship Date:70 DAYS
Standard Met:ISO9001

Product Image

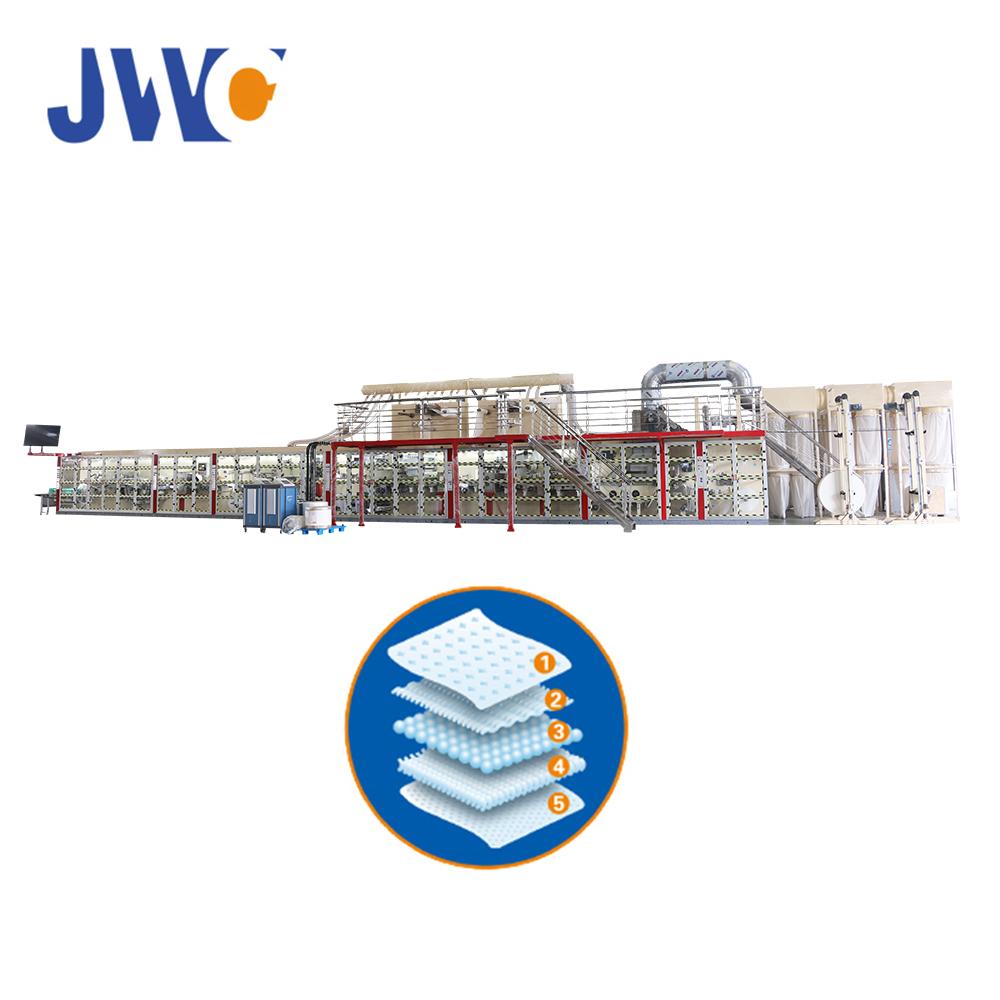

Under Pad Machine(Hospital Pad Making Machine) 1
Img 1
Under Pad Machine(Hospital Pad Making Machine) 2
Img 2
Under Pad Machine(Hospital Pad Making Machine) 3
Img 3
Under Pad Machine(Hospital Pad Making Machine) 4
Img 4
Under Pad Machine(Hospital Pad Making Machine) 5
Img 5
