glonass-gps antenna dual band gps for tracking 1
  • glonass-gps antenna dual band gps for tracking 1

glonass-gps antenna dual band gps for tracking

Model:FW-B128
Brand:Fanwell
Origin:Made In China
Category:Electronics & Electricity / Antenna
Label:Fakra gps antenna , fakra connector , fakra antenna gps
Price: US $5.9 / pc
Min. Order:100 pc
Inquire Now Add to Basket

Member Information

Detail

Product Description

external antenna Dielectric Antenna

Center Frequency:1575.42±3 MHz

V S W R:1.5:1

Band Width:+-5 MHz

Impendence:50Ω

Peak Gain:3dBic Based on 7×7cm ground plane

Gain Coverage:4dBic at -90degree  0+90 degree(over 75% Volume)

Polarization:RHCP

LNA/Filter

LNA Gain Without cable:28dB Typical

Noise Figure:1.5dB

Filter Out Band Attenuation:1575.42MHz/

7dB Min   f0+/-20MHz;

20dB Min  f0+/-50MHz;

30dB Min  f0+/-100MHz

V S W R:2.0

DC Voltage:3V,5V,3V to 5V or other

DC current:5mA,10mA,Max

Mechanical

Weight:100gram

Size:48.5X37X15mm

Cable:RG174  5M

Connector:SMA,MCX,MMCX, SMB  or other

Mounting:Magnetic base/sticking

Housing:Black

Environmental

Working Temp:40degree C~+85degree C

Vibration:Sine sweep 1g(0-p)10~50~10Hz each axis


Product Image

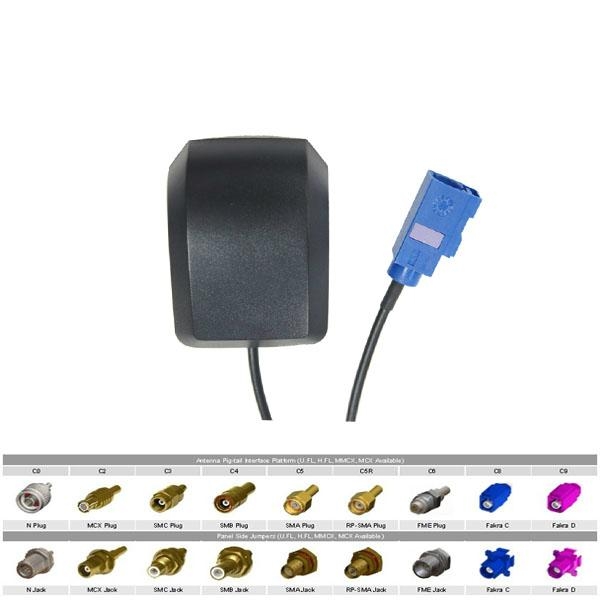

glonass-gps antenna dual band gps for tracking 1
Img 1
