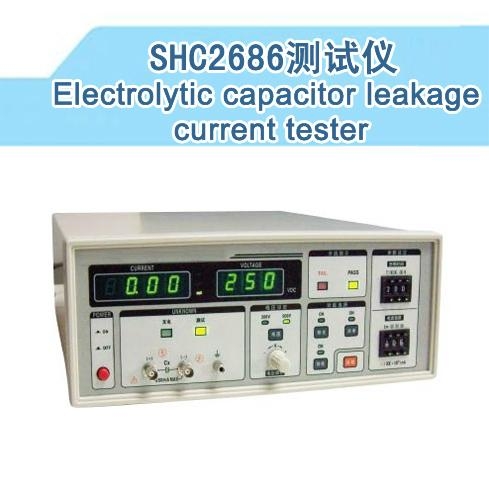

Electrolytic capacitor leakage current tester
Product Description
1.Intelligent, micro control, charging test automatic conversion.
2.Voltage three, current 3 1/2 a double digital display.
3.Current minimum resolution is 1 nA, reset button automatically remove base number.
4.Test current value lock function, strong anti-interference ability
Test voltage: 0-200V/0-500V,Two gears adjusted,precision 1% +2 digits
Leakage current test range: 10nA-19.99mA;Accuracy:2%+2digits
Highest resolution:1nA
Maximum charge current: 200mA +/-10%
Charging time: 0-99.9S;Accuracy:2%;Tset+/-0.5S
Control mode: microprocessor
Sorting: Qualified,not qualified,unqualified-ring
Supply voltage: AC 200V+/-5%,50Hz+/-5%
Dimensions: 350×355×130mm
Weigh: about 6Kg
Product Image
Img 1
