Product Description
Measuring range
voltage: 30muV to 300V
dB: -79 to 50dB
dBm: -77 to 52 dBm (0dBm=1mV, 600ohm)
Frequency Range: 5Hz to 2MHz
Voltage Error
5Hz to 2MHz: +/-4% +/-8digit
50Hz to 100 KHz: +/-2.5% +/-10digit
50Hz to 100 kHz: 1.5%20digit
Readout at 1 KHz as reference
dB Error: Voltage error+/-1 digit
dBm Error: Voltage error+/-1 digit
Input Impedance: 10Mohm +/-10%, 30pF
Resolution: 1muV
Noise: less than 15 digits (30mV TO 300V)
Ambient: 10-40Celsius /85%RH
Power supply: 220V/110V+/-10%, 50Hz/60HZ
Dimensions: 270×225×90mm
Weight: 3kg

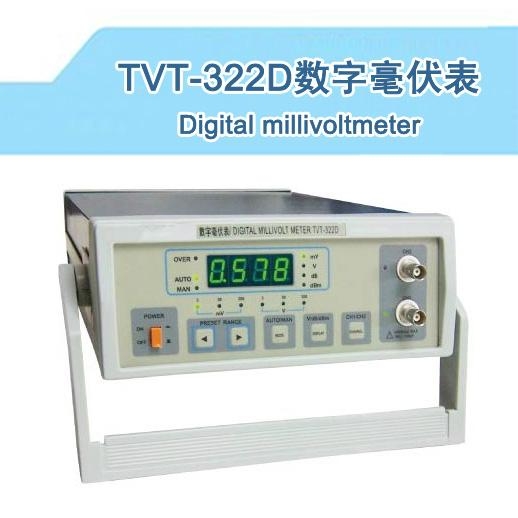

Product Image
Img 1
