combination woodworking machine/six functions
Product Description
woodworking combination machine/six functions
6 main functions as following:
1.Surface planer
2.thicknesser
3.saw
4.moulder
5.scorer
6.mortise
7.strong sliding table , same as panel saw
| 1.1 Surface planer |
| Arbor dia. |
φ72mm |
| Arbor speed |
5400r/min |
| Max. width |
300mm |
| Max. removal |
3mm |
| Motor power |
2.2KW 220V(380V) 50Hz |
| 1.2 Thickness planer |
| Range of thickness |
6-240mm |
| Max. removal |
3mm |
| Feeding speed |
7.5m/min |
| 1.3 Saw |
| Blade dia. |
φ305mm |
| Arbor speed |
3500r/min |
| Arbor dia. |
φ30mm |
| Max. cutting height |
90mm(at 90°) |
| Tilting cutting height |
65mm(at 45°) |
| Max. crosscutting width |
1600mm or 2800mm or 3000mm or 3200mm |
| Motor power |
2.2KW |
| 1.4 Moulder |
| Arbor dia. |
φ30 mm |
| Arbor useful height |
85mm |
| Arbor speed |
1750 r/min or 3500r/min or 6700r/min |
| Cutter rotating Max. dia. |
φ180 mm |
| Use shaping hood |
| Cutter rotating Max. dia. |
φ140 mm |
| Motor power |
2.2KW |
| 1.5 Scorer |
| Blade dia. |
φ90×3×φ20 mm |
| Rotating speed |
7000r/min |
| 1.6 Drilling |
| Drilling dia.(Fixed form) |
φ16mm |
| Or (self-centering) |
φ3-16mm |
| Max drilling depth |
80 mm |
| N.W./G.W. |
1600mm(550/660kg) or 2800mm(578/694kg) or 3000mm(585/688kg) or 3200mm(590/704kg) |
| Packing size: |
1630×1440×1020 mm |

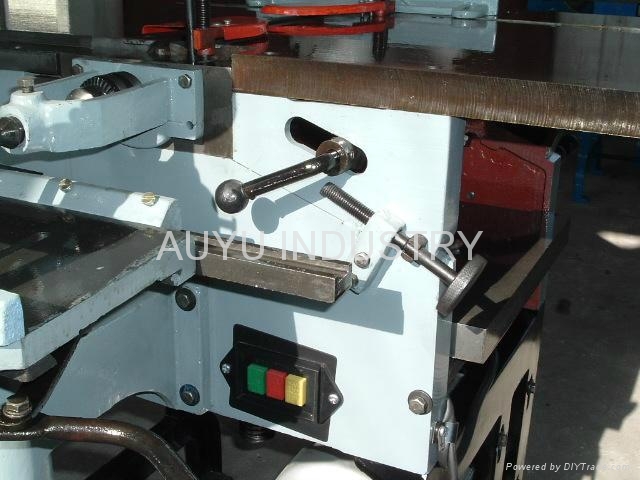

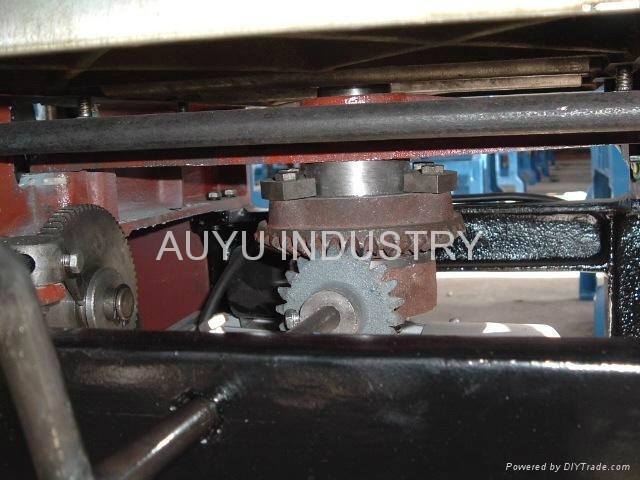

Product Image
Img 1
Img 2
Img 3
Img 4
Img 5
