| Model: | HDPE pipe used |
|---|---|
| Brand: | Guorun |
| Origin: | Made In China |
| Category: | Metallurgy , Mining & Energy / Metallurgy & Mining / Piping Tubing |
| Label: | hdpe pipe , water pipe , floating pipe |
| Price: |
US $15
/ pc
|
| Min. Order: | 100 pc |
| Live Chat: | Last Online:28 Dec, 2012 |
PE100 grade HDPE pipe
High-density polyethylene pipe(HDPE pipe) is made from high density polyethylene as the main raw material, adding a small amount of antioxidants, Anti-UV absorbers and pigments.
Guorun HDPE PIPES:
15 years of OEM experience, with CE, ISO9001, ISO14001certificates, high quality and competitive price.
|
GUORUN- HDPE PIPE |
|||||
| Reference for ISO-4427,DIN 8074,ASTM D3035,BS-6437,GB/T13663-2000 | |||||
| HDPE80 Pipe Water Supply | |||||
| O.D.(mm) | Standard Dimensions | ||||
| SDR33 | SDR21 | SDR17 | SDR13.6 | SDR11 | |
| Normal Pressure(Mpa) | |||||
| 0.4 | 0.6 | 0.8 | 1 | 1.25 | |
| e(mm) | e(mm) | e(mm) | e(mm) | e(mm) | |
| 20 | |||||
| 25 | 2.3 | ||||
| 32 | 3 | ||||
| 40 | 3.7 | ||||
| 50 | 4.6 | ||||
| 63 | 4.7 | 5.8 | |||
| 75 | 4.5 | 5.6 | 6.8 | ||
| 90 | 4.3 | 5.4 | 6.7 | 10 | |
| 110 | 5.3 | 6.6 | 8.1 | 10 | |
| 125 | 6 | 7.4 | 9.2 | 11.4 | |
| 140 | 4.3 | 6.7 | 8.3 | 10.3 | 12.7 |
| 160 | 4.9 | 7.7 | 9.5 | 11.8 | 14.6 |
| 180 | 5.5 | 8.6 | 10.7 | 13.3 | 16.4 |
| 200 | 6.2 | 9.6 | 11.9 | 14.7 | 18.2 |
| 225 | 6.9 | 10.8 | 13.4 | 16.6 | 20.5 |
| 250 | 7.7 | 11.9 | 14.8 | 18.4 | 22.7 |
| 280 | 8.6 | 13.4 | 16.6 | 20.6 | 25.4 |
| 315 | 9.7 | 15 | 18.7 | 23.2 | 28.6 |
| 355 | 10.9 | 16.9 | 21.1 | 26.1 | 32.3 |
| 400 | 12.3 | 19.1 | 23.7 | 29.4 | 36.3 |
| 450 | 13.8 | 21.5 | 26.7 | 33.1 | 40.9 |
| 500 | 15.3 | 23.9 | 29.7 | 36.8 | 45.4 |
| 560 | 17.2 | 26.7 | 33.2 | 41.2 | 50.8 |
| 630 | 19.3 | 30 | 37.4 | 46.3 | 57.2 |
| HDPE100 Pipe Water supply | |||||
| O.D.(mm) | Standard Dimensions | ||||
| SDR26 | SDR21 | SDR17 | SDR13.6 | SDR11 | |
| Normal Pressure(Mpa) | |||||
| 0.6 | 0.8 | 1 | 1.25 | 1.6 | |
| e(mm) | e(mm) | e(mm) | e(mm) | e(mm) | |
| 20 | |||||
| 25 | 2.3 | ||||
| 32 | 3 | ||||
| 40 | 3.7 | ||||
| 50 | 4.6 | ||||
| 63 | 4.7 | 5.8 | |||
| 75 | 4.5 | 5.6 | 6.8 | ||
| 90 | 4.3 | 5.4 | 6.7 | 10 | |
| 110 | 5.3 | 6.6 | 8.1 | 10 | |
| 125 | 6 | 7.4 | 9.2 | 11.4 | |
| 140 | 4.3 | 6.7 | 8.3 | 10.3 | 12.7 |
| 160 | 4.9 | 7.7 | 9.5 | 11.8 | 14.6 |
| 180 | 5.5 | 8.6 | 10.7 | 13.3 | 16.4 |
| 200 | 6.2 | 9.6 | 11.9 | 14.7 | 18.2 |
| 225 | 6.9 | 10.8 | 13.4 | 16.6 | 20.5 |
| 250 | 7.7 | 11.9 | 14.8 | 18.4 | 22.7 |
| 280 | 8.6 | 13.4 | 16.6 | 20.6 | 25.4 |
| 315 | 9.7 | 15 | 18.7 | 23.2 | 28.6 |
| 355 | 10.9 | 16.9 | 21.1 | 26.1 | 32.3 |
| 400 | 12.3 | 19.1 | 23.7 | 29.4 | 36.3 |
| 450 | 13.8 | 21.5 | 26.7 | 33.1 | 40.9 |
| 500 | 15.3 | 23.9 | 29.7 | 36.8 | 45.4 |
| 560 | 17.2 | 26.7 | 33.2 | 41.2 | 50.8 |
| 630 | 19.3 | 30 | 37.4 | 46.3 | 57.2 |
Specifications:
HDPE pipe:
1,DN20-DN800mm
2,Easy construction,environmental,economic
3,Powerful guarantees the high quality of the products
HDPE pipe:
1.Mainly used in urban water supply network, irrigation water and agricultural irrigation project engineering;
2.Health and consecrated antibacterial, long-term use not fouling, solve the pollution of drinking water;
3.Inside sleek, low friction coefficient, medium circulation ability raise, excellent wear resistance;
4.Connection technique is simple, convenient construction, project cost is low;
5.In normal conditions, using life-span of 50 years.

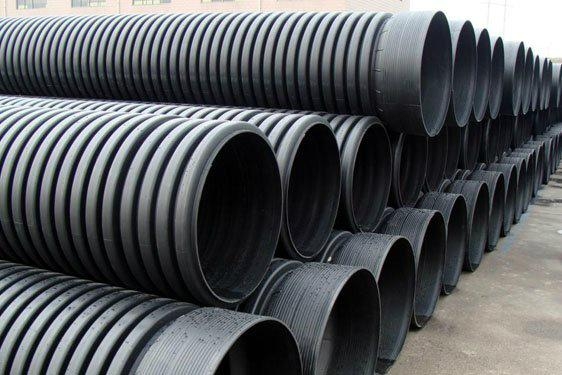

irrigation pipe of HDPE
