Product Description

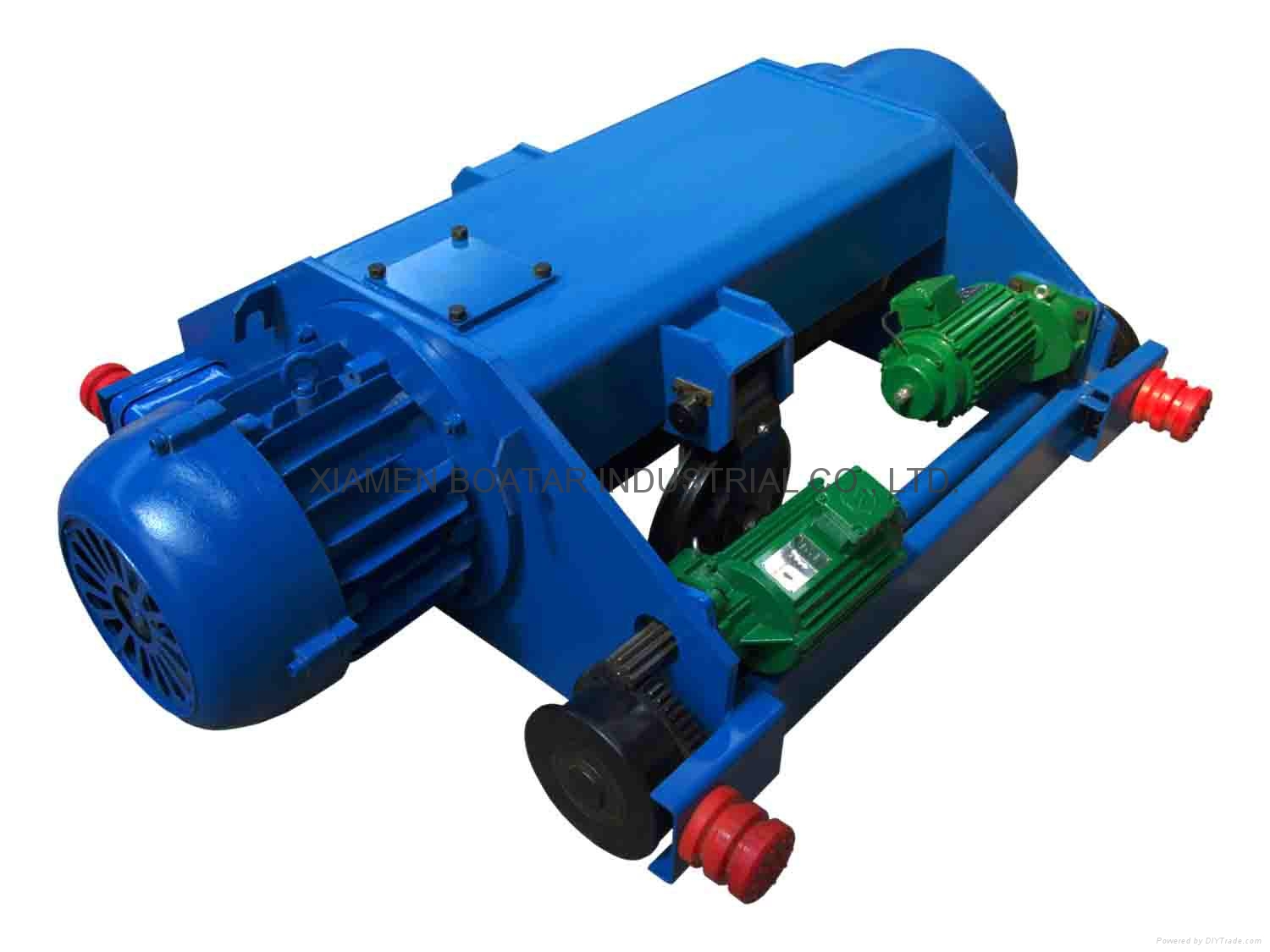

The traveling mechanism of BH light double girder hoist are installed above the double girder, capacity 2t-32t, lifting height of 4m-100m, working classification M3/M4/M5. we also design and manufacture special electric hoists according to clients’ requirements.

CAPACITY	TRAVERSING MOTOR（KW）	MAIN DIMENSION（mm）
CAPACITY	TRAVERSING MOTOR（KW）	H1	K	S	H3	H	L	L1	L2	O	M
2T	0.4	326	800/ 900	200	420	946	860	770	580	147	50
3T	0.4	350	850/ 900	200	455	1005	860	770	580	147	50
5T	0.75	420	940/ 1050	200	570	1190	945	850	658	178	53
10T	0.75*2	482	1180	200	550	1232	1305	1200	1023	200	60
10/5T	0.75*2	482	1580/ 1690	200	550	1232	1305	1200	1023	200	60
16T	0.75*2	500	1215	200	580/ 650	1280/ 1350	1305	1200	1020	216	65
20T	1.1*2	600	1380	200	680/ 800	1450/ 1600	1515	1400	1230	243	70
20/5T	1.1*2	600	1810	300	680/ 800	1480/ 1600	1515	1400	1230	243	70
25T	1.5*2	600	1380	300	900	1800	1515	1400	1230	243	70
25/5T	1.5*2	600	1810	300	900	1800	1525	1400	1230	270	80
32T	1.5*2	650	1600	300	980	1930	1625	1500	1340	270	80
32/5T	1.5*2	650	2000	300	980	1930	1625	1500	1340	270	70

Payment Terms:	T/T,L/C
