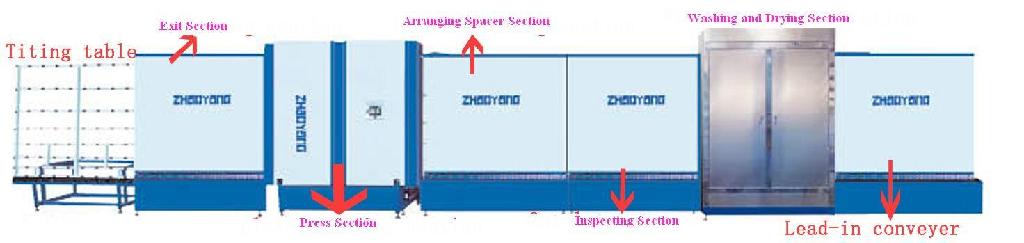

The infomration is as follows
1.Lead-in conveyer:2400*700*2400mm(Length*Width*Height)
2.Washing and Drying section:2000*1500*2600mm(L*W*H)
3.Inspecting section:2400*700*2400mm(L*W*H)
4.Frane mounting section:2400*700*2400mm(L*W*H)
5.Plate press section:2600*1200*2500mm(L*W*H)
6.Tilting Table:2400*1000*2400mm(L*W*H)
Main technique parameter
· max.working size: 1800*2500mm
· min.working size: 300*500mm
· glass thickness: 3-25mm
· unit thickness: up to 50mm
· glass washing speed: 0-8m/min
· conveying speed: 8-48m/min
· brush: 3pair(LOW-E)
· air consumption: 1000l/min
· electronic power: 3p 380v 38kw 50hz
· dimension: 15000-2500-3600mm
· total weight:5500 KG
Features
· low-eshape glass insulating glass production line
· automatic control 3-brush function for low-e glass
· glass trsnsfer with conveyor(air blowing type)
· plc contril system and touch screen system
· controlling brushes water pump fan,press time
· on press section by enter data.
· automatically distinguishing the of the coated glass,washing on line or out of line low-e glass
· can produce different size of curtain glass
· can produce triple insulating glass
· automatic control fixing of aluminium frame
· system of providing wrong wrong
