| Model: | XXQ / XXG / XXH |
|---|---|
| Brand: | Aolong |
| Origin: | Made In China |
| Category: | Industrial Supplies / Other Industrial Supplies |
| Label: | x ray , manufacturer , flaw detector |
| Price: |
-
|
| Min. Order: | 1 pc |
| Live Chat: |  | Last Online:16 Apr, 2024 |

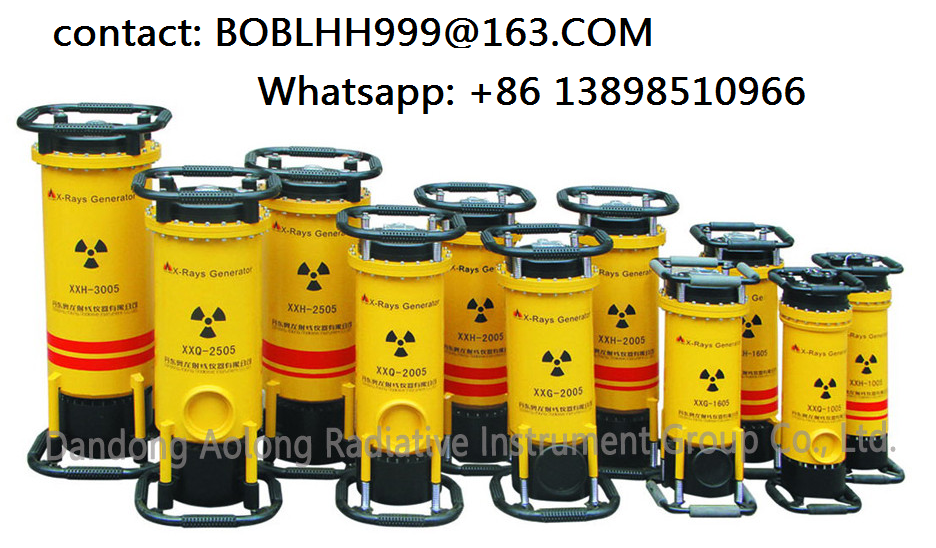

Parameter of Portable x-ray flaw detectors:
Directional Portable X-ray Flaw Detector (with glass X-ray tube)
| Model | Output Voltage
(kV) |
Input
(kw) |
Focus Size
(mm) |
Beam Angle | Q235 Max.
Penetration(mm) |
Weight of
Generator(kg) |
Dimension of
Generator(mm) |
| XXQ-100 5 | 60~100 | 1.2 | 0.8×0.8 | 40° | 8 | 11.1 | 190×530 |
| XXQ-1605 | 80~160 | 1.5 | 0.8×0.8 | 40° | 19 | 15.2 | 225×585 |
| XXQ-2050 | 100~200 | 2.0 | 1.5×1.5 | 40+5° | 30 | 23 | 285×665 |
| XXQ-2505 | 150~250 | 2.5 | 2.0×2.0 | 40+5° | 40 | 35 | 320×730 |
| XXQ-3005 | 170~300 | 3.0 | 2.3×2.3 | 40+5° | 50 | 45.5 | 345×830 |
| XXQ-3205 | 180~320 | 3.2 | 2.5×2.3 | 40+5° | 55 | 45.5 | 345×830 |
|
|
Directional Portable X-ray Flaw Detector (with ceramic X-ray tube)
| Model | Output Voltage
(kV) |
Input
（kw） |
Focus Size
(mm) |
Beam Angle | Q235 Max.
Penetration(mm) |
Weight of
Generator(kg) |
Dimension of
Generator(mm) |
| XXG-1605 | 80~160 | 1.5 | 0.8×0.8 | 40+5° | 19 | 14.5 | 225×550 |
| XXG-2005 | 100~200 | 2.0 | 2.0×2.0 | 40+5° | 30 | 18 | 285×615 |
| XXG-2505 | 150~250 | 2.5 | 2.0×2.0 | 40+5° | 40 | 30.5 | 320×640 |
| XXG-3005 | 170~300 | 3.0 | 2.5×2.5 | 40+5° | 50 | 36.5 | 345×670 |
Panoramic Portable X-ray Flaw Detector (with glass X-ray tube)
Model Output Input (kw) Foucus(mm) Beam angle Max. penetration Generator (kg) Dimension (mm)
XXH-1005 60~100 1.2 1.0×3.5 25×360° 6 11.1 φ190×530
XXH-1605 80~160 1.5 1.0×3.5 25×360° 15 15 φ225×585
XXH-2005 100~200 2.0 1.0×3.5 25×360° 27 21.5 φ285×665
XXH-2505 150~250 2.5 1.0×2.4 25×360° 37 33.5 φ320×730
XXH-3005 170~300 3.0 1.0×2.3 25×360° 47 40 φ345×830
Panoramic Portable X-ray Flaw Detector (with ceramic X-ray tube)
Model Output Input (kw) Foucus(mm) Beam angle Max. penetration Generator (kg) Dimension (mm)
XXH-2005 100~200 2.0 1.0×3.5 25×360° 27 31 φ290×615
XXH-2505 150~250 2.5 1.0×2.4 25×360° 37 35 φ325×705
XXH-3005 170~300 3.0 1.0×2.3 25×360° 47 43 φ245×715
