| Model: | - |
|---|---|
| Brand: | Aolong |
| Origin: | - |
| Category: | Industrial Supplies / Other Industrial Supplies |
| Label: | NDT , castings , x ray equipment |
| Price: |
-
|
| Min. Order: | 1 pc |
| Live Chat: |  | Last Online:16 Apr, 2024 |

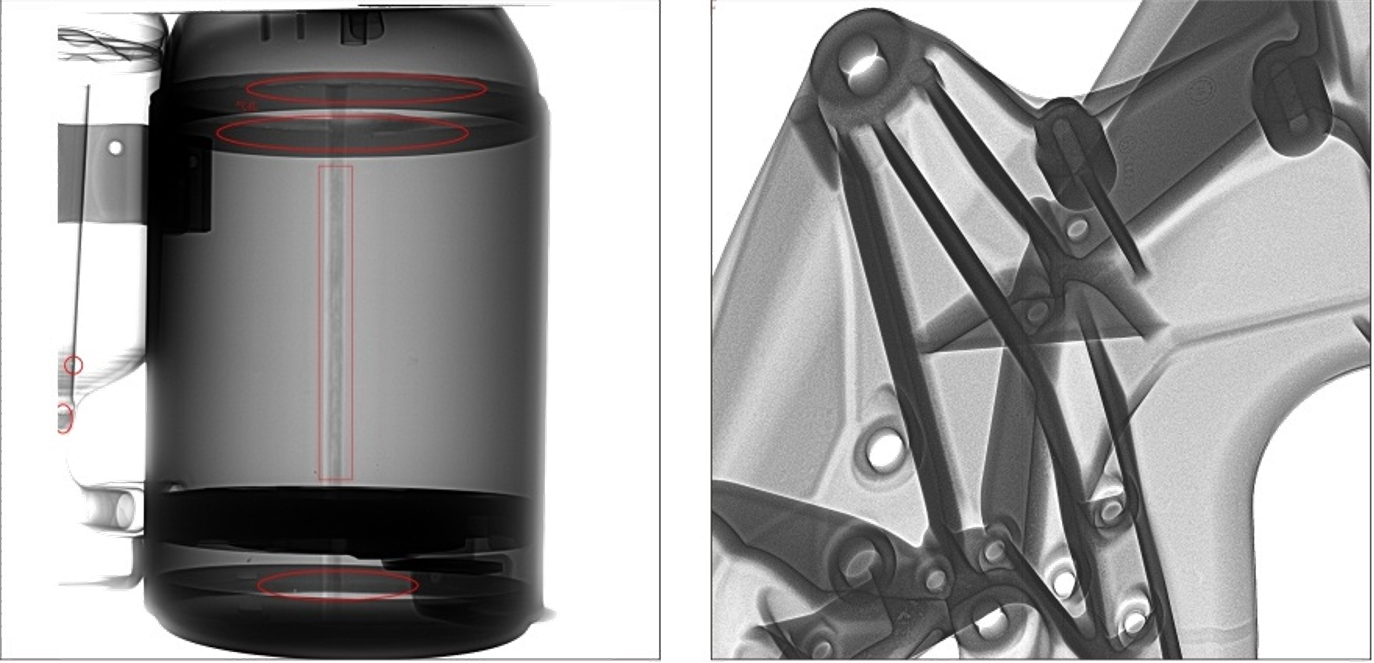

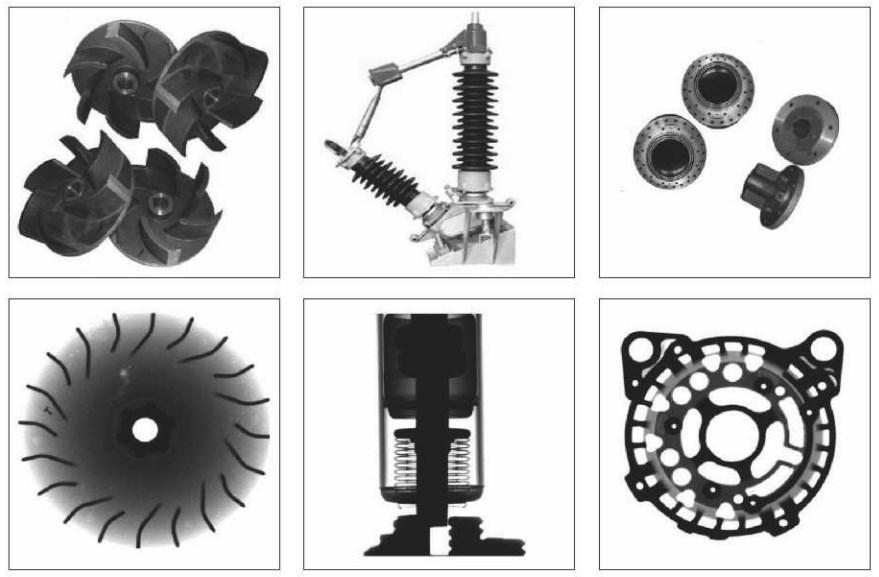

Digital X-ray Inspection System from Aolong Group has revolutionized inspection via X-ray s. Details in thin and thick regions of the inspection item become visible while the item is in motion and without constant adjustment of the X-ray parameters.The Digital X-ray system for Castings Inspection from Aolong Group find these flaws reliably.
● Voids
● Gas Pores
● Porosity
● Microporsity
● Areas of localized porosity
● Cracks

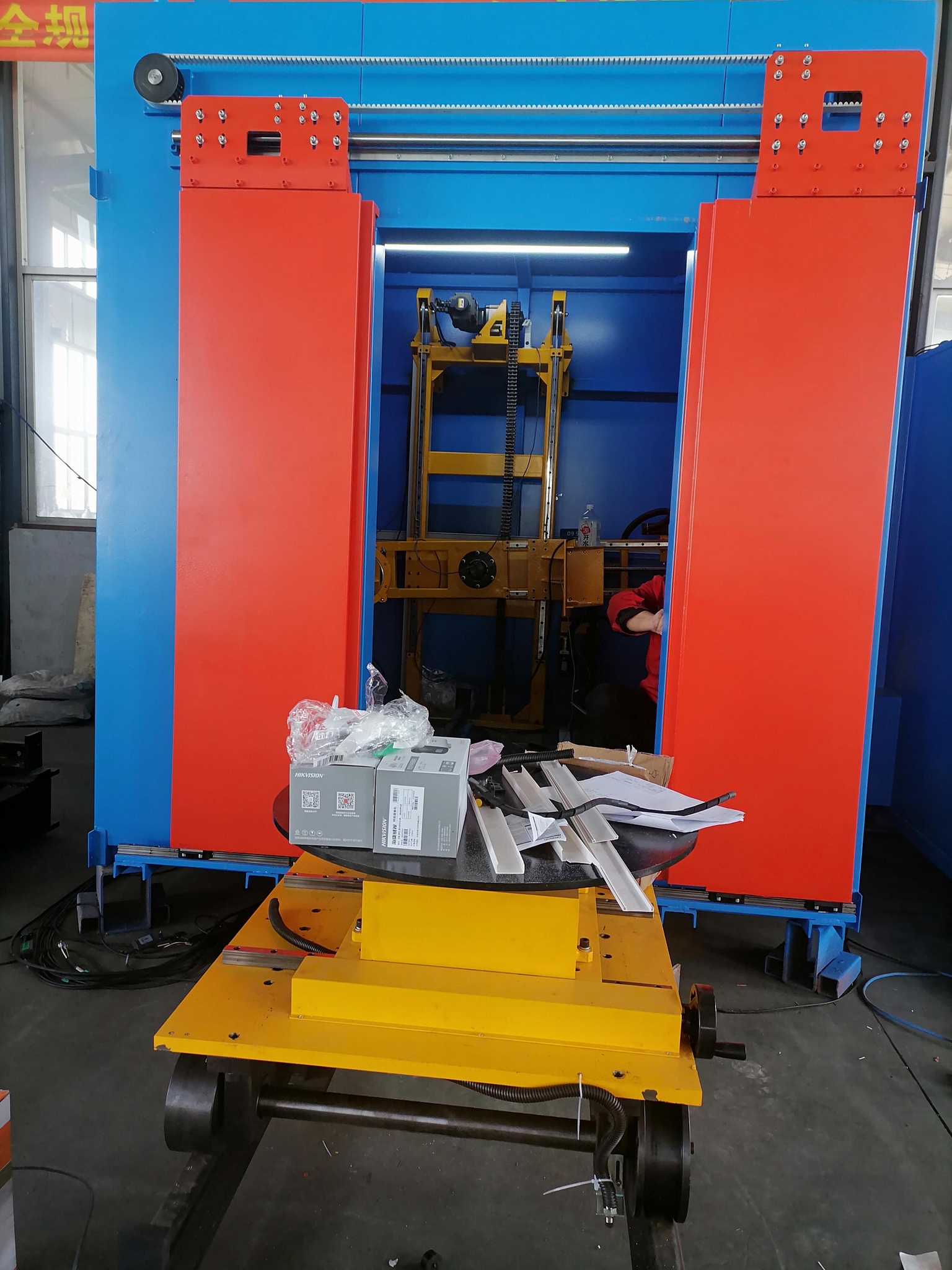

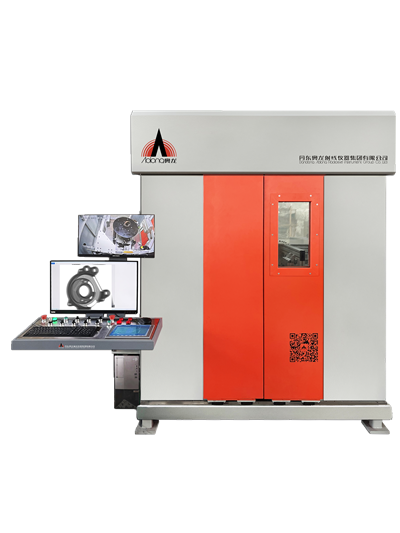

System Composition
● Digital x-ray system with X-ray source
● Digital flat panel detector (or image intensifier, or linear detector)
● Digital X-ray Inspection System with lmage processing system
● Five axes(or 7 axes) manipulator
● Lead cabinet
Main Parameters
| Tube voltage | 20kV~450kV |
| Tube current | 0.1mA~20mA |
| Repeatability precision | ±0.01% |
| High voltage rising time | 0.1ms~0.3ms |
| Sensitivity | 1.2%~1.5% |
| System resolution | 40Lp/cm~60Lp/cm
16Lp/cm~39Lp/cm |
Regulatory Standard
● Conformity CE
● DPR 257/2001 Decree on applications with lonized Radiation of European
● ASTM E2597-14 Standard Practice
● Chinese JB/T7412-1994 ,GBZ117-2015 and others standard rules .
