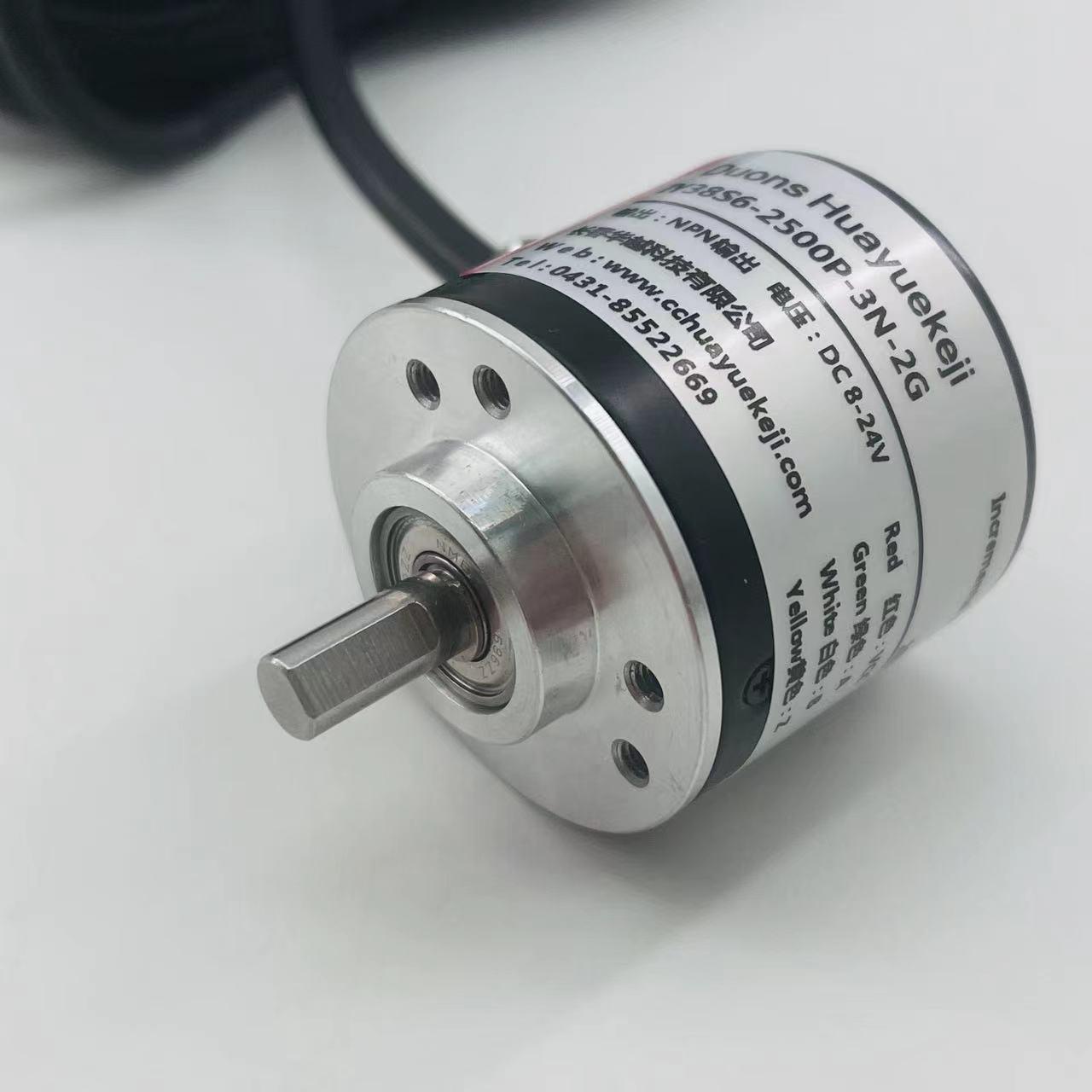

10-20000ppr rotary encoder 6mm solid shaft encoder
Type: ROTARY ENCODER
Shaft diameter: 6mm ; 8mm solid shaft
Mains Voltage: 5V ; 8-24V; 10-30V ;12V
Output: D: Voltage output N: Open collector NPN output
P: PNP output T: push-pull/complementary output
L: drive output A: wide voltagedrive output
Consumption current :≤60mA
Maximum speed: 6000 r/min
Starting torque (25 ℃) (N · M): 1*10-3
Maximum Load (N) :Axial 20 Radial 30
Moment of inertia(kgm2): 4*10-6
Operating temperature (℃): -20~+85
Relative humidity (℃): 35%~+85% RH without condensation
Impact resistance (m/s²) :50 (3 times in x, y, and z directions, each lasting for 6ms)
Vibration resistance (m/s²): 20 (10~200HZ, 2 hours each in x, y, and z directions)
Protection grade: Universal IP54 ; Preferred IP65
