| Model: | CHY-T1500 |
|---|---|
| Brand: | Chengyi |
| Origin: | Made In China |
| Category: | Electronics & Electricity / Electronic Instrument / Laboratory Instrument |
| Label: | 1500C tube furnace , Corundum tube furnac , Tube Furnace |
| Price: |
US $2200
/ pc
|
| Min. Order: | 1 pc |
| Live Chat: | Last Online:01 Nov, 2023 |

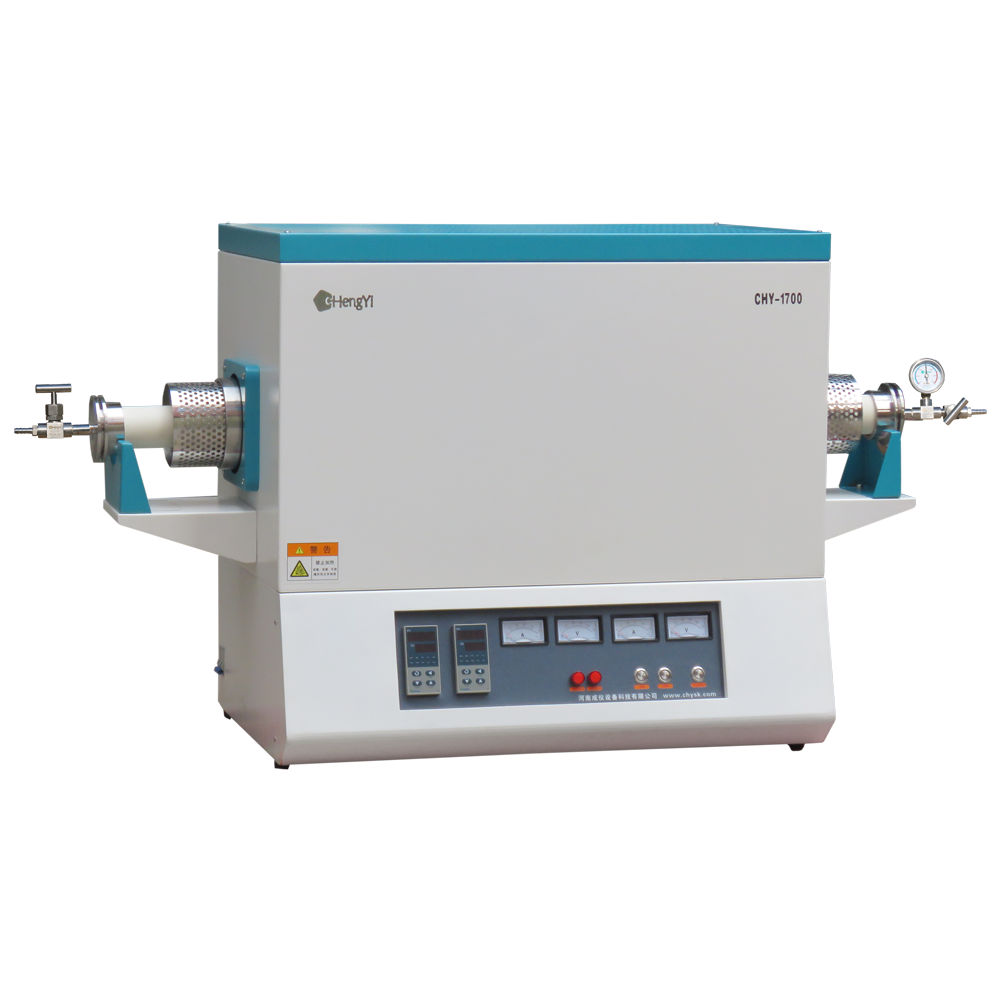

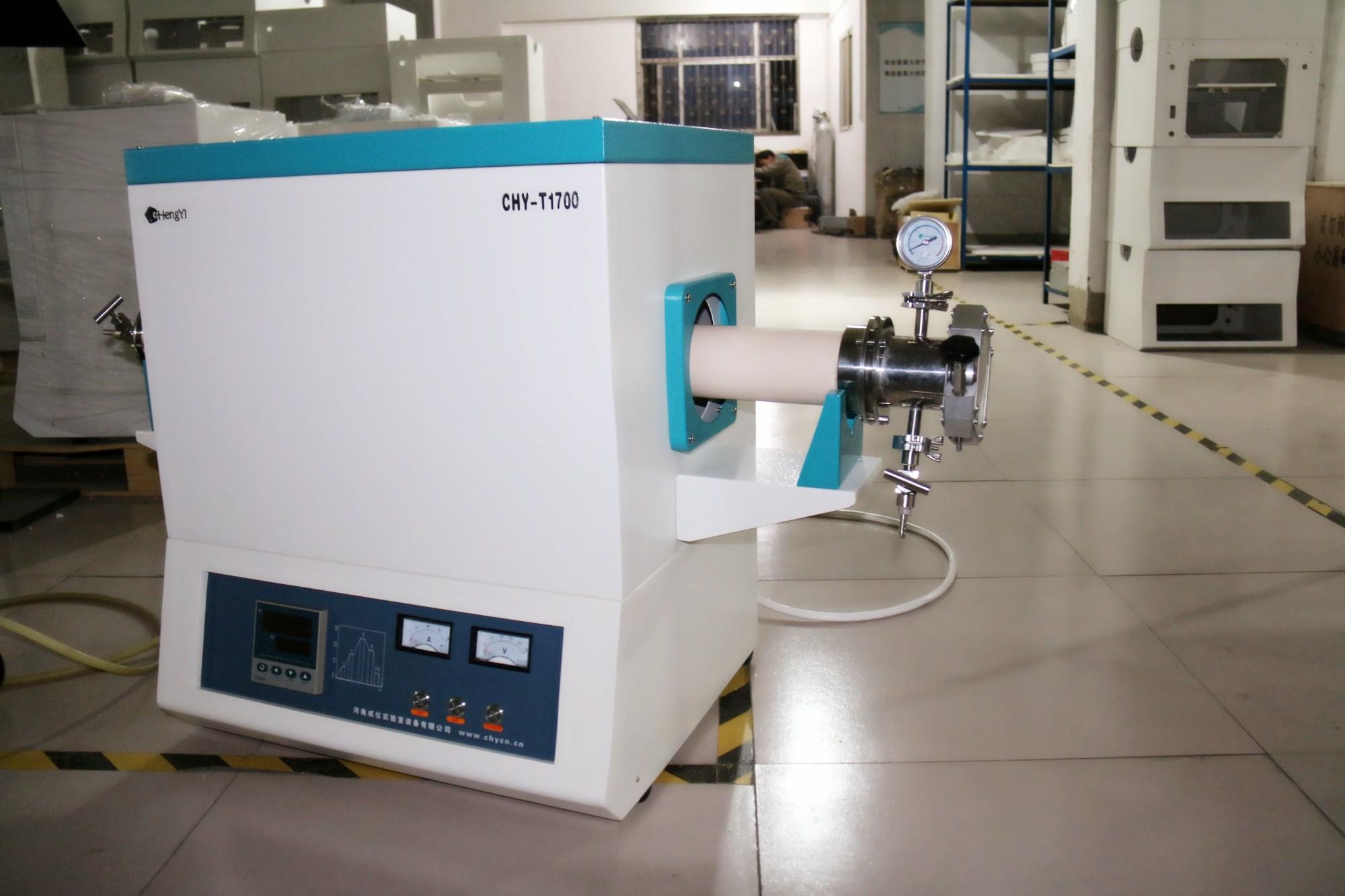

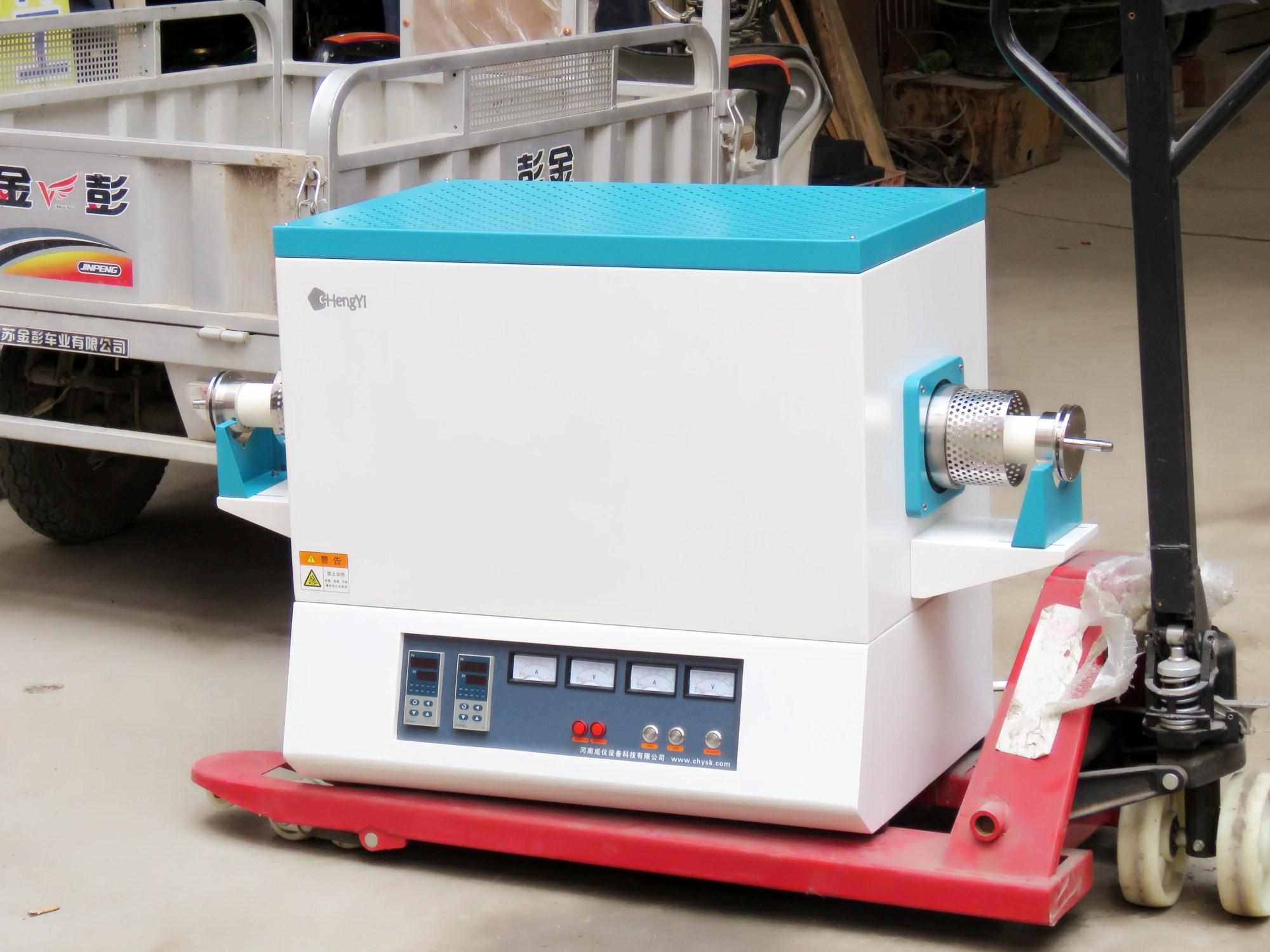

CHY-T1500 series 1500 Degree Singe/two /temperature zone Vacuum corundum Tube Furnace
1500 ℃ single temperature zone tube furnace double temperature zone tube furnace Purpose: sintering under vacuum or atmosphere protection, CVD film experiment, etc.corundumtube size: OD50 * 1000, OD60 * 1000, OD80 * 1000, OD100 * 1000 .two zone tube furnace corundumtube size OD50*1200，OD60*1200，OD80*1200，OD100*1200mm Features: It integrates control system and furnace, with a simple and generous appearance, and the furnace chamber can be opened
1.1500 degree 2''3''single temperature zone tube furnace:
2.1500 degree 2''3''two /double temperature zone tube furnace:
Specifications
|
Product Name |
1500 Degree Tube Furnace |
|
Model |
CHY-T1550S CHY-T1550A CHY-T1560A CHY-T1580A CHY-T1550B CHY-T1560B CHY-T1580B |
|
Furnace Door |
Open Type Furnace |
|
Display Model |
Highlight LED display |
|
Maximum Temperature |
1500℃ |
|
Working Temperature |
≤1450℃ |
|
Heating rate |
≤20℃/min S est:10℃/min |
|
Heating zones |
Single heating zone /Two heating zone |
|
CorundumTube Diameter |
1500 degree mini corundum tube furnace size:50mm*700mm Singe zone corundum tube size OD50*1000，OD60*1000，OD80*1000， Two zone tube furnace corundum tube size OD50*1200，OD60*1200，OD80*1200， |
|
Heating Zone Length |
460mm (single temperature zone) 230mm+230mm (double temperature zone)
|
|
Constant Heating Zone |
360mm (single temperature zone) 180mm+180mm (double temperature zone) |
|
Control mode |
Intelligent PID auto control |
|
Temperature Accuracy |
±1℃ |
|
Temperature curve |
30 segments programmable |
|
Over heat alarm |
Have |
|
Overcurrent protection |
Have |
|
Thermocouple Failure Protection |
Have |
|
Temperature Sensor |
S-type thermocouple |
|
Heating Element |
SiC Rod |
|
CorundumTube Material |
Corundum |
|
After-sales service |
12 month warranty, durable maintaince and repair support |
|
Power Supply |
220V 50HZ/110V 50HZ |
|
Rated power |
5.0kw |
|
Overall dimensions |
800×540×750 (mm ) |
|
Packing |
3-ply wooden case |
|
Accessories |
Protective Glove,Crucible Tong,Crucible,corundum,Vacuum Flange ,User Manual. |
