| Model: | HM-CTH100 |
|---|---|
| Brand: | HarmonyWOLRD/OEM/ODM |
| Origin: | Made In China |
| Category: | Electronics & Electricity / Electronic Instrument / Test Bench |
| Label: | Temperature test , Humidity Test , Environment Chamber |
| Price: |
-
|
| Min. Order: | 1 pc |
| Live Chat: | Last Online:17 Mar, 2023 |

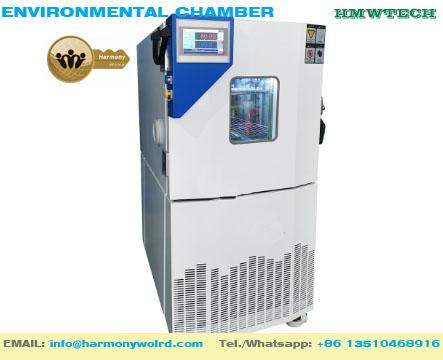

This machine is specially designed for high temperature and high humidity testing of materials. It has beautiful appearance and reasonable structure. It meets the test conditions of high temperature from 55 degrees to 150 degrees and humidity of 80% to 98%. The noise and vibration are very small, almost negligible. The superiority of the structure ensures that the failure rate is extremely low and durable during use, which is adopted by the majority of material manufacturers.
FEATURES OF THE MACHINE
(1). To meet the temperature of 85 ºC, humidity 85% test;
(2). To meet the temperature 60 ºC, humidity 90% test;
(3). To meet the temperature 65 ºC, humidity 95% test;
(4). Test within the range of temperature 55ºC~150ºC and humidity 80%~98%;
(5). The machine is ultra-quiet, the failure rate is extremely low, it can be used continuously for a long time, and the service life is long;
SPECIFICATION
| Temperature range | 55℃～150℃; |
| Humidity range | 80%～98%RH; |
| Heating rate | about 3℃/MIN; |
| Control uniformity | temperature ±1.0℃, humidity ±3.0%RH; |
| Internal dimensions | W50×H50×D40cm; |
| External dimensions | W78×H157×D105cm; |
| Space requirements | W140×H200×D137cm; |
| Interior chamber material | mirror stainless steel plate (SUS#304); |
| Exterior chamber material | first-class steel plate electrostatic spraying; |
| Test hole | 1 100mm hole on the left side of the body, with 1 silicone plug; |
| Standard configuration | 2 pieces of stainless steel SUS#304 grid sample rack, each layer of sample is not more than 10 kg; |
| 1 spare special damp cloth; | |
| Optional | a set of pure water generation equipment; |
| Payment Terms: | TT / LC |
|---|---|
