| Model: | Wanlisp2-250K80 |
|---|---|
| Brand: | wanlisonic |
| Origin: | Made In China |
| Category: | Agriculture & Foods / Processed Food / Other Processed Food |
| Label: | cookies cutting , cutting machine , ultrasonic cutting |
| Price: |
US $16000
/ pc
|
| Min. Order: | 1 pc |
| Live Chat: | Last Online:09 Jun, 2022 |
Zhangzhou Wanli Machinery Co., Ltd.
Excellent Quality, Excellent Price & Excellent Service
Tel: 0086-134-0097-9434 Email:wanlisales321@163.com Website:www.wlfoodmachinery.en.alibaba.com
Products Introduction

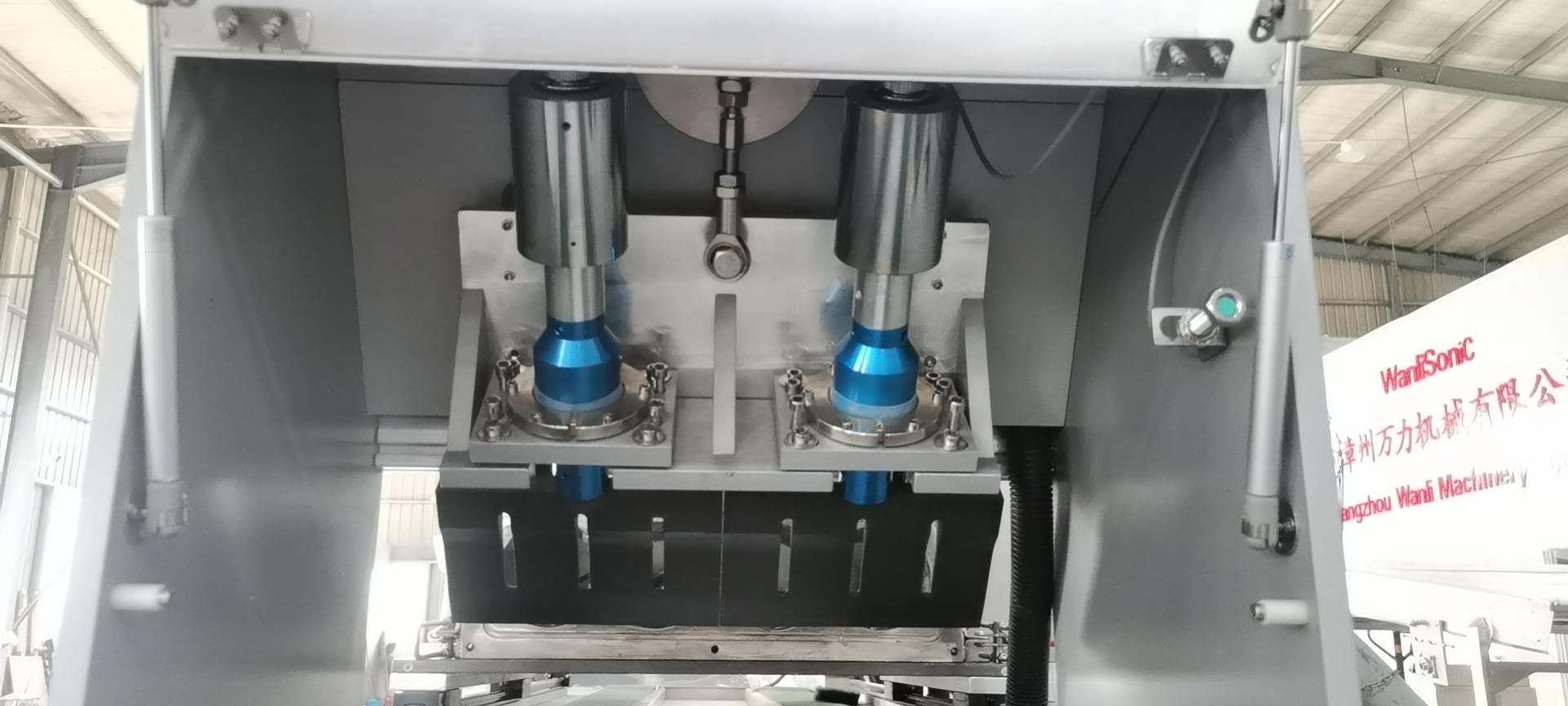

v Wanli ultrasonic cutting achieves no friction, no pressure cutting mode.
v It can cut sticky food such as cream jam smoothly and beautiful without sticking knife
v Automatic product positioning, Omni-directional cutting according to customer’s needs
v The cutting product can be automatically positioned and slitting according to the pre-entered parameters
Wanlisp2-250K800L3500
It uses 4-axis servo driver system, can be applied to steel slat type of cake production line, the product can be cut into thin slices with a minimum of 1.5 mm ,with the advantage of high output, continuous cutting, convenient operation, automatic tracking, low failure rate, and highly automated, which make it can achieves 180 cuts/minutes, besides of frequency ultrasonic scan and fault indicator lamp, this type has flip detection to avoid accidents.
Standard Parameter
|
Model |
Wanlisp2-250K800L3000 |
|
Dimensions |
L3000*W800*H1500mm |
|
Weight |
Net Wt. 300KGS, Gross Wt.350KGS |
|
Voltage |
220V |
|
Rated power |
4000W |
|
Frequency |
50Hz-60Hz |
|
Cutting speed |
30-120 cuts/minute( adjustable) |
|
Number of blades |
2 |
|
Blade materials |
Titanium Alloy |
|
Blade size |
250mm |
|
Cut type |
slices |
|
Maximum cutting size |
Width 500mm, height up to 80mm |
|
Material of machine frame |
Stainless Steel |
|
Automatic belt convey |
Yes |
|
Convey speed |
0-3000mm |
|
Safety protection system |
Security door, frequency ultrasonic scan and fault indicator lamp |
|
Control System |
Four-axis Control System |
|
Cutting knife control system |
Servo motor |
|
Cutting thickness |
≥1.5mm |
Woking Video:
Copy this address to open YouTube: https://youtu.be/EPGU3Ri5B9s
