| Model: | RL-H80 |
|---|---|
| Brand: | Reliablerfid |
| Origin: | Made In China |
| Category: | Industrial Supplies / Other Industrial Supplies |
| Label: | handheld PDA , Android PDA , Industrial pda |
| Price: |
US $245
/ pc
|
| Min. Order: | 1 pc |
| Live Chat: | Last Online:16 Feb, 2020 |

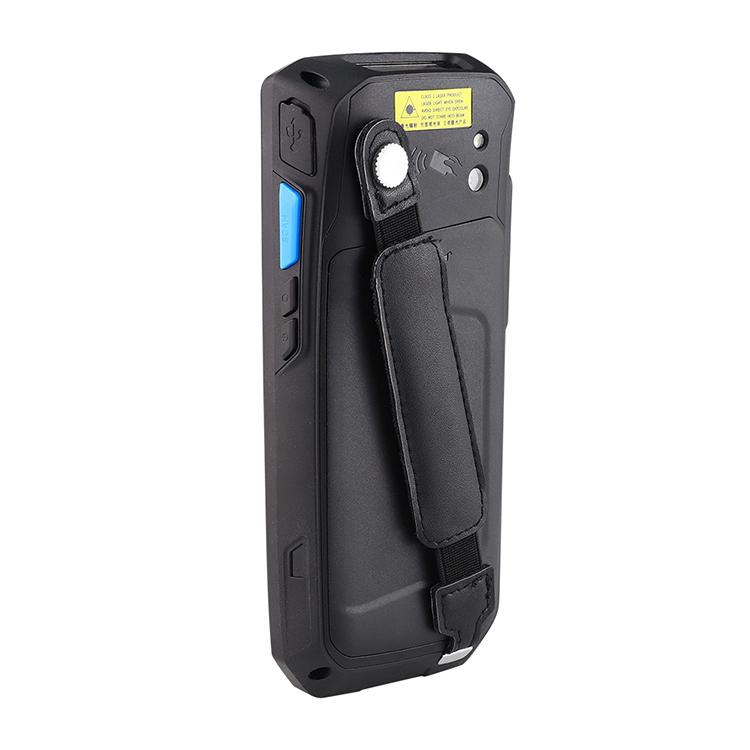

RL-H80 is an Android r ed Handheld Terminal PDA. high-performance, high-reliability industrial-grade handheld barcode data terminal based on the Android 8.1 operating system. It has strong and stable performance, light and durable appearance, and supports 1D/2D barcode scanning, NFC and GPS. Positioning, photo taking, voice communication, Wi-Fi, Bluetooth, 2G/3G/4G and other functions.
|
Model Number |
RL-RH80 |
|
|
Performance |
||
|
Quad-core
|
||
|
CPU |
Cortex-A53 64bit Quad-core 2.0GHz |
|
|
RAM+ROM |
2GB+16GB |
|
|
Expansion |
Supports up to 128 GB Micro SD card |
|
|
Operating System |
Android 8.1 |
|
|
Octa-core |
|
|
|
CPU |
Cortex-A53 64bits Qcta-core 2.0GHz |
|
|
RAM+ROM |
3GB+32GB |
|
|
Expansion |
Supports up to 128 GB Micro SD card |
|
|
Operating System |
Android 9.0 |
|
|
Communication |
||
|
Quad-core |
||
|
WLAN |
IEEE802.11 a/b/g/n/ac, 2.4G/5G dual-band, internal antenna |
|
|
WWAN |
2G: GSM 850/900/1800/1900MHz |
|
|
3G: WCDMA: WCDMA（850/900/1900/2100MHz） |
||
|
4G：FDD:B1/B3/B4/B7/B8/B12/B20 |
||
|
TDD:B38/B39/B40/B41 |
||
|
Bluetooth |
Bluetooth v2.1+EDR,3.0+HS,v4.1+HS, Transfer distance 5-10m |
|
|
GPS |
GPS/AGPS, GLONASS, BeiDou |
|
|
Physical Characteristics |
||
|
Dimensions 166mm×77.5mm×22mm / 6.53 x 3.03 x 0.87in |
||
|
Weight ＜500g |
||
|
Display 4.5'' IPS FHD 480x854 |
||
|
Touch Panel Corning Gorilla Glass, multi-touch panel, gloves and wet hands supported |
||
|
Power Li-ion, rechargeable, 4200mAh |
||
|
Standby: over 350 hours
|
||
|
Continuous use: over 12 hours (depending on user environment) |
||
|
Charging time: 3-4 hours (with standard adaptor and USB cable)
|
||
|
Expansion Slot 1 slot for SIM card, 1 slot for TF card, PASM x2, POGO Pin X1 |
||
|
Interfaces USB 2.0 Type-C, Support OTG USB 2.0 Type-C, OTG
USB 2.0 Type-C, OTG
|
||
|
Audio Speaker, microphones
|
||
|
Keypad Support touch screen soft keyboard and physical keyboard |
||
|
Sensors Gravity sensors, vibrating motors |
||
|
User Environment |
|
|
|
Operating Temp. |
-4°F to 122°F / -20°C to 50°C |
|
|
Storage Temp. |
-40°F to 158°F / -40°C to 70°C |
|
|
Humidity |
5%RH - 95%RH non condensing |
|
|
Drop Specification |
Multiple 1.5m/4.9ft drops (at least 20 times) to the concrete across the operating temperature range
|
|
|
|
||
|
Tumble Specification |
500 x 0.5m/1.6ft falls at room temperature |
|
|
Sealing |
IP65 |
|
|
Developing Environment |
||
|
SDK Software Development Kit |
||
|
Language Java |
||
|
Tool Eclipse / Android Studio |
||
|
Data Collection |
||
|
Camera
|
8MP Autofocus with flash /Support auto - focus, flash, anti - shake, macro shooting
|
|
|
Barcode Scanning (Optional) |
||
|
1D Linear Scanner
|
Zebra SE966 / Honeywell N4313 |
|
|
1D Symbologies |
Code128,EAN-13,EAN-8,Code39,UPC-A,UPC-E,Codaber,Interleaved 2 of 5,China post 5,ISBN/ISSN, Code93,UCC/EAN-128, GS1 Databar,HIBC
|
|
|
|
||
|
2D Imager Scanner |
NSL EM3090,NSL EM6601; Honeywell: N6603
|
|
|
2D Symbologies |
PDF417,MicroPDF417,GS1 Composite,Aztec Code,Data Matrix,QR Code,Micro QR Code, MaxiCode,Hanxin Code
|
|
|
|
|
|
|
Language |
|
|
|
Input |
English, pinyin, wubi, handwriting input, support soft keyboard |
|
|
Language |
Simplified Chinese, traditional Chinese, English, Korea, Japan, Malaysia, Singapore language package
|
|
|
NFC (optional) |
|
|
Frequency 13.56MHz
Protocol ISO14443A/B,ISO15693
|
Accessories |
|
Standard AC Adaptor, USB Cable, etc. |
|
Optional Cradle, etc. |
