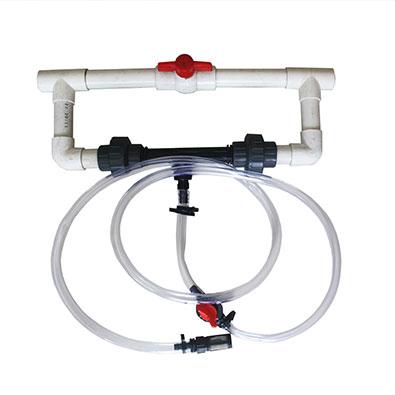

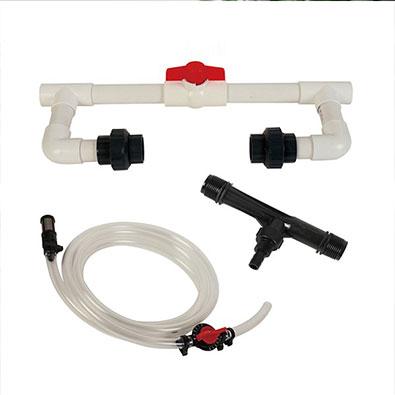

Venturi Fertilizer Injector Economic drip tape Drip Irrigation Accessories supplier
Drip Irrigation Accessories Features:
1. It's used to inhale various soluble fertilizers and inject them to irrigation pipelines with siphon principle. Crops are irrigated with uniformed fertilizers.
2. It operated with principle of pressure difference. When the control valve is turned down, the pressure will be different before and after the valve, thus water flow to low pressure from high pressure. With vacuum suction in fertilizer suction pipe, soluble fertilizers in fertilizer bucket is sucked to venturi and converged in main pipe for fertigation.
3. Working pressure is low (2-4 Bar) without any booster pump.
4. It is applicable for the fields with small irrigation areas, such as greenhouse and open field with small area.
Plentirain drip tape Cautions：
1. Fertilizer injectors shall be selected according to crops and irrigation areas. Too large or small fertilizer injector is not helpful for effective fertigation.
2. If the above can't be confirmed, fertilizer injector with small size can be selected for matching with fittings of fertilizer injector and mounting with main pipe in parallel. The fertilizer is injected by adjustment and control of water absorption. If fertilizer suction amount is confirmed small, suction time can be extended.
Specifications:
|
S/N |
ITEM NO. |
NAME AND SPECIFICATION |
Bag Qty (Pc) |
Quantity (Pcs/Ctn) |
CARTON SIZE (CM) |
G. weight per carton(kg) |
|
1 |
SA0112 |
Suction Assembly, 1/2" , 2m long |
1 |
60 |
54*35*28 |
11 |
|
2 |
SA0134 |
Suction Assembly, 3/4", 2 m long |
1 |
60 |
54*35*28 |
11 |
|
3 |
SA0110 |
Suction Assembly, 1", 2m long |
1 |
10 |
54*35*28 |
7 |
|
4 |
SA0132 |
Suction Assembly , 1-1/2" ( Same as SA0110), 2m long |
1 |
10 |
54*35*28 |
7 |
|
5 |
SA0163 |
Suction Assembly, 2" (63mm), 2m long |
1 |
8 |
54*35*28 |
9 |
|
6 |
VI0112H |
1/2" Venturi Injector , Flow Range: 0.28-0.50m3/h@0.8-4.0bar, Suction Capacity: 63-72L/h |
10 |
150 |
42*28*21 |
6 |
|
7 |
VI0134H |
3/4" Venturi Injector , Flow Range: 0.88-1.54m3/h@0.8-4.0bar, Suction Capacity: 97-113L/h |
10 |
150 |
42*28*21 |
7 |
|
8 |
VI0110H |
1" Venturi Injector , Flow Range: 1.76-4.2m3/h@0.8-4.0bar, Suction Capacity: 158-351L/h |
10 |
120 |
54*35*28 |
16 |
|
9 |
VI01032H |
1-1/2" Venturi Injector, Flow Range: 3.54-8.1m3/h@0.7-4.0bar, Suction Capacity: 544-781L/h |
1 |
60 |
54*35*28 |
11 |
|
10 |
VI01063H |
2" Venturi Injector , Flow Range: 6.88-15.16m3/h@0.8-4.0bar, Suction Capacity: 1580-1728L/h |
1 |
25 |
54*35*28 |
12 |
|
11 |
FT0110 |
1'' (32mm) venturi injector and suction hose assembly (2 m long) |
1 |
30 |
54*35*28 |
10 |
|
12 |
FT0125 |
1-1/2'' (50mm)venturi injector and suction hose assembly (2 m long) |
1 |
20 |
54*35*28 |
12 |
|
13 |
FT0132 |
2'' (63mm) venturi injector and suction hose assembly (2 m long) |
1 |
15 |
54*35*28 |
10 |
|
14 |
BA0112 |
Bypass Assembly, 1/2" |
1 |
30 |
42*28*21 |
12 |
|
15 |
BA0134 |
Bypass Assembly, 3/4" |
1 |
15 |
54*35*28 |
9 |
|
16 |
BA0110 |
Bypass Assembly, 1" |
1 |
10 |
54*35*28 |
10 |
|
17 |
BA0132 |
Bypass Assembly, 1-1/2" |
1 |
8 |
66*36*50 |
18 |
|
18 |
BA0112B |
Bypass Assembly, 1/2" |
1 |
20 |
54*35*28 |
11 |
|
19 |
BA0134B |
Bypass Assembly, 3/4" |
1 |
12 |
54*35*28 |
11 |
|
20 |
BA0110B |
Bypass Assembly, 1" |
1 |
10 |
64*35*30 |
13 |
|
21 |
BA0132B |
Bypass Assembly, 1-1/2" |
1 |
8 |
90*36*50 |
24 |
Technical data:
|
Item No. |
VI0112H |
VI0134H |
VI0110H |
VI01032H |
VI01063H |
|
|
Size |
1/2’’ |
3/4’’ |
1’’ |
1-1/2’’ |
2’’ |
|
|
0.8 bar |
Outlet flow (L/H) |
280 |
880 |
1758 |
3540 |
6880 |
|
Injection rate(L/H) |
63 |
97 |
158 |
544 |
1580 |
|
|
1.0 bar |
Outlet flow (L/H) |
305 |
961 |
2112 |
4140 |
7852 |
|
Injection rate(L/H) |
70 |
107 |
244 |
619 |
1550 |
|
|
1.5 bar |
Outlet flow (L/H) |
353 |
1098 |
2578 |
4980 |
9260 |
|
Injection rate(L/H) |
74 |
114 |
265 |
787 |
1670 |
|
|
2.0 bar |
Outlet flow (L/H) |
389 |
1192 |
3043 |
5880 |
11080 |
|
Injection rate(L/H) |
74 |
113 |
357 |
786 |
1730 |
|
|
2.5 bar |
Outlet flow (L/H) |
420 |
1292 |
3290 |
6480 |
12260 |
|
Injection rate(L/H) |
71 |
113 |
356 |
785 |
1720 |
|
|
3.0 bar |
Outlet flow (L/H) |
448 |
1372 |
3691 |
6720 |
12660 |
|
Injection rate(L/H) |
71 |
113 |
352 |
779 |
1724 |
|
|
3.5 bar |
Outlet flow (L/H) |
447 |
1462 |
3933 |
7704 |
14230 |
|
Injection rate(L/H) |
72 |
113 |
349 |
778 |
1710 |
|
|
4.0 bar |
Outlet flow (L/H) |
501 |
1537 |
4203 |
8100 |
15160 |
|
Injection rate(L/H) |
72 |
113 |
351 |
781 |
1728 |
|
Remarks:
Under 0.8-4.0bar, there's 50% water head loss.
