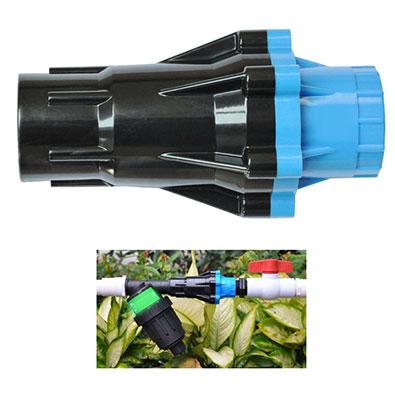

Pressure regulator Pressure Regulator manufacturer Pressure Reducing Valve price
Drip Irrigation Accessories Advantage:
1. Remain the same pressure of outlet envn if the pressure of inlet is changed greatly or the flowing of outlet is variable
2. Fixed inductive diaphragm inside, reaction sensitivity and High accuracy of Pressure regulation.
3. Large flowing channel without ratainer, Smooth surface inside with low friction.
4. Produced by Reinforced plastic material with excellent hydraulic and mechanical function.
Drip irrigation pipe accessories Application:
1.Working Pressure: 1" 20-150PSI (1.3-10Bar)
2.Installation after filter to protect the drip system or microsprinler damaged by high pressure.
3.Also Suitable to be fixed before sprinker for pressure compensation and uniform flowing.
4.Five type flowing available 15,20,25,30,40PSI to meet different requirement.
Drip irrigation system agriculture Specifications:
|
Product |
S/N |
ITEM NO. |
NAME AND SPECIFICATION |
Bag Qty (Pc) |
Quantity (Pcs/Ctn) |
CARTON SIZE (CM) |
G. weight per carton(kg) |
|
Low flow Pressure Regulator |
1 |
PR013415P |
3/4'' Male*Female thread 15PSI (1 bar), Thread: BSPT, NPT or Hose thread available |
10 |
200 |
42*28*21 |
8 |
|
2 |
PR013420P |
3/4'' Male*Female thread 20PSI (1.3 bar), Thread: BSPT, NPT or Hose thread available |
10 |
200 |
42*28*21 |
8 |
|
|
3 |
PR013425P |
3/4'' Male*Female thread 25PSI (1.7bar), Thread: BSPT, NPT or Hose thread available |
10 |
200 |
42*28*21 |
8 |
|
|
4 |
PR013430P |
3/4'' Male*Female thread 30PSI (2 bar), Thread: BSPT, NPT or Hose thread available |
10 |
200 |
42*28*21 |
8 |
|
|
5 |
PR011015B |
1" Female *Female thread BSP/NPT 15PSI |
1 |
70 |
54*35*28 |
14 |
|
|
6 |
PR011030B |
1" Female*Female thread BSP/NPT 30PSI |
1 |
70 |
54*35*28 |
14 |
Technical data:
|
Item No. |
Size |
Model |
Inlet pressure (PSI) |
Outlet pressure(PSI) |
Flow range(GPM) |
|
PR013415P |
Male*Female thread |
15psi (1.0bar) |
20-80 PSI (1.3-5.5bar) |
13-15PSI (0.9-1.0bar) |
0.5-6.5gpm (110-1430L/H) |
|
PR013420P |
20psi (1.4bar) |
25-90PSI(1.7-6.2bar) |
18-20PSI (1.2-1.4bar) |
||
|
PR013425P |
25psi (1.7bar) |
30-100PSI(2.0-6.9bar) |
23-25PSI (1.6-1.7bar) |
||
|
PR013430P |
30psi (2.0bar) |
40-110PSI(2.7-7.6bar) |
28-30PSI (2.9-3.0bar) |
If you are finding Flat drip irrigation tape, Drip irrigation connector in China, we will be your best choose! We are a Arrow Dripper, Drip Irrigation and Main Line Accessories supplier in China. The company is devoted to supplying high-quality products and satisfactory service to the clients, our strength lies on high-quality product and on-time delivery!
