| Model: | FM-SWD/5KG |
|---|---|
| Brand: | High Accuracy Fi |
| Origin: | Made In China |
| Category: | Industrial Supplies / Packaging Related Machine |
| Label: | 4L lube oil filler , lubricant oil filler , 1L oil weigh filler |
| Price: |
US $4600
/ SET
|
| Min. Order: | 1 SET |
| Live Chat: | Last Online:04 Nov, 2019 |

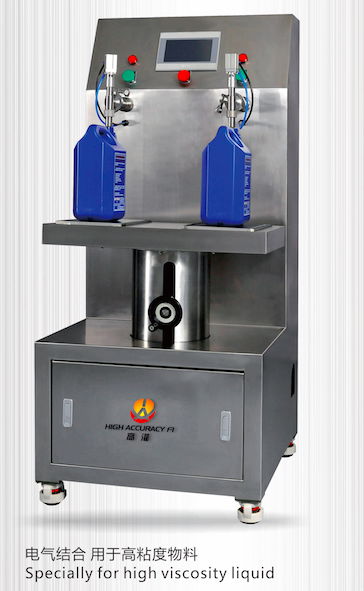

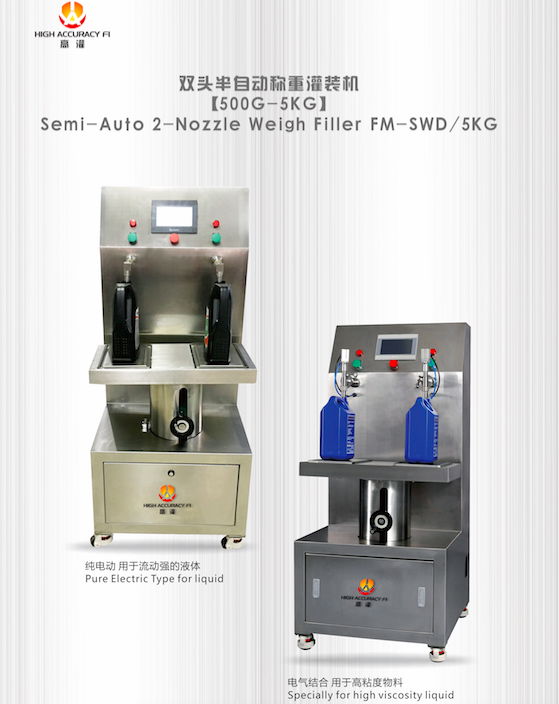

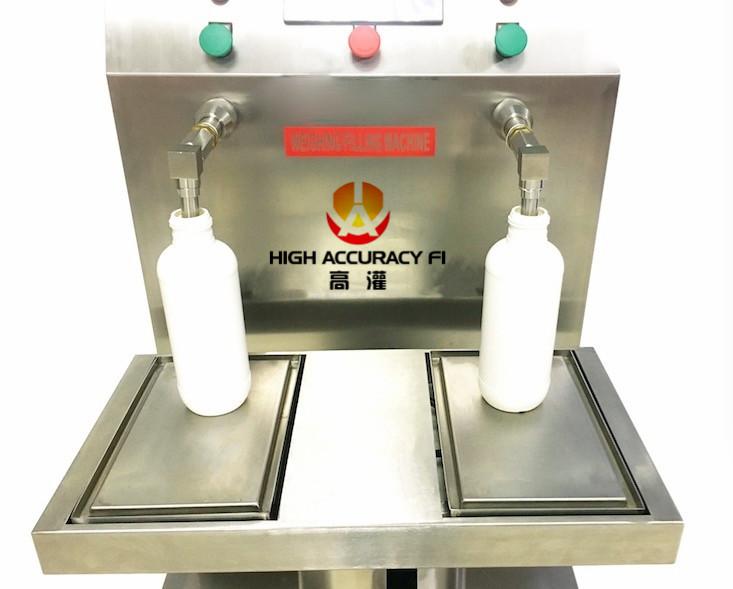

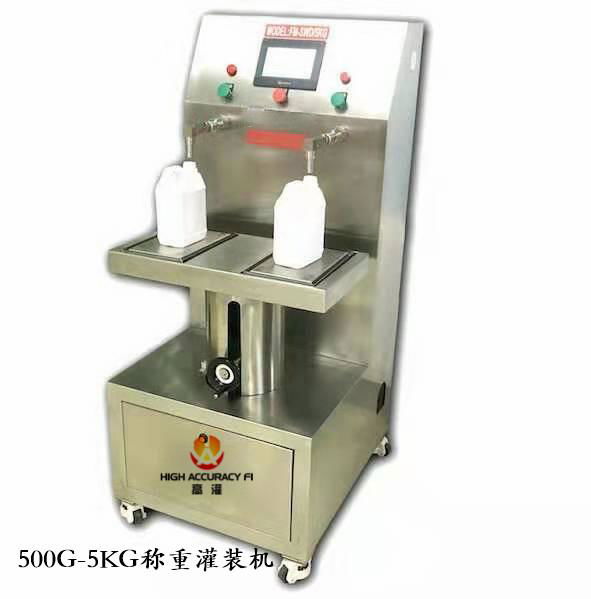

Semi-Auto 2-Nozzle Weigh Filler FM-SWD/5KG 500G-5KG
APPLICATION
FM-SW Series High Fi Weighing filling machine, the principle is that setting weight under control of PLC program of weighing load cell platform. It owns high accuracy & technology, it’s a new type machine integrating mechanism, electricity and instrument. It changed unmeasurable defect of traditional flow meter type filling accuracy for high viscosity liquid. It’s the ideal equipment that combine weighing and filling after civilized production and nationally stipulated elimination of level scales. Net filling each time, operator put container on weighing platform under filling nozzle, start program, nozzle goes down & open filling nozzle, liquid fast filling then slow filling with small dose correction metering. Stop filling when meeting setting weight, complete whole filling process. This weighing filling machine is suitable for various liquid with viscous、non-viscous、corrosive、non-corrosive、non-foaming liquid.
FEATURE
Load cell & variable frequency pump.
increase filling accuracy.
change to electric & air combination mode.
is SUS304 material. |
TECHNICAL PARAMETER
|
Model |
Filling Range |
Filling Speed |
Filling Accuracy |
Liquid In-feed port pressure |
Power |
Power supply |
Size [MM] |
Weight |
|
FM-SWD/5KG |
0.5-5kg |
10-16 bottles/min |
≤0.2% |
0.3～0.35MPa |
≤3.5KW |
AC380V 50HZ |
650x750x1480 |
90 kg |
Above is standard data, different product working status/environment/material viscosity may effect above data.
| Payment Terms: | 50% downpayment, and balance before delivery. |
|---|---|
