| Model: | - |
|---|---|
| Brand: | - |
| Origin: | Made In China |
| Category: | Electronics & Electricity / Electronic Components / Relay & Contactor |
| Label: | Power Relays , Telecom Relays , Automotive Relay |
| Price: |
-
|
| Min. Order: | 500 pc |
| Live Chat: | Last Online:21 Sep, 2019 |

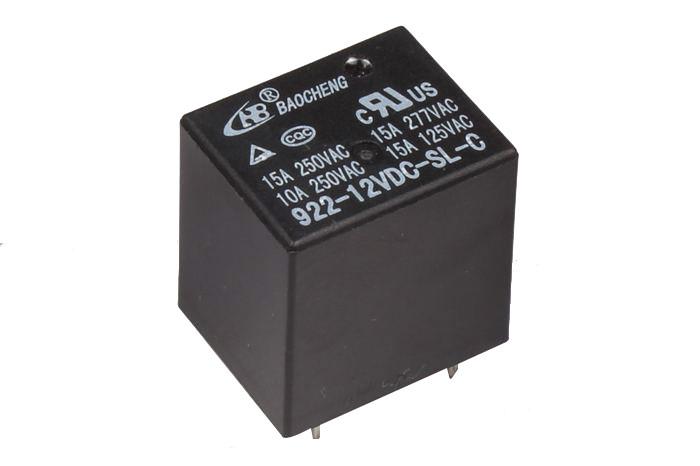

RELAY TYPE: 922 Relay
Baocheng export excellent power relay, telecom relays and automotive relays.
Normal 15A switching capability
Standard PCB layout
Dielectric strength between coil and contact 1.5KV
NO,NC,NO&NC contact form available
Option for sealed and flux-tight type
UL insulation grade: Class F
Environmental friendly product
Outline dimension: 20.3 x 16.5 x 20.5mm
Baocheng supply electromagnetic relays, power relays, telecom relays and automotive relays. We wish to hand in hand with global customers to pursuit excellent quality and cast perfect products to share happiness life bring by technology.
|
Contact Ratings |
|
|
Contact Form: |
1A, 1B, 1C |
|
Contact Material: |
AgCdO, AgSnO2 |
|
Contact Load Capacity: |
1A:10A/250VAC;12A/125VAC;15A/250VAC,277VAC |
|
1B:10A/250VAC |
|
|
1C:10A/250VAC;12A/125VAC;15A/250VAC,277VAC |
|
|
Max. Switching Current: |
20A |
|
Max. Switching Power: |
4155VA/420W |
|
Mechanical Endurance: |
1*107OPS |
|
Electrical Endurance: |
1*105OPS |
|
Technical Ratings |
|
|
Insulation Resistance: |
100MΩ |
|
Dielectric Strength(Between coil&contact): |
1500VAC |
|
Operate Time (Max.): |
10ms |
|
Release Time (Max.): |
5ms |
|
Ambient Temperature: |
-40℃ ~ 85℃/105℃ |
|
Terminal Type: |
THT |
|
Coil Ratings |
|
|
Nominal Voltage |
(5-48)VDC |
|
Nominal Coil Power |
0.36W |
| Payment Terms: | TT |
|---|---|
