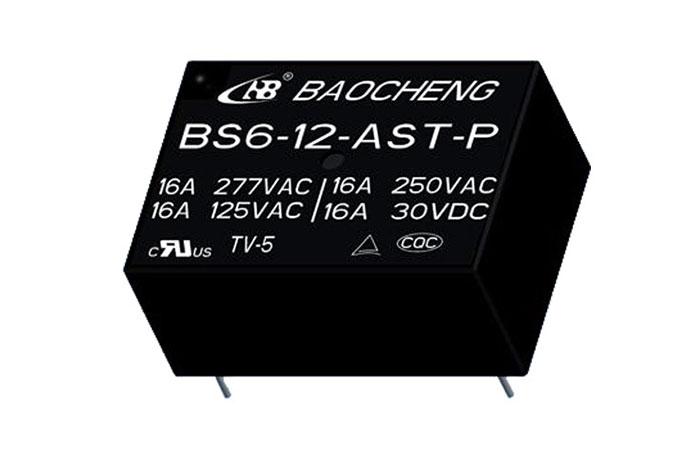

RELAY TYPE: BS6 Relay
Baocheng export excellent power relay, telecom relays and automotive relays.
16A High load capability
THT terminal types for PCB layout
High sensitivity: 200mW
One group of NO contact form
Low height, flat construction
Option for sealed and flux-tight type
UL insulation grade: Class F
Environmental friendly product
Outline dimension: 23 x 16.2 x 10.6mm
Power Relays, Telecom Relays, Automotive Relays, Latching Relays For Sale
|
Contact Ratings |
|
|
Contact Form: |
1A |
|
Contact Material: |
AgCdO, AgSnO2 |
|
Contact Load Capacity: |
1A:16A/250VAC, 30VDC;
|
|
Max. Switching Current: |
16A |
|
Max. Switching Power: |
4000VA/480W |
|
Mechanical Endurance: |
1*107OPS |
|
Electrical Endurance: |
1*105OPS |
|
Technical Ratings |
|
|
Insulation Resistance: |
1000MΩ |
|
Dielectric Strength(Between coil&contact): |
2500VAC |
|
Operate Time (Max.): |
15ms |
|
Terminal Type: |
THT |
|
Coil Ratings |
|
|
Nominal Voltage |
(5-48)VDC |
|
Nominal Coil Power |
0.2W, 0.4W |
