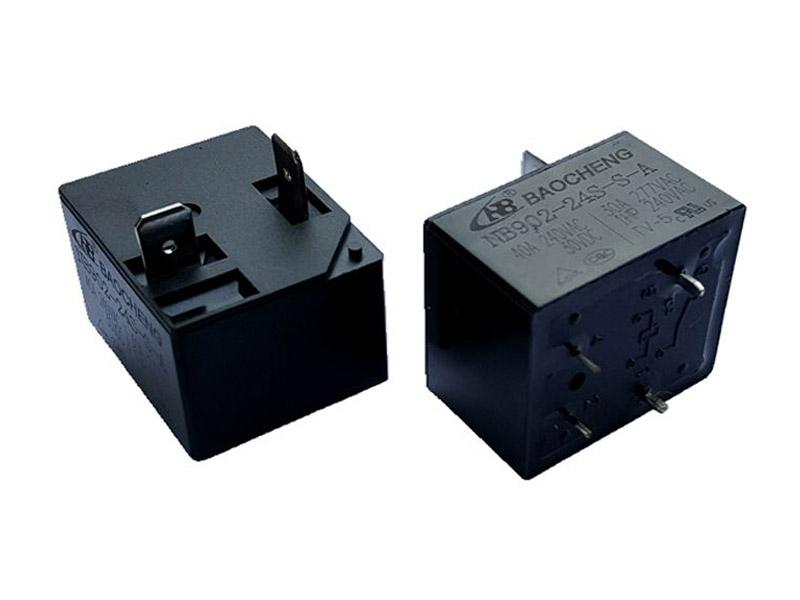

RELAY TYPE: NB902 Relay
Baocheng export excellent power relay, telecom relays and automotive relays.
40A switching capability
THT&QT terminal types for heavy duty
Dielectric strength between coil and contact 2.5KV,
max.4KV
NO,NC,NO&NC contact form available
Option for sealed and flux-tight type
UL insulation grade: Class F
Environmental friendly product
Outline dimension: 32 x 27.2 x 28mm & 32 x 27.2 x
20.5mm
Baocheng supply electromagnetic relays, power relays, telecom relays and automotive relays. We wish to hand in hand with global customers to pursuit excellent quality and cast perfect products to share happiness life bring by technology.
|
Contact Ratings |
|
|
Contact Form: |
1A, 1B, 1C |
|
Contact Material: |
AgCdO, AgSnO2 |
|
Contact Load Capacity: |
1A:40A/240VAC,30VDC |
|
1B:40A/240VAC,30VDC |
|
|
1C:40A/240VAC,30VDC |
|
|
Max. Switching Current: |
40A |
|
Max. Switching Power: |
9600VA/1200W |
|
Mechanical Endurance: |
1*107OPS |
|
Electrical Endurance: |
1*105OPS |
|
Technical Ratings |
|
|
Insulation Resistance: |
1000MΩ |
|
Dielectric Strength(Between coil&contact): |
2500VAC |
|
Operate Time (Max.): |
15ms |
|
Release Time (Max.): |
10ms |
|
Ambient Temperature: |
-40℃ ~ 85℃/105℃ |
|
Terminal Type: |
THT & QT |
|
Coil Ratings |
|
|
Nominal Voltage |
(5-110)VDC |
|
Nominal Coil Power |
0.9W |
