| Model: | SG-FDD2W |
|---|---|
| Brand: | Safe Guard |
| Origin: | Made In China |
| Category: | Security & Protection / Other Security & Protection |
| Label: | IP network transceiv , radio communication , ip radio |
| Price: |
-
|
| Min. Order: | 2 pc |
| Live Chat: | Last Online:16 Nov, 2016 |

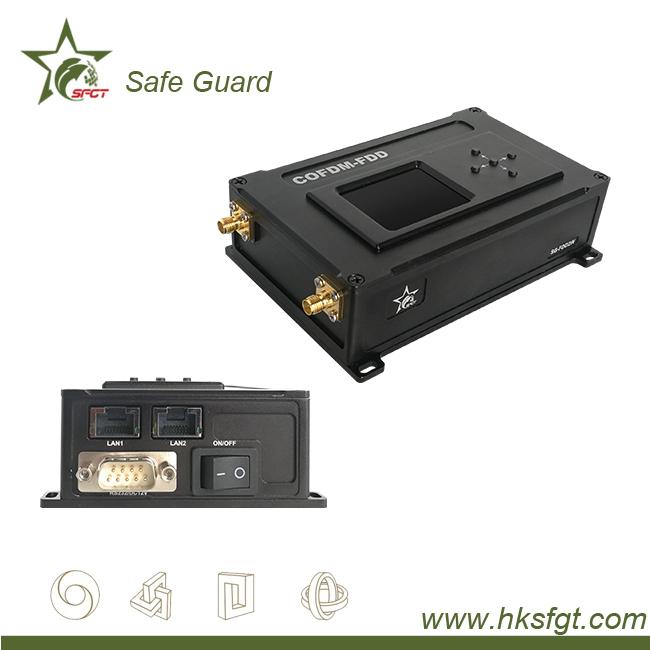

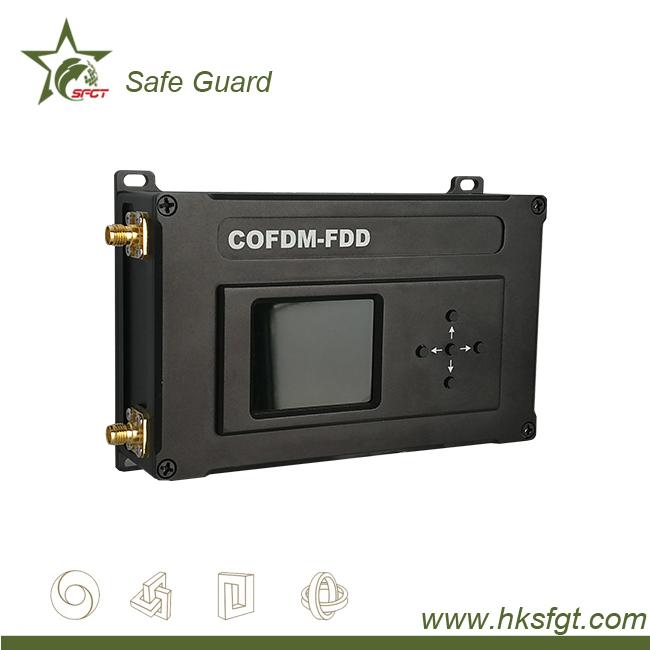

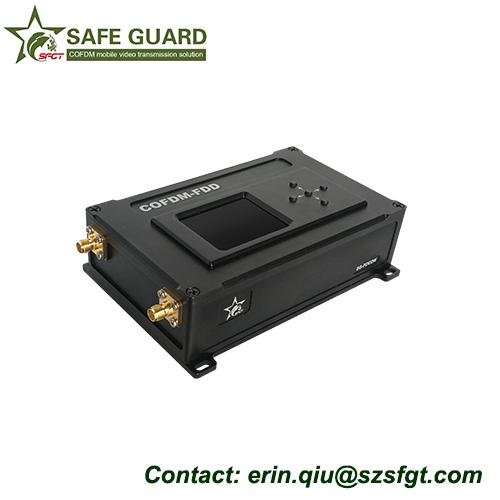

2W Robust Bi-directional Wireless IP Network Transceiver
SG-FDD2W is a new generation digital 2 way duplex transceiver integrated with COFDM (Coded Orthogonal Frequency Division Multiplexing) modulation and FDD (Frequency-division duplexing) technology, and so have NLOS (non-line-of sight) diffraction and strong anti-interference ability. It has two different uplink & downlink carrier frequencies for signal transmitting and receiving, also compatible with super-linear digital predistortion, super narrowband (1MHz), low-latency and high-sensitivity capacity, that makes it ideal for long distance IP video data transmission.
As it’s lightweight and small size, It is mainly used for public security system, emergency, system, police, military etc secured video data transmission.
Feature:
Specification:
|
Model |
SG-FDD2W |
|
Power supply |
DC12V/1.5A |
|
TX output frequency |
300-3300MHz selection, step in 1MHz |
|
RX output frequency |
300-3300MHz selection, step in 1MHz |
|
RF bandwidth |
1/2/4/8MHz |
|
RF power output |
33dBm |
|
Encryption/decryption mode |
AES128 bits(user-defined password) |
|
Modulation |
COFDM 2K |
|
Transfer rate |
2x30 Mbit/s uplink and downlink |
|
RF connector |
SMA type *2 |
|
Ethernet |
Standard RJ45 port *2 |
|
Serial port |
RS232 serial port |
|
Baud rate |
115200bps maximum |
|
LCD panel with keypad |
Easy to set the related parameters |
|

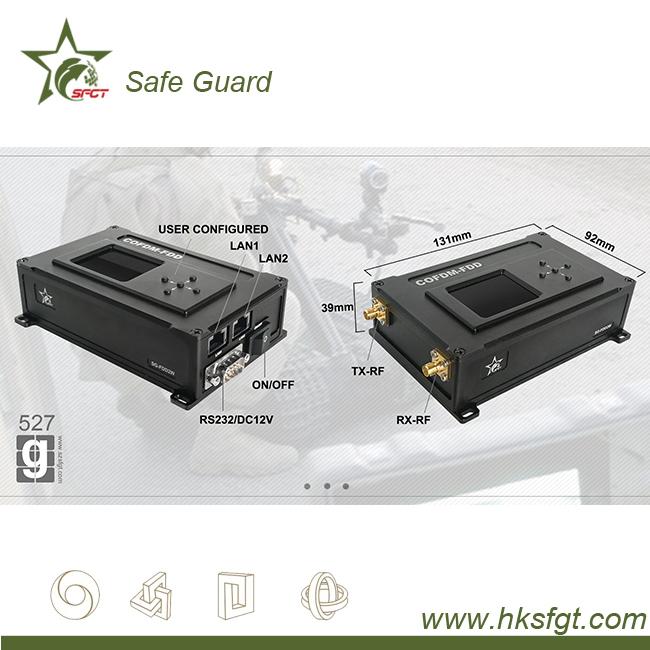

Dimension |
131*92*39mm |
|
Weight |
527g |
