four-channel briefcase diversity receiver embedded DVR & LCD display

Model:SG-CH4
Brand:Safe Guard
Origin:Made In China
Category:Security & Protection / Other Security & Protection
Label:diversity receiver , four-channel receive , DVR receiver
Price: -
Min. Order:1 set
Inquire Now Add to Basket

Member Information

Detail

Shenzhen Safe Gaurd Co., Ltd

Free MemberGuang Dong - China
Live Chat:
Last Online:16 Nov, 2016

Product Description

 four-channel briefcase diversity receiver embedded DVR & LCD display








Features of four-channel briefcase diversity receiver embedded DVR & LCD display:



*Four H.264 narrow-band COFDM receiver;

*Four-channel DVR complete with 60G solid-state flash drive memory;

*Provides simultaneous reception and recording of four COFDM transmissions;

*Modular design and highly integrated;

*17" Standard Samsung LCD screen;

*Four composite video and audio outputs;

*Support 4 channels 48hours continuously recording;

*Support RS485/RS232 and av signals transmission simultaneously;

*Advanced data encryption for the security;

*NTSC/PAL automatically adapt, support user adjustable;

*Supports high-speed mobile NLOS ( Non Light Of Sight ) reception;

*Adjustable working frequency, bandwidth, RF power and etc;

*COFDM modulation, Stable signal reception;

*Custom made for HDMI/SDI hd interface output.







 Parameters of four-channel briefcase diversity receiver

Frequency

300-800MHz/1.2G/2.4G/5.8GHz (optional)

Memory

60G/120G, 4 channel 48 hours recording

LCD monitor

17inch

 RF Level Input

-105dBm~-20dBm

RF Interface

N(F)

AV output

BNC

Modulation

COFDM

Power supply

AC220V / DC12V

Bandwidth

2/2.5/4/8MHz(adjustable)

Constellation

QPSK,16QAM

Data control interface

Standard RS232/RS485/TTL level,9600,8,N,1

RS232/RS485 data interface

Standard RS232/RS485 level ,support 1200~115200

FEC

1/2,2/3,3/4,5/6,7/8(optional)

Guard Interval

1/32,1/16,1/8,1/4 (optional)

Video Output

1 line PAL/NTSC analog video

 Video Decoding

 ISO/IEC13818-2  MPEG-2/H.264

Revolution

720×576(PAL) , 720×480(NTSC)

Lines of horizontal

625 or 525 Line

Audio Output

Analog stereo left and right channels

Data encryption

AES / ALLTECH Basic scrambling

Voltage

AC220V±20V, DC14V~DC16V

Work environment

-30~70°

Built in Battery

30000mA,support 4ch 48 hours recording

Size

520*430*210mm

Weight

22kg



4ch wireless video receiver.jpg



.jpg



Application



The COFDM wireless video transmission system is wildly used in UAV drone, live broadcast, maritime surveillance, security protection, and so on.

The max transmitter signal that 4-channel receiver can receive is 4 transmitters’.











Customization

questions for inquiry.jpg

Contact



Payment Terms:T/T

Product Image

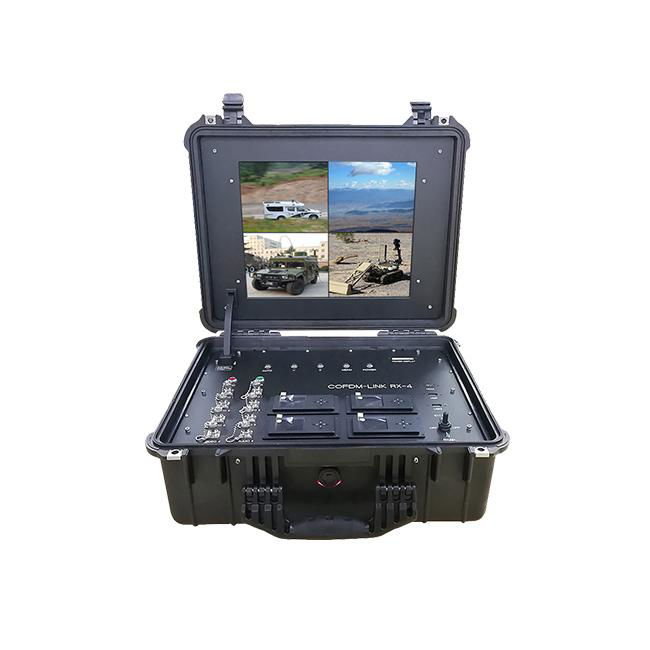

four-channel briefcase diversity receiver embedded DVR & LCD display 1
