| Model: | - |
|---|---|
| Brand: | - |
| Origin: | Made In China |
| Category: | Electronics & Electricity / Other Electrical & Electronic |
| Label: | power adapter , adapter , charger |
| Price: |
US $2.5
/ pc
|
| Min. Order: | 1000 pc |
| Live Chat: |  | Last Online:21 Dec, 2016 |

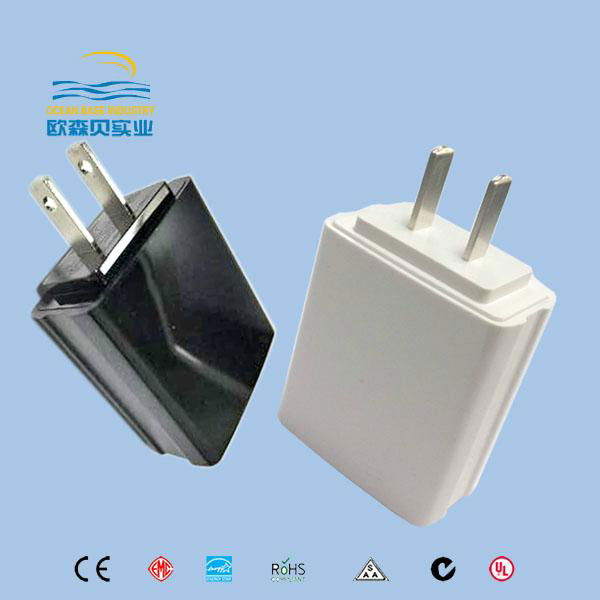

HOT SALES 5V2A USB Power Adapter with UL PSE approval
|
10W ac dc switch mode power supplies(JP/US plug) INPUT/OUTPUT SPECIFICATIONS: |
|
| Input Voltage: | AC 100V-240V,50/60Hz |
| Range Voltage: | AC 90V-130V,47/63Hz |
| Output Power: | 10W |
| Output Voltage: | 3V-12V |
| Output Current: | 0.15A-1A |
| Over Current Protection: | 120% Min |
| Over Voltage Protection: | 150% Min |
| Short Protection: | Auto Recovery |
| Load Regulation: | ±5% |
| GENERAL SPECIFICATIONS: | |
| Operating Temperature: | 0 ~ 40°C |
| Operating Relative Humidity: | 5 ~ 95%RH |
| Storage Temperature: | -20 ~ 85 °C |
| Withstanding Voltage: | AC 3000V/Min |
| (between Input & Output),10mA(Max.) | |
| Insulation Resistance: | DC500V 100MΩ(Min.) |
| (between Input & Output) | |
| Efficiency: | 70% Min |
| size: | 57*51*16.5mm(L*W*H) |
| SAFETY: | UL/CUL, PSE-MARK,CCC |
