24W 12V 2ACE approved AC DC power adapter
Product Description
| INPUT/OUTPUT SPECIFICATIONS: |
| Input Voltage: |
AC 100V-240V,50/60Hz |
| Range Voltage: |
AC 90V-264V,47/63Hz |
| Output Power: |
24W |
| Output Voltage: |
5V-24V |
| Output Current: |
1A-4A |
| Over Current Protection: |
120% Min |
| Over Voltage Protection: |
150% Min |
| Short Protection: |
Auto Recovery |
| Load Regulation: |
±5% |
| GENERAL SPECIFICATIONS: |
| Operating Temperature: |
0 ~ 40℃ |
| Operating Relative Humidity: |
5 ~ 95%RH |
| Storage Temperature: |
-20 ~ 85 ℃ |
| Withstanding Voltage: |
AC 3000V/Min |
| |
(between Input & Output),10mA(Max.) |
| Insulation Resistance: |
DC500V 100MΩ(Min.) |
| |
(between Input & Output) |
| Efficiency: |
70% Min |
| size: |
98.5*45.5*30.5mm(L*W*H) |
| SAFETY: |
UL/CUL, PSE-MARK,CCC,FCC,CB,CE,GS |

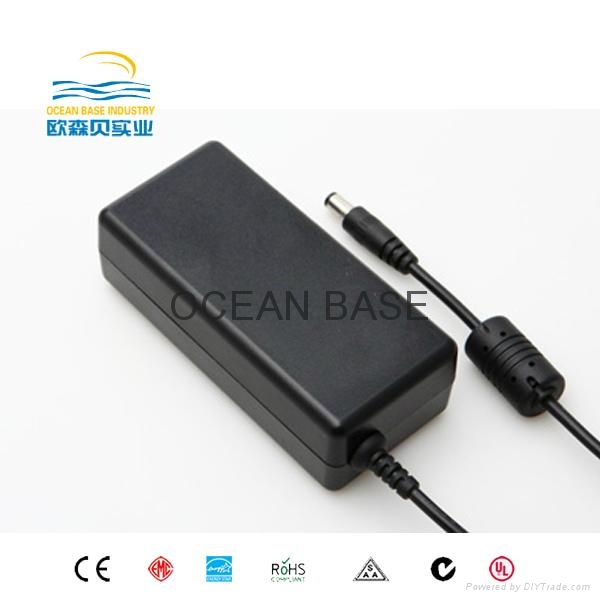

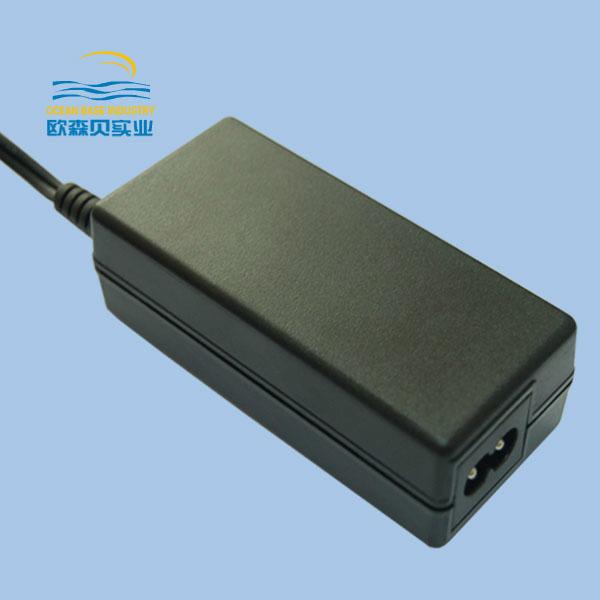

Product Image
