3 Strand Rope

Model:HY0012
Brand:HY
Origin:Made In China
Category:Transportation / Vessel Parts
Label:3 strand pp rope , 3 strand nylon rope , 3 strand pes rope
Price: US $2 / KG
Min. Order:500 KG
Inquire Now Add to Basket

Member Information

Detail

Yangzhou Huyuan Rope Net Co., Ltd

Free MemberJiang Su - China
Live Chat:Last Online:14 Mar, 2016

View all products. (15)

Product Description

roduct Name: 3/4/6 Strand Rope

Material: PP, polyester, nylon, uhmwpe, etc.



Length per coil: 220m

Spliced strength: ±10% lower

Weight and length tolerance: ±5%

MBL: ISO 2307 strandard

Other sizes can be customized



Parameter Table

dia PA multi PA yarn PP multi PP mono Polyester PES/PP mixed
mm ktex kn ktex kn ktex kn ktex kn ktex kn ktex kn
4 10 3.7 10 2.6 6.3 2.3 6 2.1 12 2.9 7 2.8
6 22 7.9 22 6 18 6.5 17 5.9 27 5.6 17.5 6.8
8 40 13.8 40 10.9 32 11.4 30 10.4 48 10 31 11.9
10 62 21.2 62 15.7 47 16.8 45 15.3 76 15.6 48.5 18.2
12 89 30.1 89 24.1 68 23.9 65 21.7 110 22.3 69.9 25.7
14 121 40 121 33 95 32.9 90 29.9 148 31.2 95.1 34.7
16 158 51.9 158 42.5 121 40.7 115 37 195 39.8 124 44.8
18 200 64.3 200 53.9 155 51.9 148 47.2 245 49.8 157 56.1
20 247 79.2 247 66.7 189 62.6 180 56.9 303 62.3 194 68.7
22 299 94 299 80.4 231 75 220 68.2 367 74.7 235 82.1
24 355 112 355 96.3 273 87.7 260 79.7 437 89.6 279 96.3
26 417 129 417 111.5 320 101 305 92.2 512 105 328 113
28 484 149 484 127 373 115 355 105 594 120 380 130
30 555 169 555 143 425 132 405 120 682 134 437 148
32 632 192 632 161 483 146 460 132 778 154 497 167
36 800 240 800 200 614 182 585 166 982 190 629 210
40 987 294 987 241 756 221 720 201 1215 235 776 257
44 1190 351 1190 289 924 266 880 242 1468 275 939 308
48 1420 412 1420 338 1092 308 1042 280 1750 329 1110 364
52 1670 479 1670 393 1281 357 1220 325 2050 384 1320 424
56 1930 550 1930 450 1491 408 1420 371 2380 439 1520 489
60 2176 630 2176 520 1720 460 1750 430 2700 510 1990 600
64 2475 710 2475 780 2000 530 1986 480 3100 590 2270 640
72 3133 880 3133 720 2500 660 2527 610 3818 742 2870 800
80 3868 1100 3868 890 3100 817 3086 740 4636 910 3540 980
88 4680 1300 4680 1100 3810 980 3748 890 5636

Payment Terms:TT/LC

Product Image

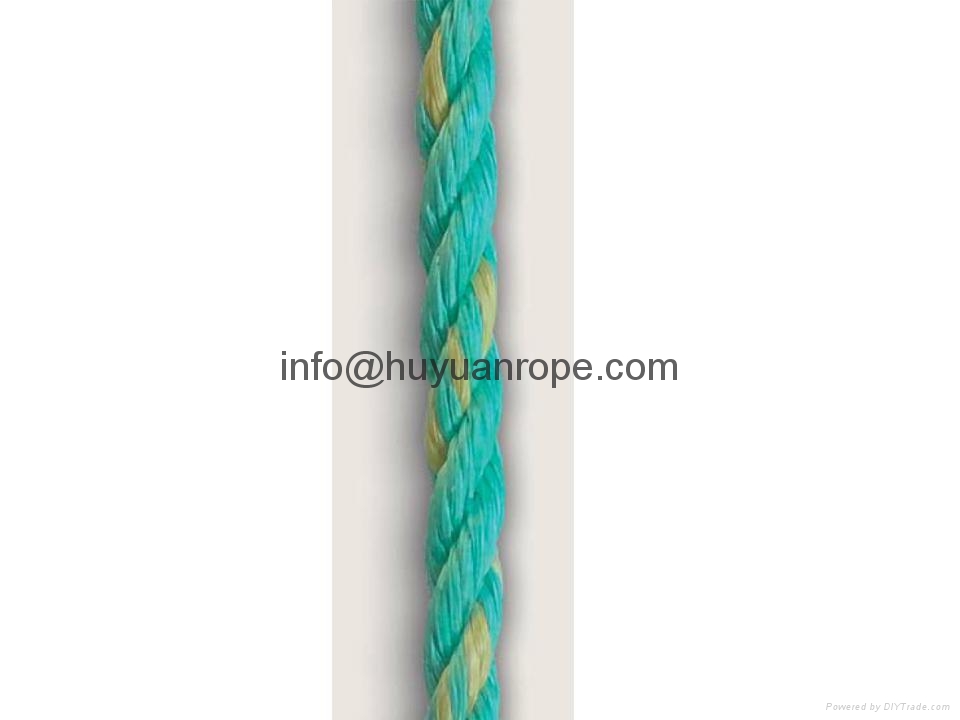

3 Strand Rope 1
Img 1

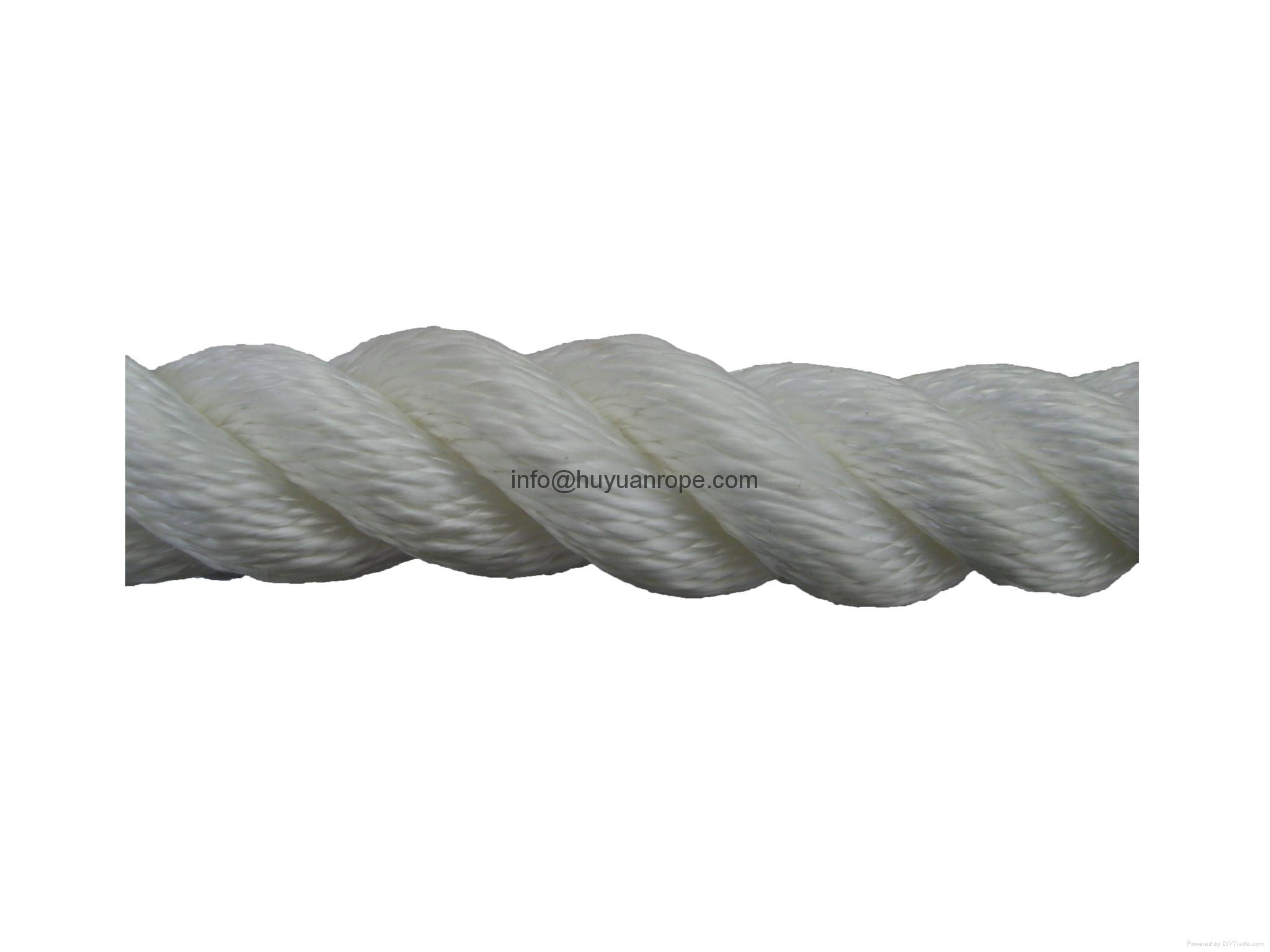

3 Strand Rope 2
Img 2

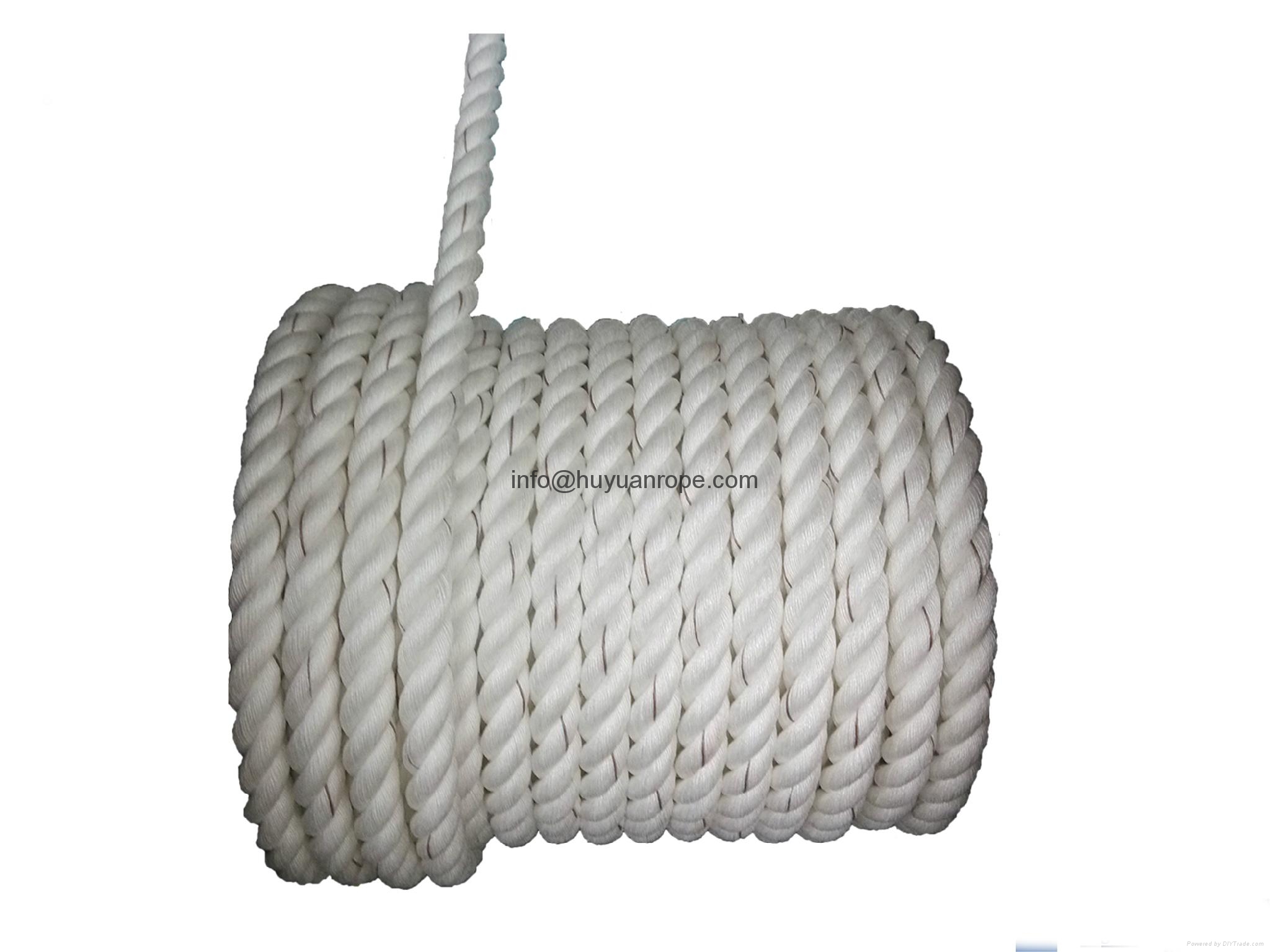

3 Strand Rope 3
Img 3

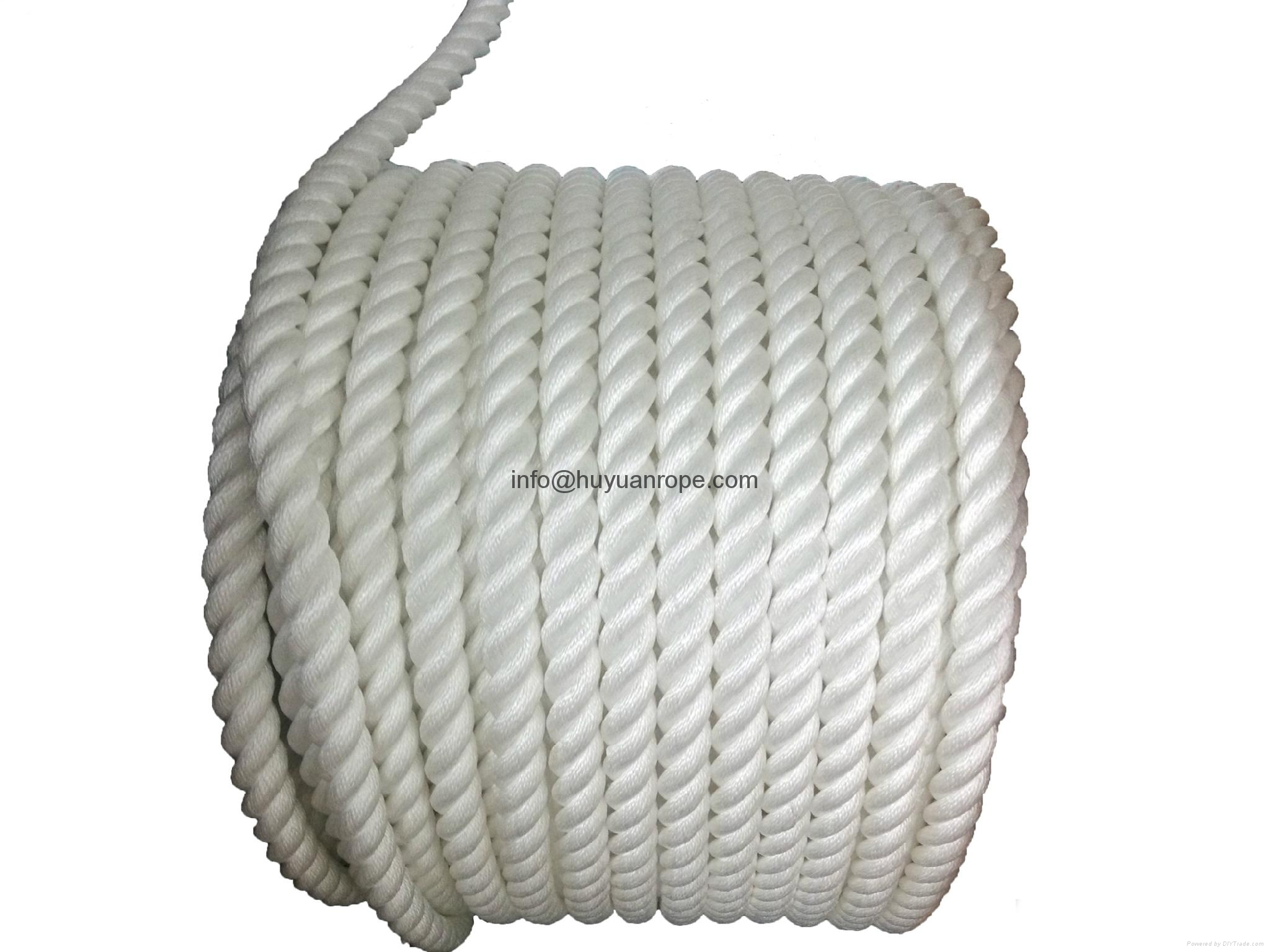

3 Strand Rope 4
Img 4
3 Strand Rope 5
Img 5
