| Model: | HY0005 |
|---|---|
| Brand: | HY |
| Origin: | Made In China |
| Category: | Transportation / Vessel Parts |
| Label: | mixed rope , PP/PES mixed rope , mixed mooring rope |
| Price: |
US $2
/ KG
|
| Min. Order: | 1000 KG |
| Live Chat: | Last Online:14 Mar, 2016 |
Material: high strength PP fiber and polyester

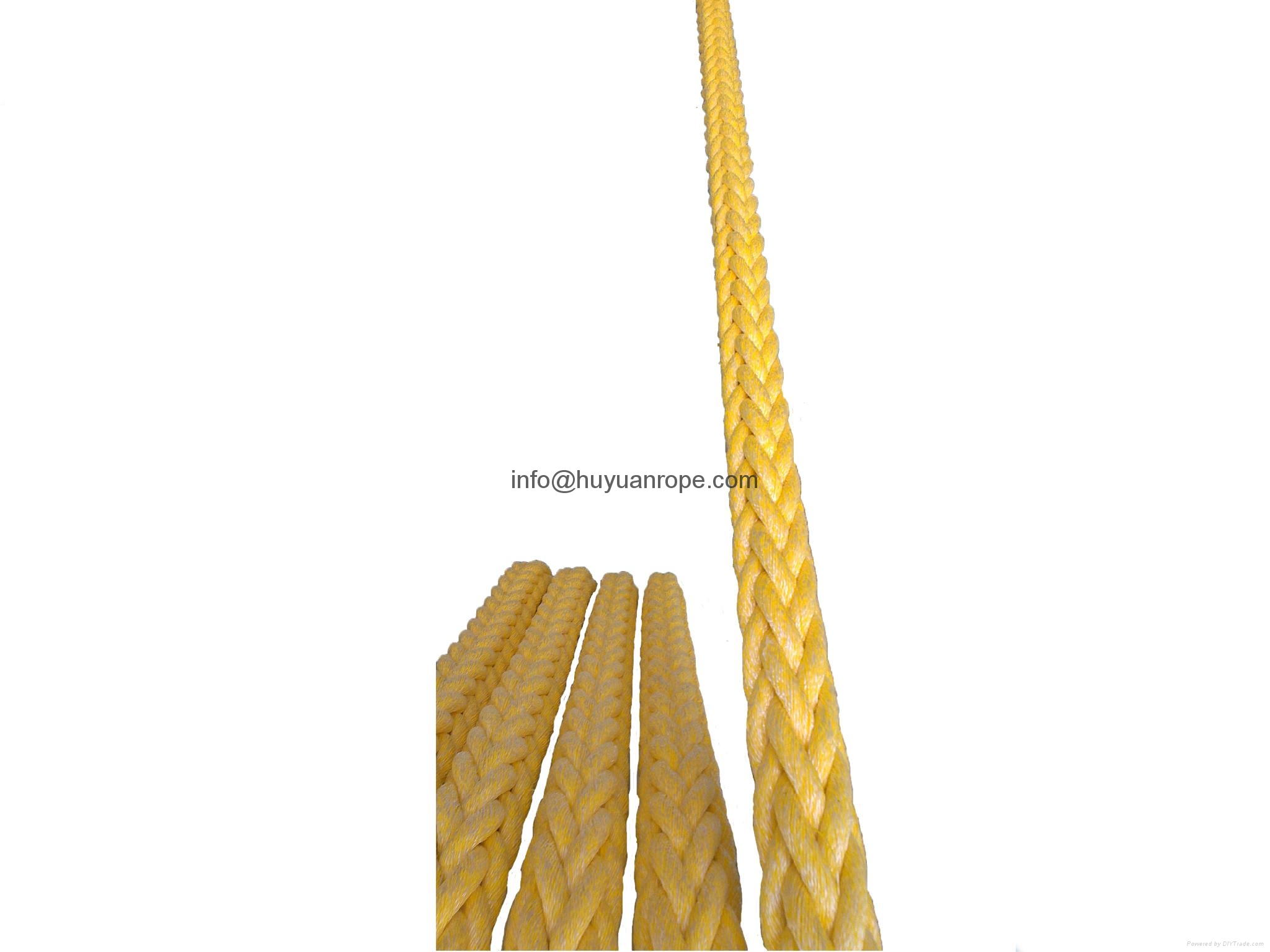

Products Description: Our pp rope is high strength rope which is made of high performance pp fiber and polyester mixed. This perfect combination and structure, making it has low elongation. It can keep better stability and security when using. In addition, it has a good wear resistance and more widely used. They are composed by 8 or 12 strands wharves and each pair braided.
Application: mooring line, anchor line, towing rope
Length per coil: 220m
Spliced strength: ±10% lower
Weight and length tolerance: ±5%
MBL: ISO 2307 strandard
Other sizes can be customized
Parameter Table:
| dia | cir | weight | mbl | ||
| mm | inch | kgs/100m | lbs/100ft | ton | kn |
| 24 | 3 | 33 | 22 | 12.3 | 123 |
| 28 | 3–1/2 | 46 | 30 | 16.6 | 163 |
| 32 | 4 | 59 | 39 | 21.3 | 209 |
| 36 | 4–1/2 | 74 | 49 | 26.5 | 260 |
| 40 | 5 | 90 | 59 | 32 | 314 |
| 44 | 5–1/2 | 109 | 72 | 38 | 373 |
| 48 | 6 | 130 | 86 | 42 | 432 |
| 50 | 6–1/4 | 141 | 93 | 47 | 460 |
| 52 | 6–1/2 | 149 | 98 | 51 | 500 |
| 56 | 7 | 178 | 117 | 59 | 579 |
| 60 | 7–1/2 | 200 | 132 | 67.3 | 660 |
| 64 | 8 | 220 | 145 | 75 | 736 |
| 68 | 8–1/2 | 249 | 165 | 84 | 825 |
| 70 | 8–11/16 | 267 | 176 | 87 | 853 |
| 72 | 9 | 280 | 185 | 94 | 923 |
| 80 | 10 | 340 | 224 | 114 | 1119 |
| 85 | 10–1/2 | 370 | 244 | 130 | 1274 |
| 88 | 11 | 420 | 277 | 138 | 1354 |
| 96 | 12 | 498 | 329 | 163 | 1600 |
| 104 | 13 | 580 | 383 | 192 | 1884 |
| 112 | 14 | 670 | 442 | 221 | 2168 |
| 120 | 15 | 770 | 508 | 253 | 2482 |
| Payment Terms: | TT/LC |
|---|---|
