Model: | - |
---|---|
Brand: | GIGAPA |
Origin: | Made In China |
Category: | Industrial Supplies / Machinery / Hydraulic Pressure Machine & Parts |
Label: | metal baling machine , metal scrap baler |
Price: |
-
|
Min. Order: | 1 pc |
Equipment Introduction:

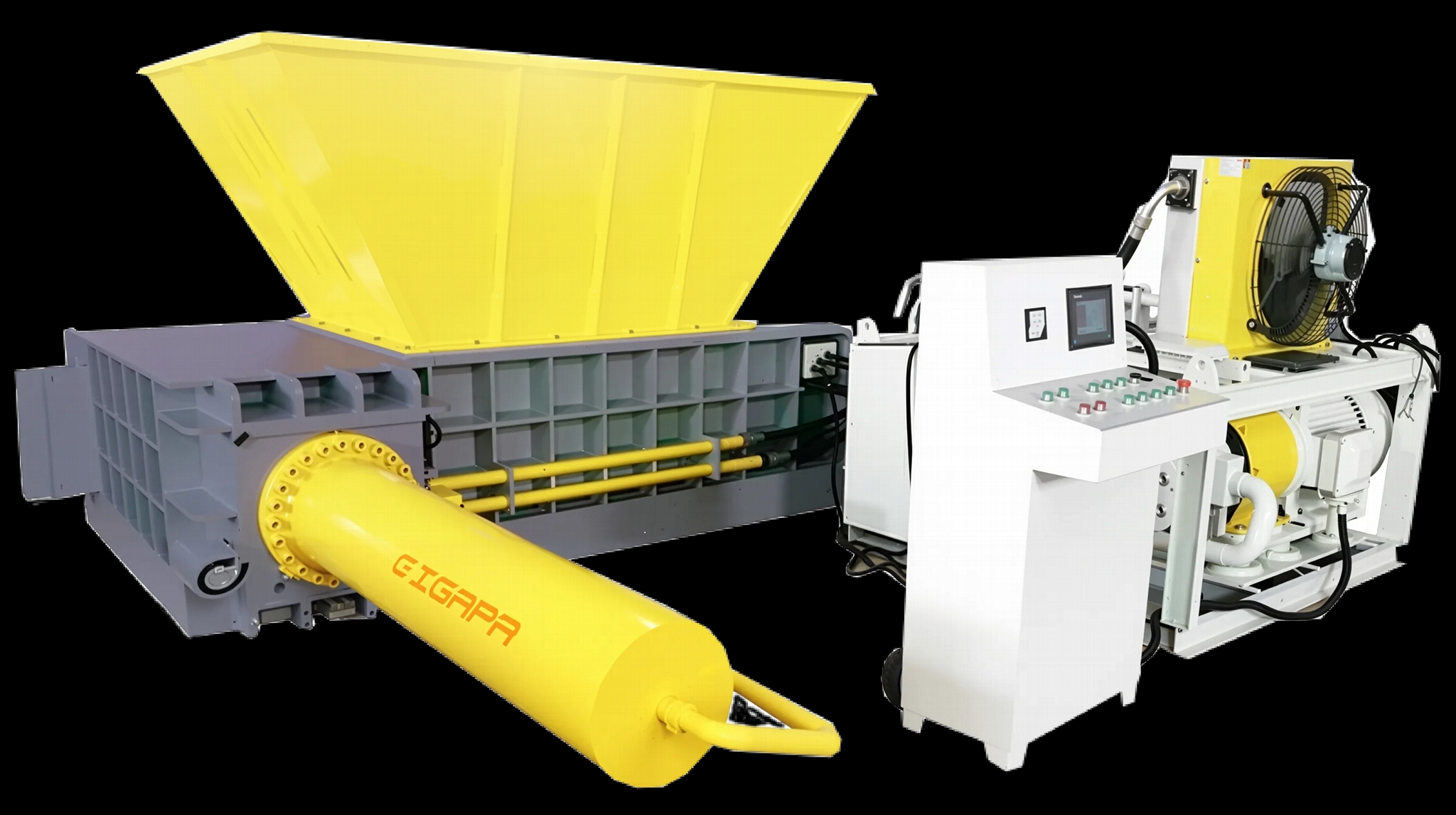

Continuous metal baling machines are also known as hopper-type briquetting presses, primarily used for compressing metal scrap into blocks. They can expel some liquid, increase bulk density, facilitate stacking, and recycle. They are particularly suitable for materials with a high original bulk density. By using a hopper for material storage, they allow for continuous feeding and compression, reducing downtime for loading and enhancing production efficiency. When combined with conveyors, they can easily integrate with existing production equipment to form an automated processing line. Therefore, they are widely used in situations where materials are difficult to compress, where a high degree of automation is required, and where they need to form a production line with other equipment.
Application Range:
General Metal Scraps | Aluminum cans, scrap steel, scrap iron, waste aluminum, waste copper, waste color-coated steel tiles, construction waste rebars, waste aluminum profiles |
Ferrous Metal Granules | Granulated stainless steel chips, granulated steel chips, granulated iron chips, stamping scraps |
Non-Ferrous Metal Granules | Granulated aluminum chips, granulated titanium chips |
Structural Metal Waste | Disassembled car bodies, household appliance shells, computer case shells; aluminum foil sorted from lithium battery electrode pieces |
Manufacturing Byproducts | Granulated chips from refined plate production, thick aluminum sheets/aluminum scraps from rough machining |
Miscellaneous Metal Waste | Silicon steel sheet scraps, oil filters, oil drums, paint cans, aluminum foil product scraps |
Application Industries | Metal Recycling, Automobile Manufacturing, Aerospace, Resource Regeneration, Metal Smelting, Other Industries |
Model Parameters:
Model | GFB-C2510 | GFB-C3016 | GFB-C3520 | GFB-C4020 |
Packaging Size (W×H)(mm) | 250×250 | 300×300 | 350×350 | 400×400 |
Main Cylinder Pressure (T) | 100 | 160 | 200 | 250 |
Sub-Cylinder Pressure (T) | 50×2 | 80×2 | 100×2 | 125×2 |
Hydraulic Power (kW) | 22 | 45 | 30×2 | 45×2 |
Host Size (L×W×H)(mm) | 3150×3300×2150 | 3530×3700×2150 | 3950×4130×2450 | 4500×4600×2450 |
Overall Weight (kg) | Approx. 6300 | Approx. 7500 | Approx. 9000 | Approx. 11100 |
The above models are standard universal models. If you require other models, please contact our staff, and we can also provide customized services according to your needs.
Technical Highlights:
1. Infinite Strength
Utilizing a dual-sided cylinder compression to increase compression pressure and enhance the compression effect.
2. Waste Liquid Channel
Unique channels for liquids and debris ensure a clean and tidy ground surface.
3. Intelligent Control
Engineers have crafted a smart PLC program that easily achieves seamless integration with other equipment.
Working Principle
1. Loading Through the Hopper
Metal scrap is first loaded into the machine’s hopper either manually or via a conveyor belt. The hopper provides a storage space for the metal scrap and ensures that the scrap enters the compression chamber evenly. The hopper’s size may vary depending on the model, determining the amount of metal scrap it can hold at one time.
2. Compression Process
3. Baling and Ejection
Once the metal scrap has been compressed to the desired volume and density, the machine activates the tying system. The tying system typically uses steel wire or plastic straps to bind the compressed block into shape. After tying, the bale is ejected from the machine.
4. Continuous Operation and Automation
The “continuous” nature of the continuous metal baler allows it to operate without interruption. With an automated control system, the machine can continuously carry out the functions of loading, compressing, tying, and ejecting, greatly enhancing production efficiency.
Main Components
