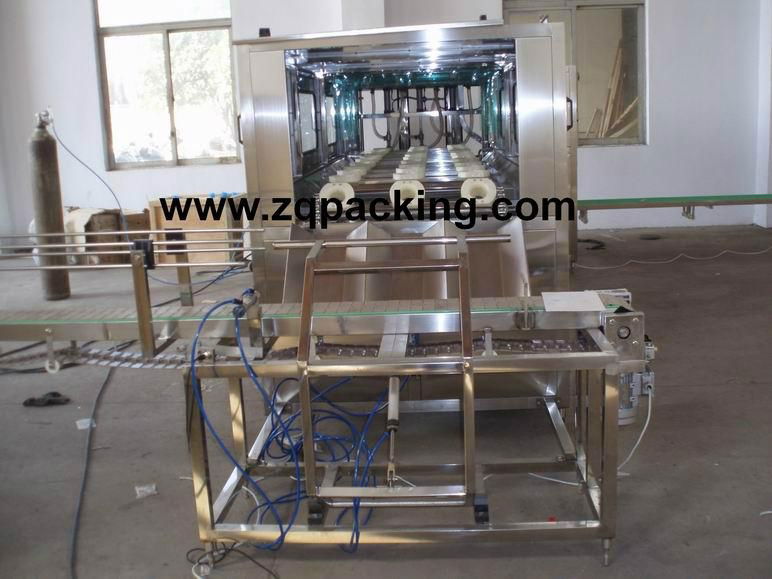

Monobloc Filling Machine for 5 Gallon
Two rows multi-stage washing and pure water filling machine, capping machine, automatic water filling plant.
It is the ideal equipment for mineral water, distilled water and purified water producing process. This machine composed with rinse filler and capper, Adopt cylinder cap press, with cap return function, cap sorter can keep one hour cap consummation, rinsing pressure will be displayed,
The main electrical parts adopt products with brand of SIEMENS and OMRON. Pneumatic parts adopt products with brand of AIRTAC. Both the inner and outer Shower nozzle for washing barrel adopts the special technology equipment from American Sprayer Company. The machine works reliably and efficiently based On the compact structure and high automatic technology. It is the fully automatic barreled water producing equipment combined with machine, electronic And pneumatic components. It is rotary type.
Specifications:
1) Automatic washing, filling, capping function in one unit
2) Three working stations available to wash bottles: Sterilized solutions
(chlorine)
3) Washing: Fresh water washing: Product water rinse
4) Stainless steel waterproof housing
5) PLC controlled system for easy operation and maintenance
6) Adjustable filling capacity
7) Widely used for pure water filling lines
8) Bottle filling capacity: 300-1200 bottles/hr
9) Cap specifications: 270 * 490 * 56mm
10) Compressed air capacity: P >= 0.6MPa
