Product Description
Type: Agile550 Modulator(JB-550)
Instruction of the product:

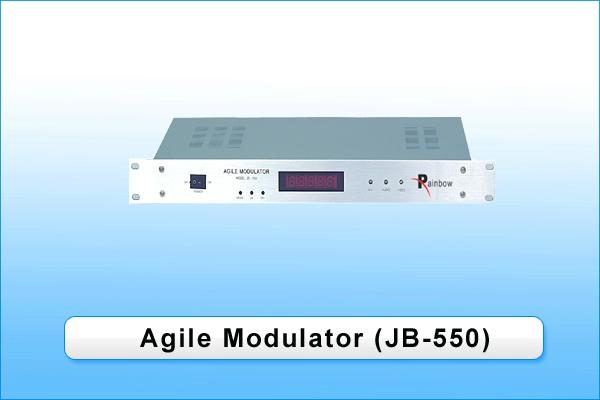

Agile550 Modulator (JB-550)
Features:
■ Five segments LED display output frequency, audio, V/A carrier power ratio, easy operate.
■ Adjustable Audio IF( 6.5/6.0/5.5/4.5 )
■ Frequency step 0.25MHz, random select frequency (47-550MHz).
■ Compatible PAL;NTSC and SECAM signal standards.
■ Automatic storage and retention after power off.
Specifications：
| Ltems |
Unit |
Parmeter |
| Output Frequency |
MHz |
47-550、 |
| RF Output Level |
dB |
98-118 |
| Output Impedance |
Ω |
75 |
| Spurious Rejection |
dB |
>60 |
| Frequency Adjusts Interval |
MHz |
0.25 |
| Flatness |
dB |
<1.0 |
| RF Return Loss |
dB |
>14 |
| V/A Carrier Power Ratio |
dB |
10-20 |
| Input Video |
Vp-p |
1 |
| Video Mod Depth |
% |
≥87.5 |
| Audio carrier |
MHz |
6.5/6.0/5.5/4.5Available |
| Adjustable Audio IF |
% |
1.5 |
| Power Suppiy |
AC |
AC180-240 |
| Power Consumption |
W |
15 |
| Operating Temperature |
℃ |
0-40 |
| Dimensions |
MM |
483*205*45 |
| Weight |
KGS |
2.5 |
| Payment Terms: | TT / LC / DP / DA /Western Union |
| |
Product Image
Img 1
Img 2
