Product Description
I. Brief introduction:

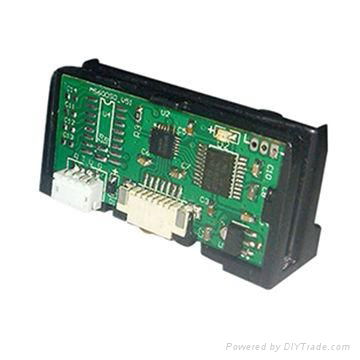

MSR43 serial products are manual swipe card reader, adopting high integrated magnetic card decoding chip.They have small electricity consumption and strong interference resistance.They comply with ISO-78117812magnetic card decoding standard completely to decode data in each track into RDP,RCP and CLS signal foroutput. Exquisite magnetic installation structure and precise track position makes card reading MOre stable andreliable, which is our patented technology.
II. Applications
Magnetic stripe card reader.
POS Keyboard.
Security Control.
CAT(card authorization terminal ).
III. MOdel No..
|
|
IV. Technical Feature:
1) Adopting arm suspension type magnetic head assembly method enables machine with softelasticity and good hand feel. Elasticity will not change in 10,000,000 times, which greatlyincreases life span of magnetic head.
2) Installing magnetic head in the magnetic head box makes track position of magnetic head MOreprecise to ensure success card reading rate, and appearance of product looks MOre beautiful.
3) Specific integrated circuits guarantee AMP 15% of the card can work properly.Dual-track static current of the whole machine is below 4mA/5V.Strong interference resistance.
4) Precise electric circuit disposition can read high-co magnetic card at 4000Oe completely.
5) Magnetic head adopts platinum manganese alloy material, which makes it life span over 800,000times
V. Work Environment:
|
Subject |
Specification |
|
Work temperature and humidity |
0 - 60C, 20 - 90% RH |
|
Storage temperature and humidity |
-30 to 70C , less than 95% RH |
|
Vibration |
Amplitude 2mm , 2 G , 10-55Hz/min in x,y,z direction |
|
Impact resistance |
UP TO 30 G,11 msec |
VI. Technical data and Specification
6.1 DimensiDimension and weight
|
Length(mm) |
Width(mm) |
Height |
Weight(g)
|
|
43 |
16 |
22.5 |
45 |
6.2 Specification
|
Track Standard |
Comply with ISO7811standard |
||
|
Decoding method |
F2F (FM) |
||
|
Card reading Density |
210 BPI |
75 BPI |
210 BPI |
|
Card reading Data bit |
1 track 79 |
Characters(7-bit) (7- bit) |
3 track 107 characters(5-bit) |
|
Card thickness |
0.2~0.84 mm |
||
|
Suitable Voltage Static current |
DC2.7V~DC5.5V 4mA/5V |
||
|
Output ripple voltage |
Less than 50mVp-p |
||
|
Track reading width |
1.5mm |
||
|
Operation speed |
15 - 120 cm/sec (6-50inch/sec) |
||
|
Magnetic head life span |
Over 800,000 times |
||
|
Error rate |
Lower than 0.5% |
||
|
Insulation resistance |
10M |
||
|
Interface |
TTL |
||
