BY800,1000 Chocolate Coating Machine
Product Description
BY800/1000 Chocolate Coating Machine
Product Description
Chocolate coating means that spray the hot chocolate paste into the rotary coating pan, so that the paste can cover the chocolate core evenly. When the temperature of chocolate paste begin decline, the surface of core will form a thin layer. Repeated operation in order to make thin layer thickening, when the thickness and weight of product meet the requirements, then begin polishing, so that the surface of chocolate is smooth and bright.
1. The ambient temperature of coating should be between 15-18º C, the relative humidity 45~55%, which will make the core more hard, and the oil of core will not dialysis to the surface.
2. Chocolate paste should be insulation, maintain the temperature between 35~38º C and do not need to regulate the temperature.
3. The rotary speed of coating pan should be between 24~30rpm, the speed should not too fast.
4. The temperature of cold wind should not exceed 18º C during coating, 8~13º C during polishing, should not exceed 13º C
5. The adjustable ventilation tube installation should be equipped with the coating pan.
6. There is a series of circular ribs in the polishing pan, which is good for the flipping of product, reducing the polishing time.
Chocolate coating device including: Agitator tank, automatic spray infusion device(including nozzle and feeder), coating machine, spray gun, heating equipment, main cooling trough, air temperature and humidity regulator, cool air pipeline loop device, etc.
This machine has advantages of simple structure, easy operation, and smooth surface. It can save accessories and it is also easy to maintain. This machine is the ideal machine for tablet film sugar coating. It is also the ideal machine for chocolate coating and others.
|
Model
|
BY800
|
BY1000
|
BY1250
|
|
Dia. of coating pan(mm)
|
800
|
1000
|
1250
|
|
Rotary speed of coating Pan(rpm)
|
28
|
28
|
28
|
|
Main motor (KW)
|
1.1
|
1.1
|
2.2
|
|
Electric heating power(W)
|
1000
|
1000
|
4kw
|
|
Drum wind motor power(W)
|
250
|
250
|
370
|
|
Production capacity(kg/batch)
|
30-50
|
50-70
|
80-150
|
|
Weight(kg)
|
240
|
250
|
500kg
|
|
Overall size(L*W*H) (mm)
|
925*900*1500
|
1100*1100*1600
|
1290*1460*1720
|
|
Outer heating power(W)
|
1000*2
|
1000*2
|
|
Shanghai Sunhang Pharmaceutical Machinery Co. Ltd
Exp. Room1101, Building No.8, Lane875 Huanlin Rd(E), Shanghai, China.(200123)
Tel:+8621-50656741; +8621- 50656742
Fax:+8621-50656754
E-mail: shpm88@sunhang.com
shpm@pharmpackage.com
Website: www.sunhang.com
Website: www.pharmpackage.com
MSN: shpm68@hotmail.com
Skype: shpm168

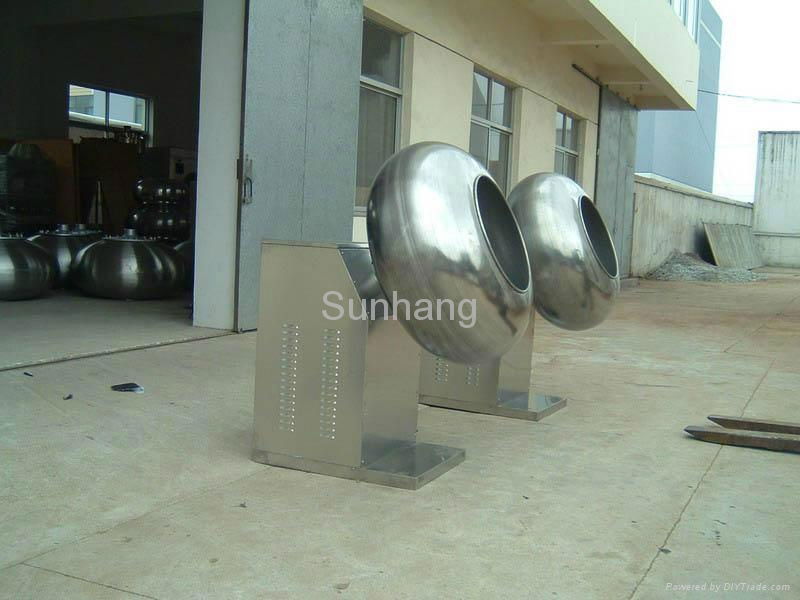

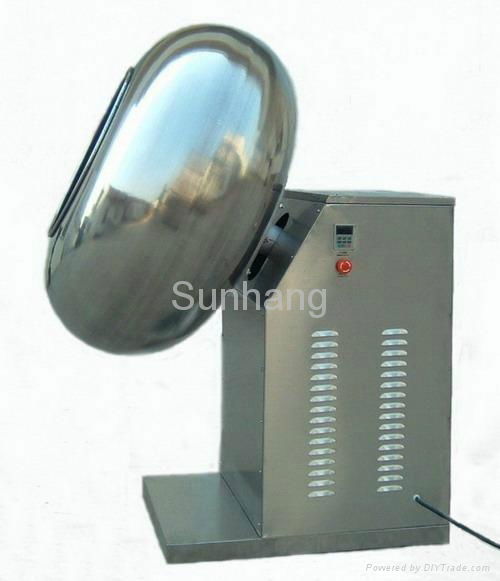

Product Image
