Product Description
- Material: zinc-alloy
- Finish: satin gold
- Long panel design with unique metal-inlay workmanship, classic shape and special tailor for high-grade hotels
- Free structure handle, anti-violence opening, thicker ordinary ones in market, thickness 7.5mm, width 130mm with curved end
- Plastic cover specially treated for anti-scratch by card-swiping
- 2mm built-in steel panel to reinforce solidity of lock and reliable anti-burglar
- American standard five-latch mortise with anti-pick function
- Specification:
- Power supply: 4.7 to 6.5V DC, 4 x 1.5V
- Battery lifespan: >15,000 times
- Quiescent current: <27μA
- Working current: <500mA, single run 0.2 seconds
- Environment temperature: -25 to +60°C
- Working humidity: 15 to 95% RH
- Inductive distance: 0 to 5cm
- Inductive sensitivity: <0.2 second, 100% effective and accurate to read card
- Anti-static: >15,000V (instant)
- Applicable chip:
- Mifare-1: 13.56MHz
- Temic-5557: 125kHz
- Frequency: 125kHz to 13.56MHz
- Effective time of opening lock: 6 seconds
- Alarm point of low voltage (beep and red light): 4.7V, another 100 times for opening afterwards
- Lock-fail warning: door in un-latched state and beeps after 5 seconds
- Data query: audit trail records last 992 unlocking transactions, includes mechanical one
- Mechanical key: standard mechanical keys over-ride to ensure door to be unlocked in emergency
- Software system: operation authority of all levels of operators can be set in system, meet 5 levels management
- Door thickness: 38 to 80mm (please specify thickness over 55mm)
- Packing:
- Quantity: 12 pieces/carton
- Carton dimensions: 70 x 39 x 32cm

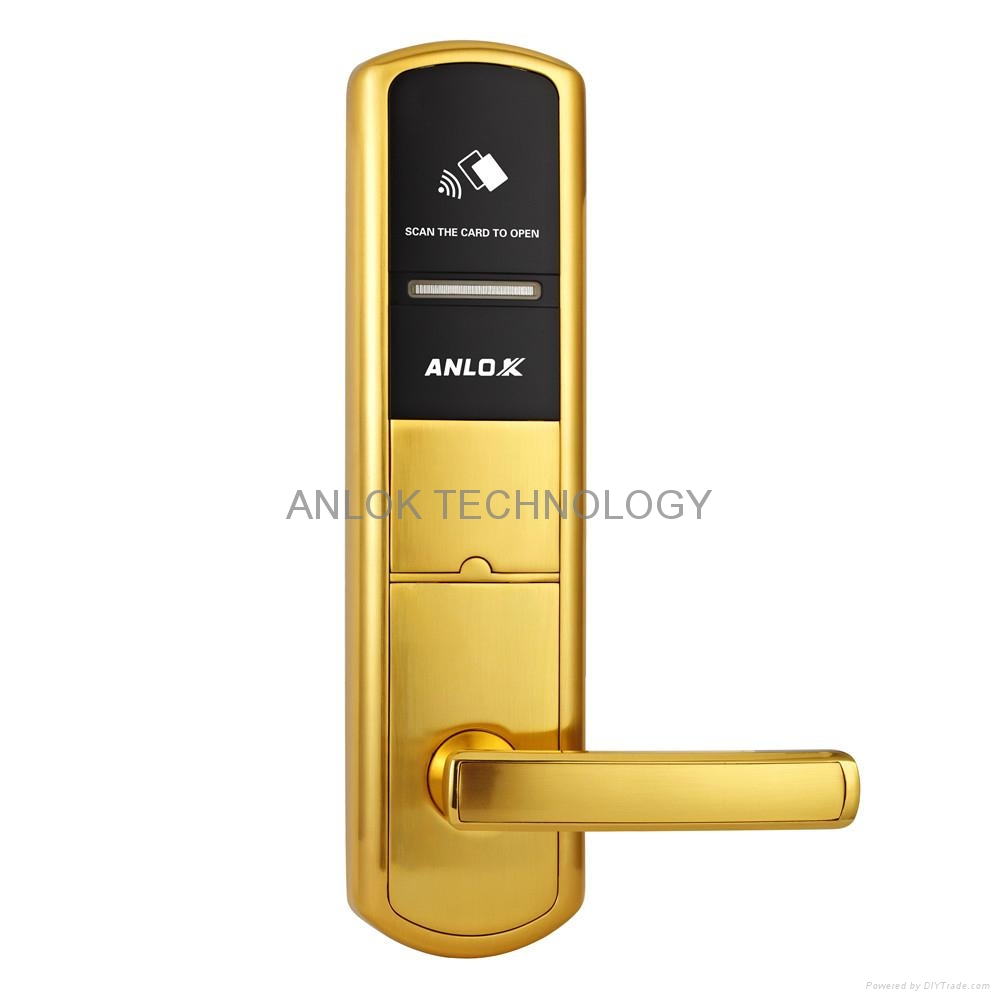

Product Image
